TDK 6.8nF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±10% , Through Hole
- RS Stock No.:
- 194-0609
- Mfr. Part No.:
- FG28X7R2A682KNT00
- Brand:
- TDK
140 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 10)
$0.32
(exc. GST)
$0.35
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | $0.32 | $3.20 |
| 20 - 40 | $0.311 | $3.11 |
| 50 + | $0.302 | $3.02 |
*price indicative
- RS Stock No.:
- 194-0609
- Mfr. Part No.:
- FG28X7R2A682KNT00
- Brand:
- TDK
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

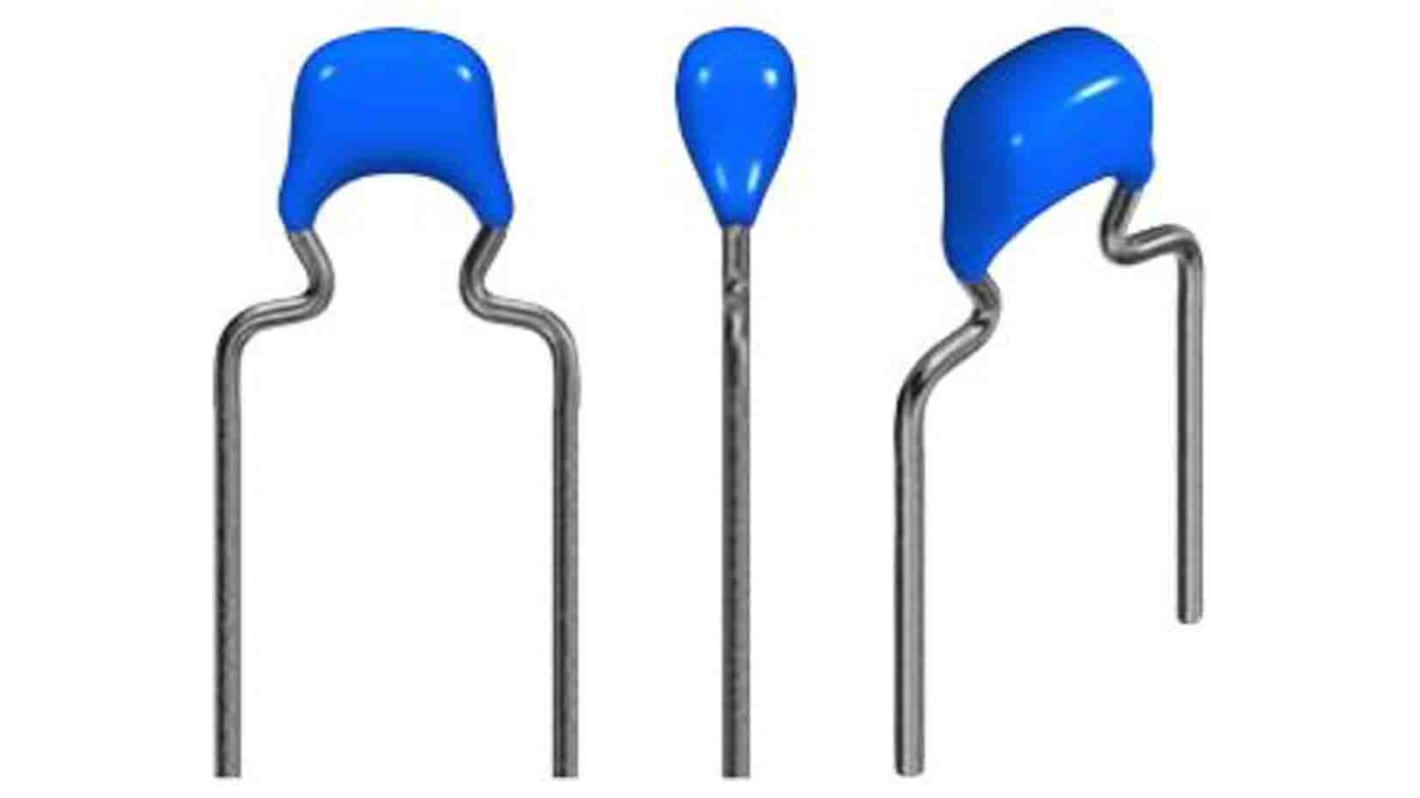

The TDKs FG series 6800pF multilayer ceramic capacitor has a dipped radial lead. It is widely used as bypass capacitors in switching power sources, smoothing capacitors, noise reduction, snubber circuits and PFC input filters.
Halogen free
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 6.8nF |
| Voltage | 100V dc |
| Package/Case | Radial |
| Mounting Type | Through Hole |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 4 x 5.5 x 2.5mm |
| Length | 4mm |
| Depth | 2.5mm |
| Height | 5.5mm |
| Series | FG |
| Maximum Operating Temperature | +125°C |
| Lead Spacing | 5 mm |
| Minimum Operating Temperature | -55°C |
