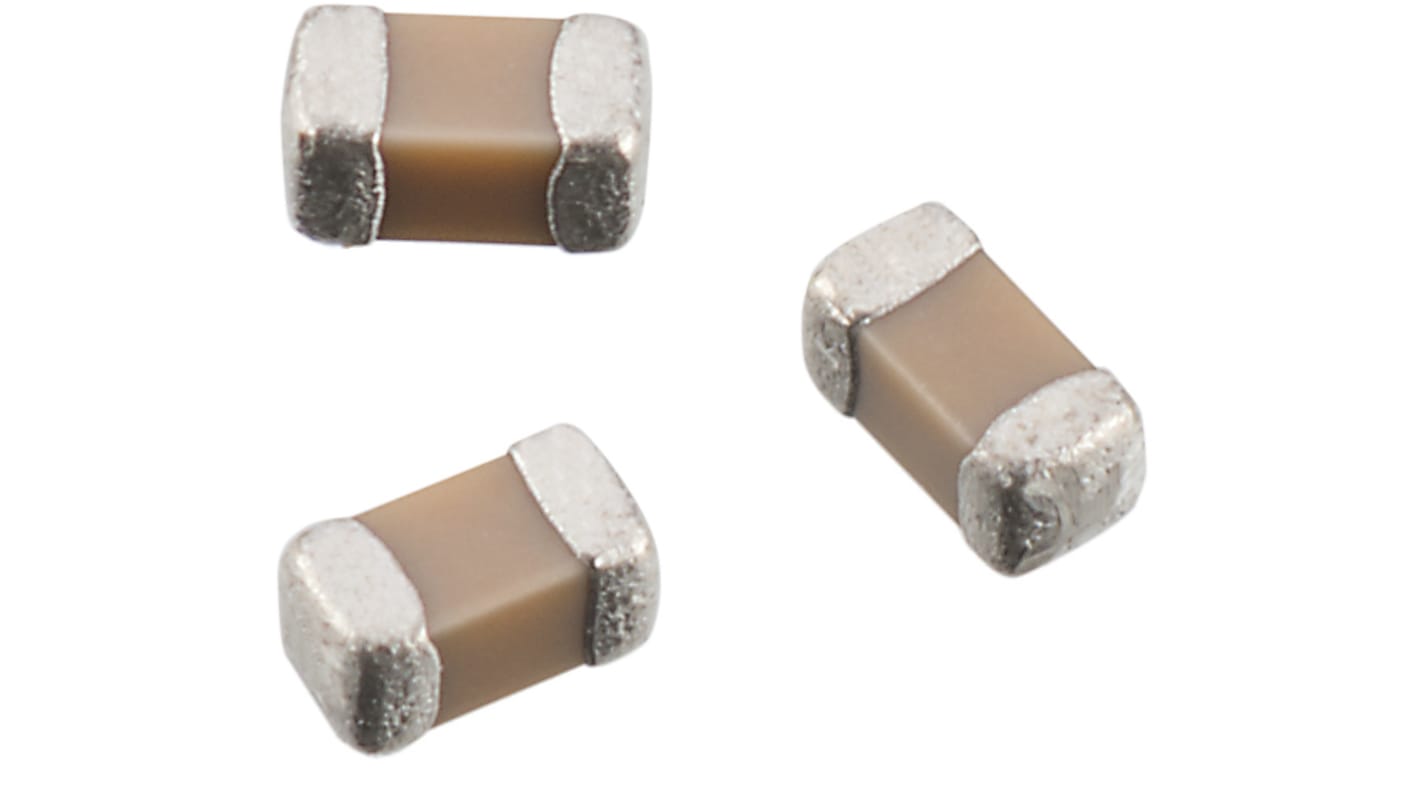

Wurth Elektronik 220nF MLCC, 50V dc V, ±10% , SMD
- RS Stock No.:
- 185-5699
- Mfr. Part No.:
- 885382207008
- Brand:
- Wurth Elektronik
826 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 25)
$0.385
(exc. GST)
$0.423
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | $0.385 | $9.625 |
*price indicative
- RS Stock No.:
- 185-5699
- Mfr. Part No.:
- 885382207008
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Product series with high absorbtion of mechanical stress
Mounting style: SMT-Chip
Capacitance range: 220 pF - 2.2 μF
Temperature Coefficient: ± 15 %
Voltage range (UR): 16 V(DC) - 2 kV(DC)
Operating temperature: -55 °C up to + 125 °C
Sizes: 0603 / 0805 / 1206 / 1210
Termination: Ag-Polymer/Ni/Sn
Recommended soldering: Reflow soldering
Wave soldering (only valid for the thickness ≤0.85 mm)
Applications
Application with high mechanical stress
Power supply
Lighting
Mounting style: SMT-Chip
Capacitance range: 220 pF - 2.2 μF
Temperature Coefficient: ± 15 %
Voltage range (UR): 16 V(DC) - 2 kV(DC)
Operating temperature: -55 °C up to + 125 °C
Sizes: 0603 / 0805 / 1206 / 1210
Termination: Ag-Polymer/Ni/Sn
Recommended soldering: Reflow soldering
Wave soldering (only valid for the thickness ≤0.85 mm)
Applications
Application with high mechanical stress
Power supply
Lighting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 220nF |
| Voltage | 50V dc |
| Package/Case | 0805 (2012M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 2 x 1.25 x 1.25mm |
| Length | 2mm |
| Depth | 1.25mm |
| Height | 1.25mm |
| Series | WCAP-CSST |
| Terminal Type | Solder |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Suppression Class | Class II |
