TDK C type 0603 series

Professional range of TDK multilayer ceramic chip capacitors from the C series. Suitable for high frequency and high density type power supplies due to low ESR and excellent frequency characteristics.

Features and Benefits:

High capacitance through precision technologies that enable the use of multiple thinner ceramic dielectric layers
A monolithic structure ensures superior mechanical strength and reliability
Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values
Low self-heating and high ripple resistance due to low ESR

Applications:

Commercial Grade for general applications including
General electronic equipment; Mobile communication equipment; Power supply circuit; Office automation equipment; TV, LED displays; Servers, PCs, Notebooks, Tablets.

Units	Per unit	Per Reel**
4000 - 4000	$0.12	$480.00
8000 - 12000	$0.117	$468.00
16000 +	$0.115	$460.00

Select all	Attribute	Value
	Brand	TDK
	Capacitance	10µF
	Voltage	6.3V dc
	Package/Case	0603 (1608M)
	Mounting Type	Surface Mount
	Dielectric	X7S
	Tolerance	±20%
	Dimensions	1.6 x 0.8 x 0.8mm
	Length	1.6mm
	Depth	0.8mm
	Height	0.8mm
	Series	C
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+125°C
	Terminal Type	Surface Mount

	Select all
	Brand TDK
	Capacitance 10µF
	Voltage 6.3V dc
	Package/Case 0603 (1608M)
	Mounting Type Surface Mount
	Dielectric X7S
	Tolerance ±20%
	Dimensions 1.6 x 0.8 x 0.8mm
	Length 1.6mm
	Depth 0.8mm
	Height 0.8mm
	Series C
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +125°C
	Terminal Type Surface Mount

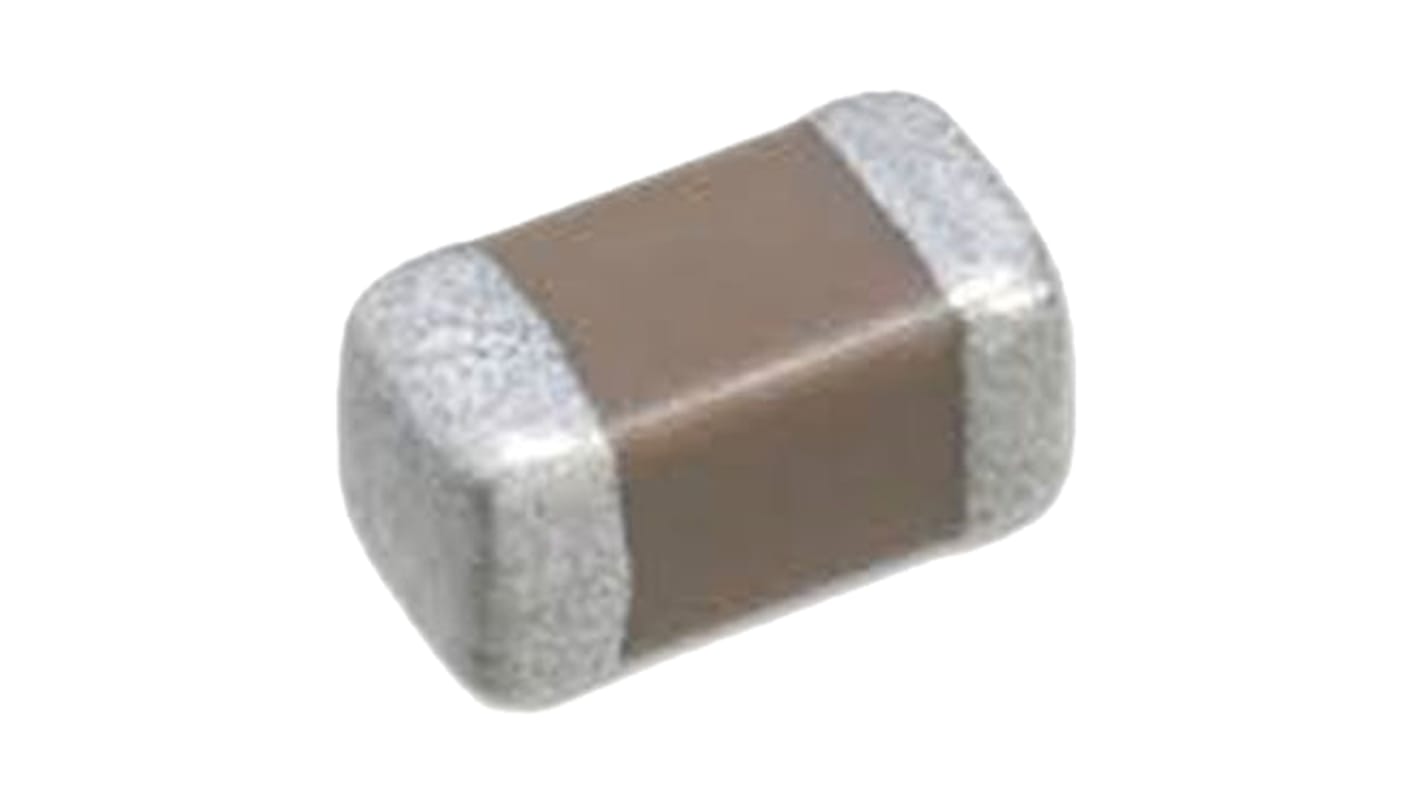

TDK 10μF Multilayer Ceramic Capacitor MLCC, 6.3V dc V, ±20% , SMD
