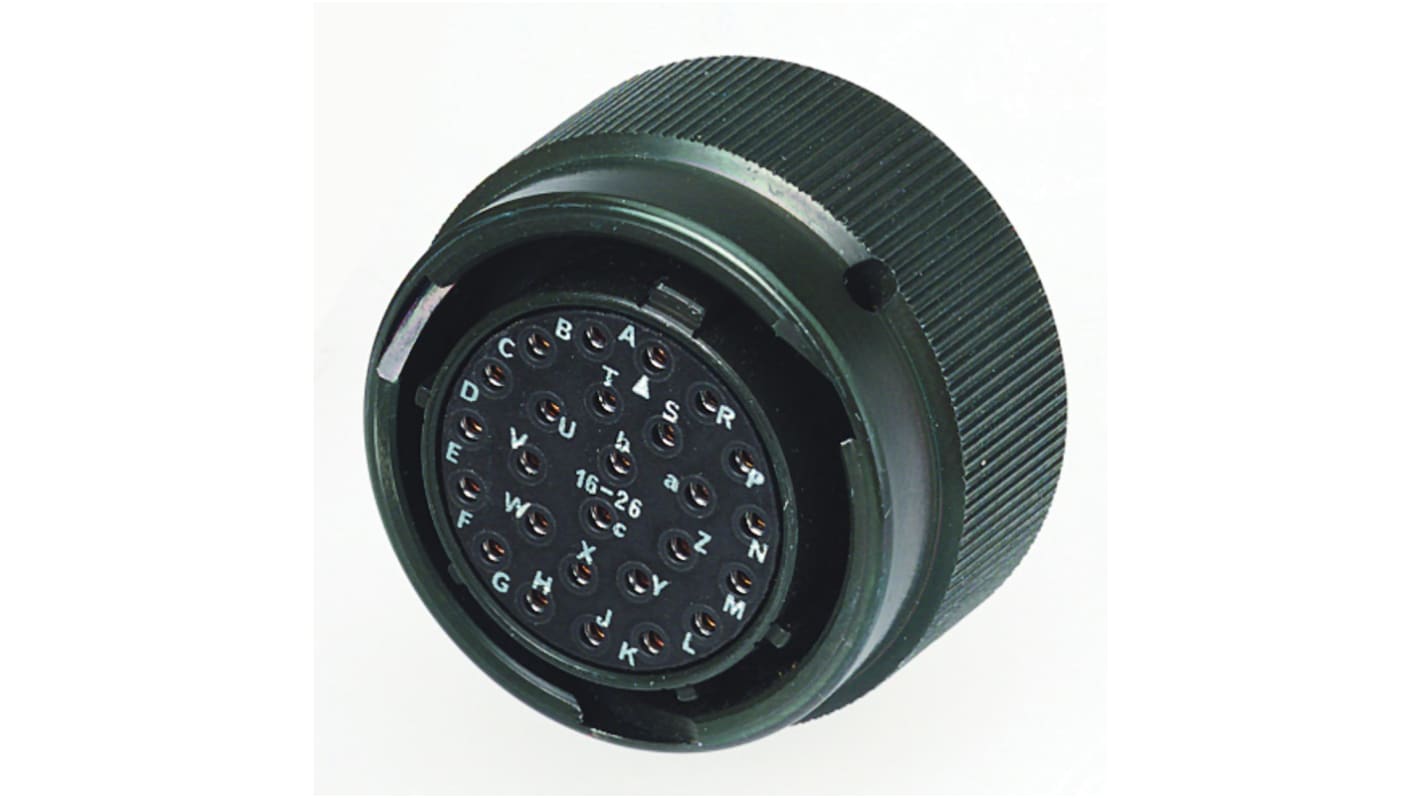

Amphenol Industrial, MS Box Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 1, Bayonet,
- RS Stock No.:
- 200-5380
- Mfr. Part No.:
- MS3102E18-1P
- Brand:
- Amphenol Industrial
11 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$26.40
(exc. GST)
$29.04
(inc. GST)
| Units | Per unit |
| 1 - 9 | $26.40 |
| 10 - 49 | $25.81 |
| 50 + | $25.24 |
- RS Stock No.:
- 200-5380
- Mfr. Part No.:
- MS3102E18-1P
- Brand:
- Amphenol Industrial
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The Amphenol MS-E connectors meet the latest performance requirements of MIL-DTL-5015. These connectors represent well-proven electrical capability at an acceptable cost for most equipment where durability is important. Class E connectors are recommended for conditions where vibration, moisture, pressure and/or temperature are extreme. Strain relief is supplied on most shell sizes.
Operating voltage to 3000 VAC (RMS) at sea level
305 contact arrangements from 1 to 104 circuits
Solder or crimp contacts, sizes 16-0 accepting 22-0 AWG
305 contact arrangements from 1 to 104 circuits
Solder or crimp contacts, sizes 16-0 accepting 22-0 AWG
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Contact Gender | Male |
| Current Rating | 13A |
| Voltage Rating | 700/250 V |
| Shell Size | 1 |
| Mounting Type | Box Mount |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Body Orientation | Straight |
| Series | MS |
