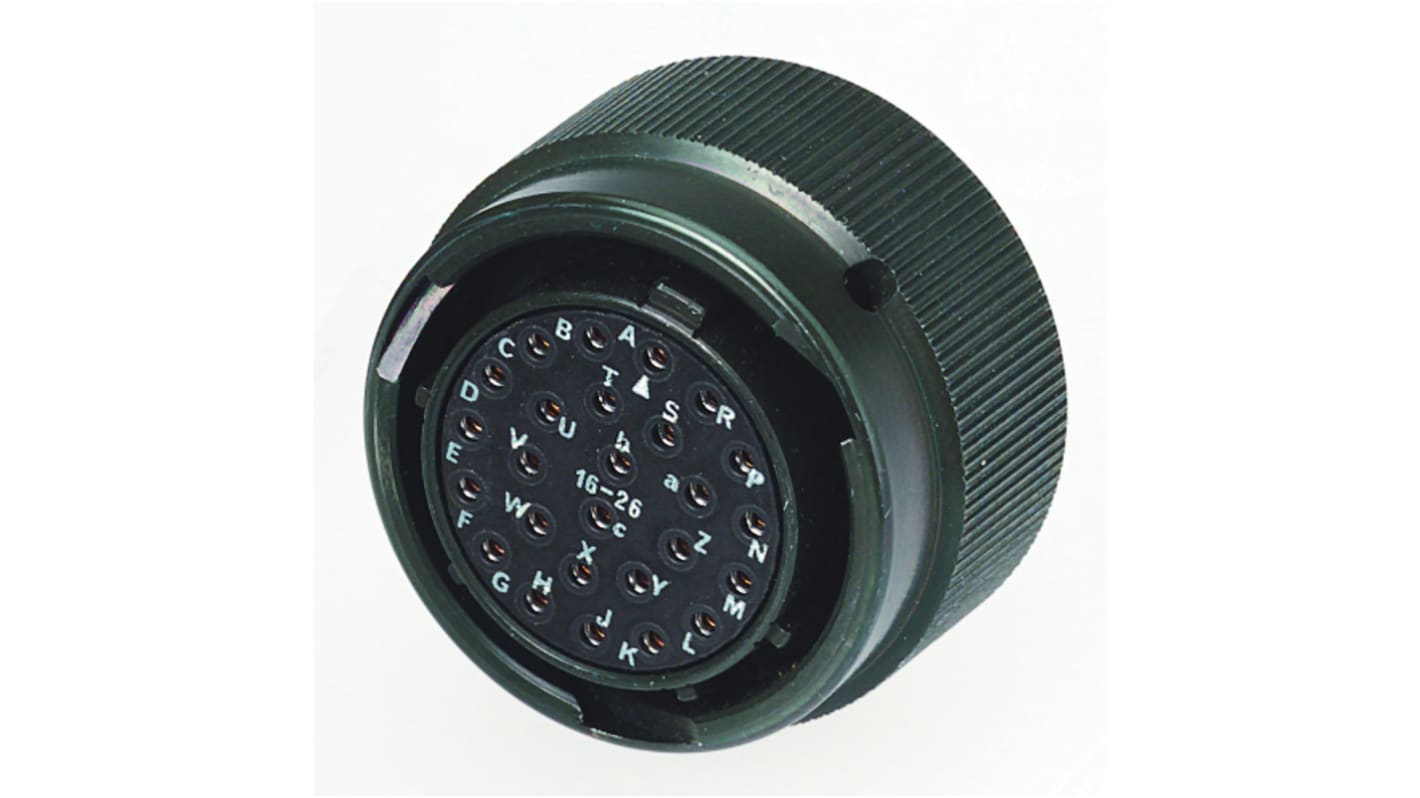

Amphenol, MS Box Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 5, Bayonet, MIL-DTL-5015
- RS Stock No.:
- 200-5359
- Mfr. Part No.:
- MS3102A14S-5P
- Brand:
- Amphenol Industrial
7 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$17.90
(exc. GST)
$19.69
(inc. GST)
| Units | Per unit |
| 1 - 9 | $17.90 |
| 10 - 49 | $17.36 |
| 50 + | $16.84 |
- RS Stock No.:
- 200-5359
- Mfr. Part No.:
- MS3102A14S-5P
- Brand:
- Amphenol Industrial
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The Amphenol MS-A connectors meet the latest performance requirements of MIL-DTL-5015. These connectors represent well-proven electrical capability at an acceptable cost for most equipment where durability is important. Class A applications include communications equipment, computers and shipboard installations where mechanical forces and physical parameters are not subject to extreme or rapid environmental changes.
Operating voltage to 3000 VAC (RMS) at sea level
305 contact arrangements from 1 to 104 circuits
Solder or crimp contacts, sizes 16-0 accepting 22-0 AWG
305 contact arrangements from 1 to 104 circuits
Solder or crimp contacts, sizes 16-0 accepting 22-0 AWG
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Contact Gender | Male |
| Current Rating | 13A |
| Voltage Rating | 250 V |
| Shell Size | 5 |
| Mounting Type | Box Mount |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Body Orientation | Straight |
| Series | MS |
