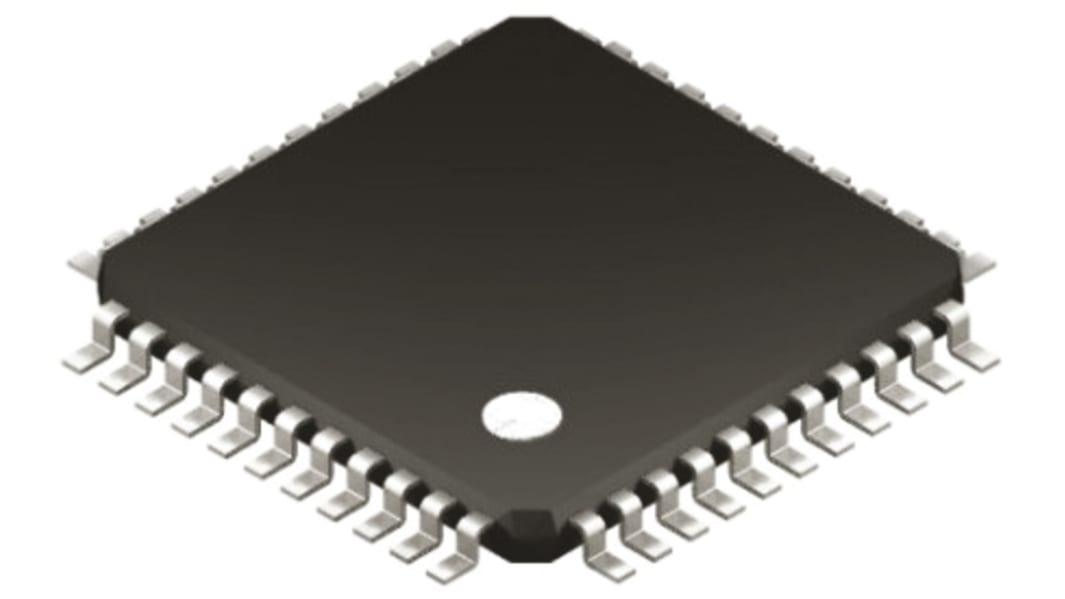

Microchip PIC18F46K80-E/PT, 8bit PIC Microcontroller, PIC18F, 64MHz, 64 kB Flash, 44-Pin TQFP
- RS Stock No.:
- 823-1072
- Mfr. Part No.:
- PIC18F46K80-E/PT
- Brand:
- Microchip
796 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 2)
$7.575
(exc. GST)
$8.333
(inc. GST)
Units | Per unit | Per Pack* |
---|---|---|
2 - 38 | $7.575 | $15.15 |
40 - 78 | $7.395 | $14.79 |
80 + | $7.305 | $14.61 |
*price indicative
- RS Stock No.:
- 823-1072
- Mfr. Part No.:
- PIC18F46K80-E/PT
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
PIC18F2xK80/4xK80/6xK80 8-Bit Flash Microcontrollers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | PIC18F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 3.648 kB |
USB Channels | 0 |
Number of PWM Units | 1, 4 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Number of USART Channels | 2 |
Number of UART Channels | 2 |
Number of I2C Channels | 1 |
Number of CAN Channels | 1 |
Maximum Number of Ethernet Channels | 0 |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
Number of ADC Units | 1 |
Pulse Width Modulation | 1 (ECCP) (10 bit), 4 (CCP) (10 bit) |
Program Memory Type | Flash |
Length | 10mm |
Number of PCI Channels | 0 |
Dimensions | 10 x 10 x 1.05mm |
Width | 10mm |
Number of LIN Channels | 0 |
Height | 1.05mm |
ADCs | 11 x 12 bit |
Maximum Operating Temperature | +125 °C |
Number of Ethernet Channels | 0 |
