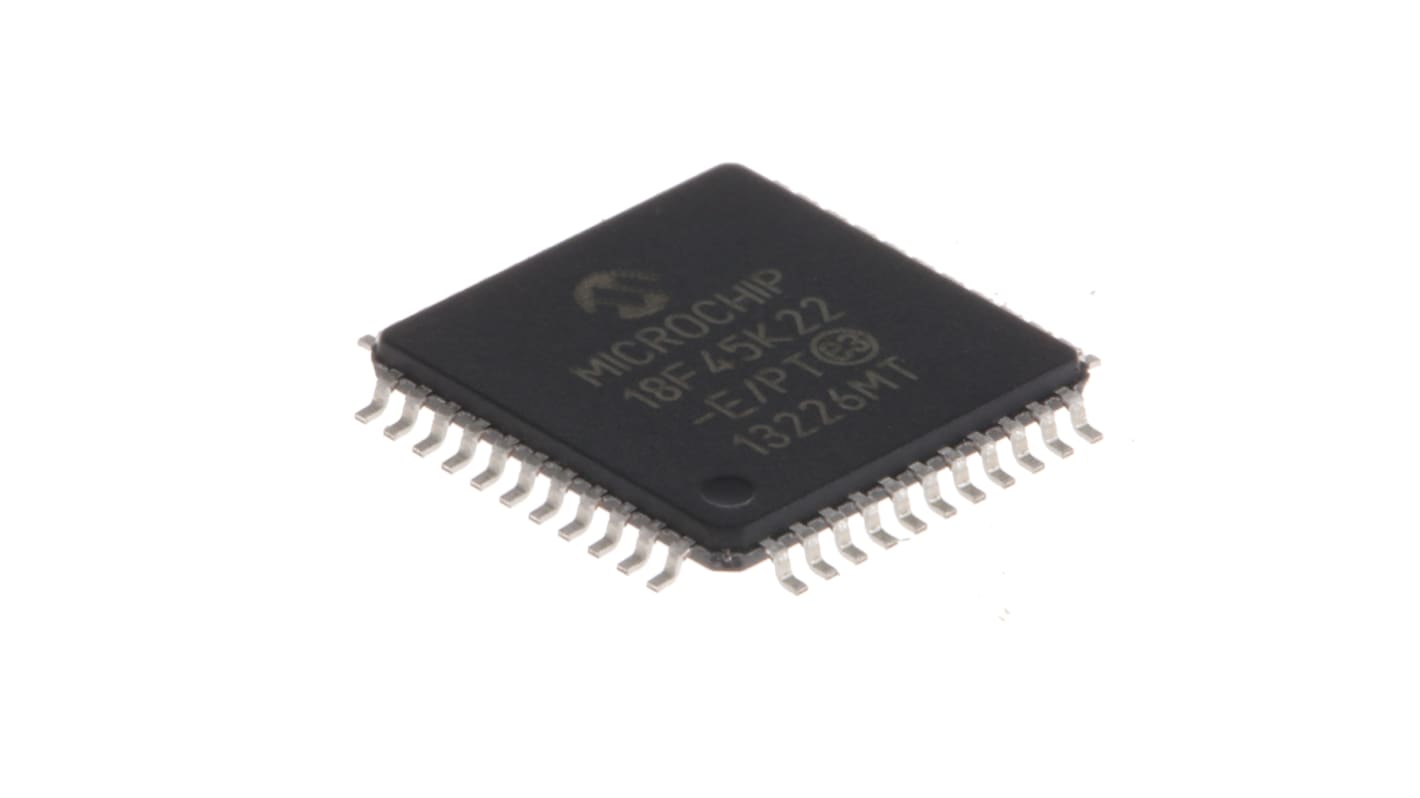

    Microchip PIC18F45K22-E/PT, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 44-Pin TQFP

    View this category
    Bulk discount available

    Subtotal (1 unit)**

    $5.54

    (exc. GST)

    $6.09

    (inc. GST)

    Add to Basket
    Select or type quantity
    22 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    1 - 39$5.54
    40 - 79$5.53
    80 +$5.40

    **price indicative

    Packaging Options:
    RS Stock No.:
    704-7731
    Mfr. Part No.:
    PIC18F45K22-E/PT
    Brand:
    Microchip
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Microchip

    Family Name

    PIC18F

    Package Type

    TQFP

    Mounting Type

    Surface Mount

    Pin Count

    44

    Device Core

    PIC

    Data Bus Width

    8bit

    Program Memory Size

    32.768 kB, 256 B

    Maximum Frequency

    16MHz

    RAM Size

    1.536 kB

    USB Channels

    0

    Number of PWM Units

    5

    Number of SPI Channels

    2

    Number of UART Channels

    0

    Number of I2C Channels

    2

    Number of USART Channels

    2

    Typical Operating Supply Voltage

    2.3 → 5.5 V

    Number of CAN Channels

    0

    Number of ADC Units

    1

    Length

    10mm

    ADCs

    30 x 10 bit

    Instruction Set Architecture

    RISC

    Width

    10mm

    Pulse Width Modulation

    1(ECCP Half Bridge), 2(CCP), 2(ECCP Full Bridge)

    Minimum Operating Temperature

    -40 °C

    Dimensions

    10 x 10 x 1.05mm

    Maximum Operating Temperature

    +125 °C

    Number of PCI Channels

    0

    Number of LIN Channels

    0

    Number of Ethernet Channels

    0

    Height

    1.05mm

    Program Memory Type

    Flash
