Microchip PIC16LF628A-I/SO, 8bit PIC Microcontroller, PIC16F, 20MHz, 2048 x 14 words, 128 B Flash, 18-Pin SOIC
- RS Stock No.:
- 666-8750
- Mfr. Part No.:
- PIC16LF628A-I/SO
- Brand:
- Microchip

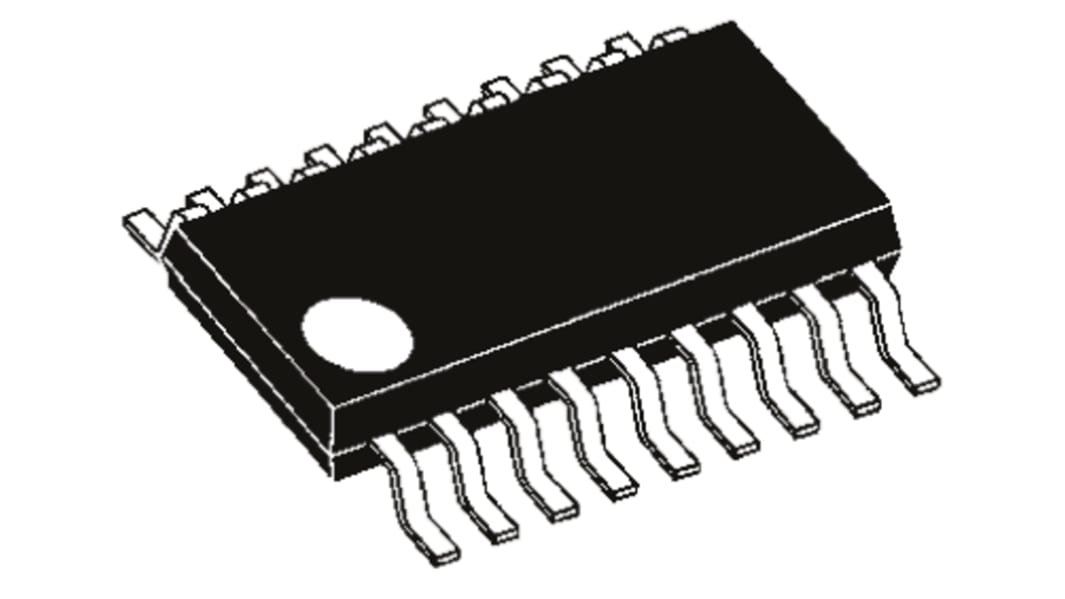

This image is representative of the product range
Subtotal (1 pack of 2 units)**
$11.00
(exc. GST)
$12.10
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Pack** |
|---|---|---|
| 2 - 10 | $5.50 | $11.00 |
| 12 - 20 | $5.37 | $10.74 |
| 22 + | $5.305 | $10.61 |
**price indicative
- RS Stock No.:
- 666-8750
- Mfr. Part No.:
- PIC16LF628A-I/SO
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC16F | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 18 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 2048 x 14 words, 128 B | |
| Maximum Frequency | 20MHz | |
| RAM Size | 224 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 10 bit | |
| Number of SPI Channels | 0 | |
| Typical Operating Supply Voltage | 2 → 5.5 V | |
| Number of UART Channels | 0 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 1 | |
| Number of I2C Channels | 0 | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Height | 2.35mm | |
| Maximum Operating Temperature | +85 °C | |
| Length | 11.55mm | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| Dimensions | 11.55 x 7.5 x 2.35mm | |
| Width | 7.5mm | |
| Pulse Width Modulation | 1(10 bit) (CCP) | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name PIC16F | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 18 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 2048 x 14 words, 128 B | ||
Maximum Frequency 20MHz | ||
RAM Size 224 B | ||
USB Channels 0 | ||
Number of PWM Units 1 x 10 bit | ||
Number of SPI Channels 0 | ||
Typical Operating Supply Voltage 2 → 5.5 V | ||
Number of UART Channels 0 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 1 | ||
Number of I2C Channels 0 | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Height 2.35mm | ||
Maximum Operating Temperature +85 °C | ||
Length 11.55mm | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
Dimensions 11.55 x 7.5 x 2.35mm | ||
Width 7.5mm | ||
Pulse Width Modulation 1(10 bit) (CCP) | ||
Minimum Operating Temperature -40 °C | ||
