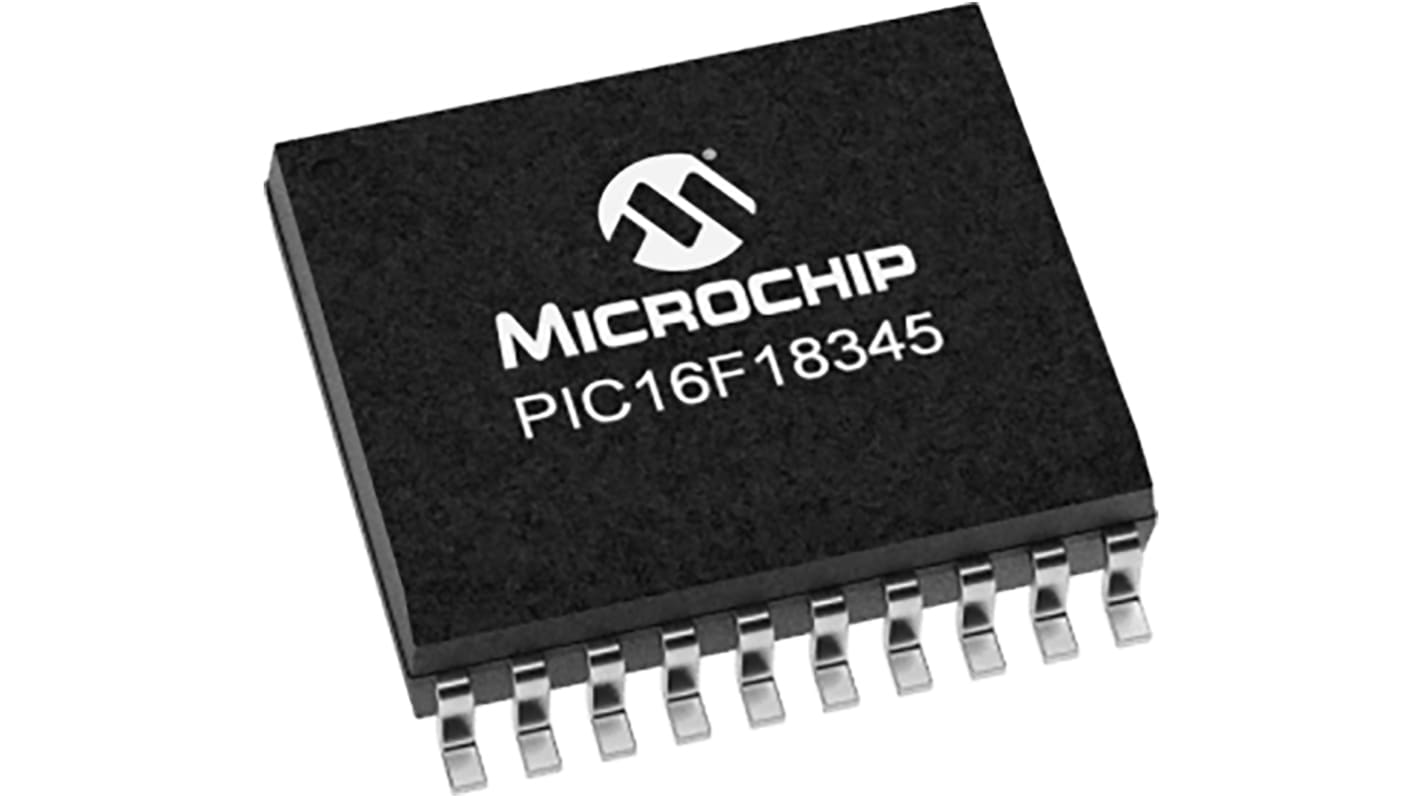

Microchip PIC16F18345-I/SO, 8bit PIC Microcontroller, PIC16F, 32MHz, 14 kB Flash, 20-Pin SOIC
- RS Stock No.:
- 177-2106
- Mfr. Part No.:
- PIC16F18345-I/SO
- Brand:
- Microchip
170 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Tube of 38)
$2.181
(exc. GST)
$2.399
(inc. GST)
| Units | Per unit | Per Tube* |
| 38 - 38 | $2.181 | $82.878 |
| 76 - 342 | $2.108 | $80.104 |
| 380 + | $2.039 | $77.482 |
| *price indicative | ||
- RS Stock No.:
- 177-2106
- Mfr. Part No.:
- PIC16F18345-I/SO
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
PIC16F18344 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
4x Capture, Compare, PWM (CCP)
2x Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
4x Configurable Logic Controller (CLC)
17 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparator
SPI/I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
4x 8-bit Timers (TMR0/TMR2)
3x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
4x Capture, Compare, PWM (CCP)
2x Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
4x Configurable Logic Controller (CLC)
17 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparator
SPI/I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
4x 8-bit Timers (TMR0/TMR2)
3x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 2 |
| Number of UART Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of I2C Channels | 2 |
| Number of USART Channels | 1 |
| Number of CAN Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Maximum Operating Temperature | +85 °C |
| Length | 12.8mm |
| ADCs | 17 x 10 bit |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Dimensions | 12.8 x 7.5 x 2.35mm |
| Width | 7.5mm |
| Number of LIN Channels | 1 |
| Height | 2.35mm |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
