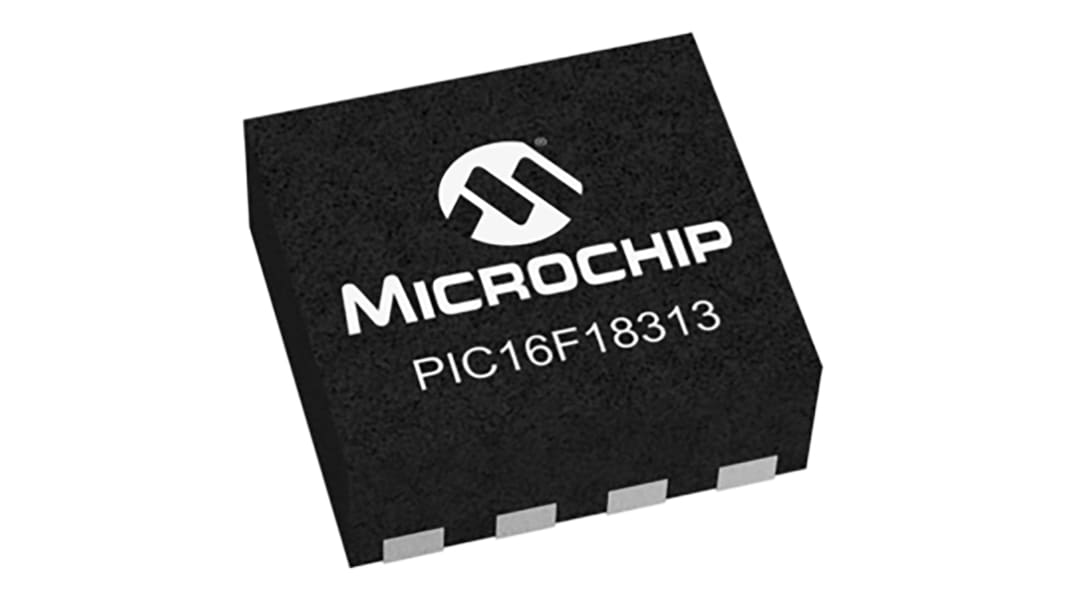

Microchip PIC16F18313-I/RF, 8bit PIC Microcontroller, PIC16F, 32MHz, 3.5 kB Flash, 8-Pin UDFN

RS Stock No.:: 177-2081
Mfr. Part No.:: PIC16F18313-I/RF
Brand:: Microchip

Microchip PIC16F18313-I/RF, 8bit PIC Microcontroller, PIC16F, 32MHz, 3.5 kB Flash, 8-Pin UDFN

620 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Tube of 120)

$1.369

(exc. GST)

$1.506

(inc. GST)

Units	Per unit	Per Tube*
120 - 480	$1.369	$164.28
600 +	$1.232	$147.84

*price indicative

RS Stock No.:: 177-2081
Mfr. Part No.:: PIC16F18313-I/RF
Brand:: Microchip

Datasheet

Attribute	Value
Family Name	PIC16F
Package Type	UDFN
Mounting Type	Surface Mount
Pin Count	8
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	3.5 kB
Maximum Frequency	32MHz
RAM Size	256 B
USB Channels	0
Number of PWM Units	1 x 10 bit
Number of SPI Channels	1
Number of I2C Channels	1
Number of UART Channels	1
Typical Operating Supply Voltage	5.5 (Maximum) V
Number of USART Channels	1
Number of CAN Channels	0
Instruction Set Architecture	RISC
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
ADCs	5 x 10 bit
Maximum Operating Temperature	+85 °C
Length	3mm
Number of ADC Units	1
Number of PCI Channels	0
Dimensions	3 x 3 x 0.5mm
Height	0.5mm
Number of Ethernet Channels	0
Pulse Width Modulation	1 (2 x 10 bit)
Program Memory Type	Flash
Number of LIN Channels	1
Width	3mm

Microchip PIC16F18313-I/RF, 8bit PIC Microcontroller, PIC16F, 32MHz, 3.5 kB Flash, 8-Pin UDFN
