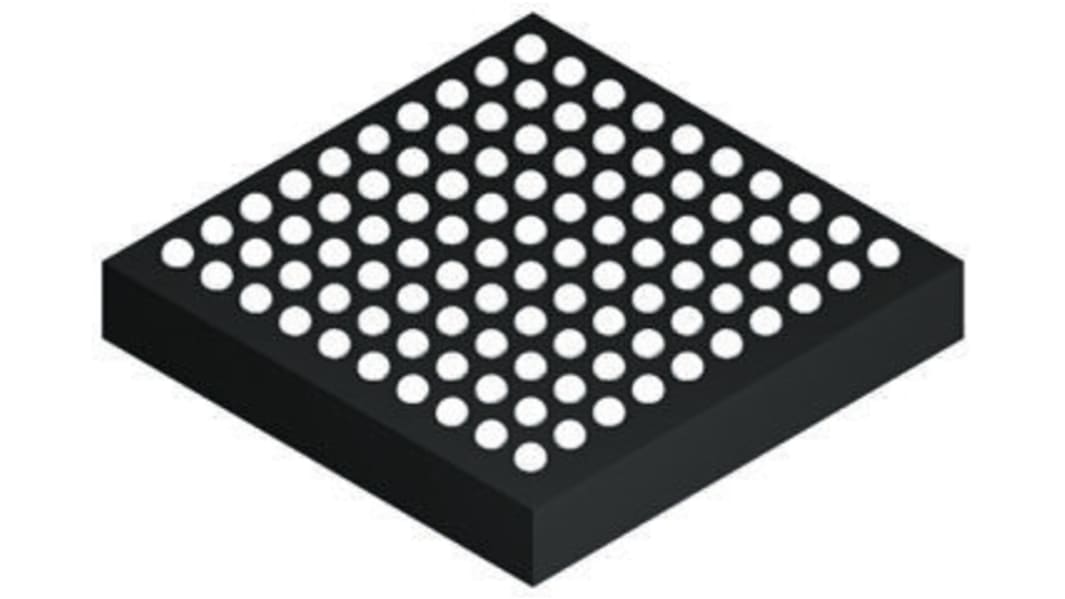

Name: STMicroelectronics STM32F103V8H6, 32bit ARM Cortex M3 Microcontroller, STM32F1, 72MHz, 64 kB Flash, 100-Pin LFBGA
Brand: STMicroelectronics
SKU: 168-7351
Price: 10.00 AUD
Availability: Discontinued

STM32F103 Series Microcontrollers, STMicroelectronics

STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.

32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.

Benefits
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility

Select all	Attribute	Value
	Brand	STMicroelectronics
	Family Name	STM32F1
	Package Type	LFBGA
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M3
	Data Bus Width	32bit
	Program Memory Size	64 kB
	Maximum Frequency	72MHz
	RAM Size	20 kB
	USB Channels	1 x Device
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	2
	Number of UART Channels	0
	Number of I2C Channels	2
	Typical Operating Supply Voltage	2 → 3.6 V
	Number of CAN Channels	1
	Number of USART Channels	3
	Pulse Width Modulation	1 (16 bit) (Motor Control)
	Dimensions	10.15 x 10.15 x 1.085mm
	Width	10.15mm
	Height	1.085mm
	Number of LIN Channels	0
	Number of Ethernet Channels	0
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	2
	Length	10.15mm
	ADCs	16 x 12 bit
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	RISC
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Number of PCI Channels	0
