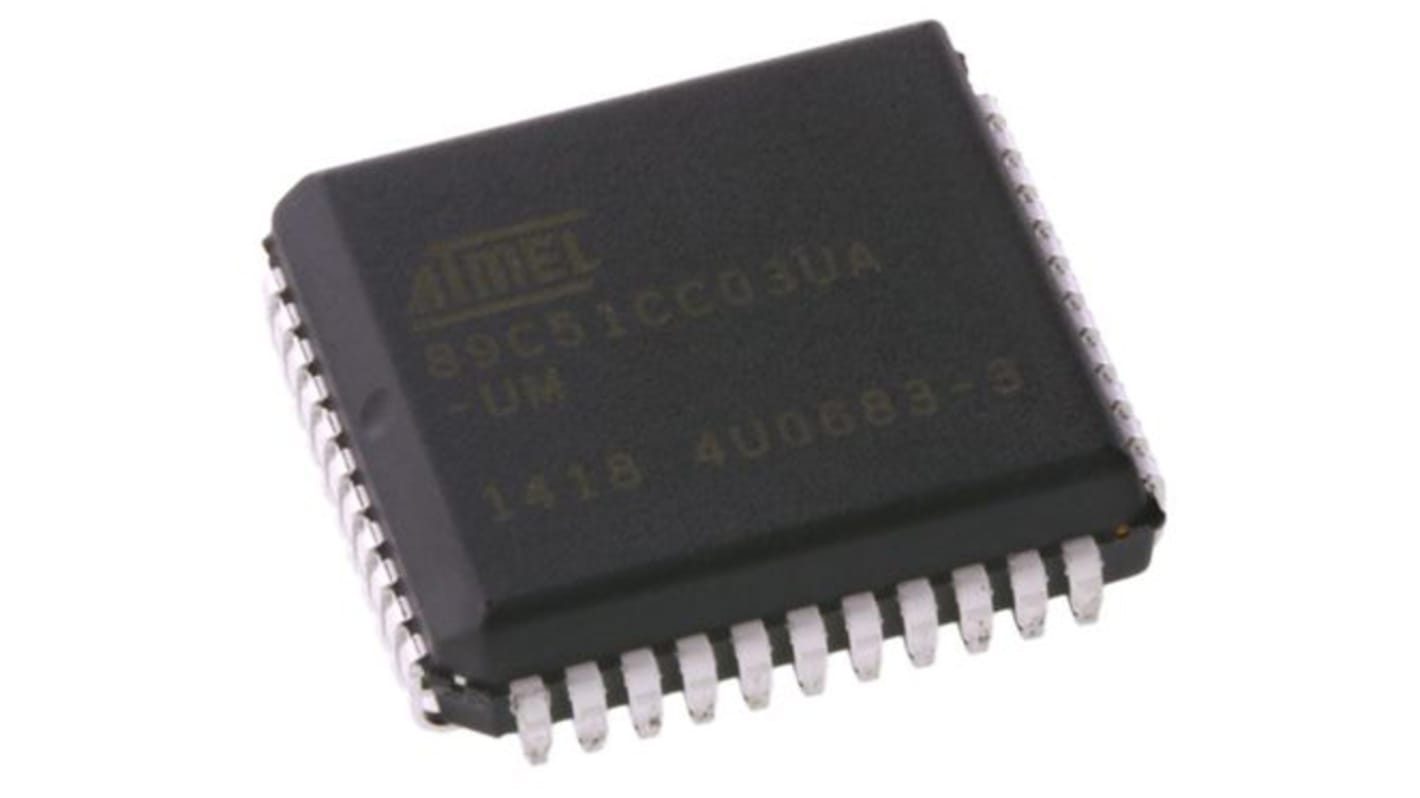

Microchip AT89C51CC03UA-SLSUM, 8bit 80C51 Microcontroller, AT89, 40 MHz, 60 MHz, 64 kB Flash, 44-Pin PLCC
- RS Stock No.:
- 127-6620
- Mfr. Part No.:
- AT89C51CC03UA-SLSUM
- Brand:
- Microchip
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) Each
$18.20
(exc. GST)
$20.02
(inc. GST)
Units | Per unit |
1 - 9 | $18.20 |
10 - 24 | $17.74 |
25 + | $16.92 |
- RS Stock No.:
- 127-6620
- Mfr. Part No.:
- AT89C51CC03UA-SLSUM
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
8051 Architecture CAN Networking Microcontrollers
Atmel offers 8051 flash microcontrollers that supports Controller Area Network (CAN) networking.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
8051 Architecture Microcontrollers
Atmel's 8-bit microcontrollers (MCUs) based on the 8051 instruction set, combine proven technology with the latest features and functionality, with all featuring advanced flash memory.
Device Family
Single Cycle Core
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Specifications
Attribute | Value |
---|---|
Family Name | AT89 |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | 80C51 |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 40 MHz, 60 MHz |
RAM Size | 2.25 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 8 bit |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 3 → 5.5 V |
Number of UART Channels | 1 |
Number of CAN Channels | 1 |
Pulse Width Modulation | 1 (5 x 8 bit) |
Dimensions | 16.66 x 16.66 x 4.06mm |
Width | 16.66mm |
Height | 4.06mm |
ADCs | 8 x 10 bit |
Length | 16.66mm |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Instruction Set Architecture | CISC |
Minimum Operating Temperature | -40 °C |
Number of Ethernet Channels | 0 |
Maximum Number of Ethernet Channels | 0 |
