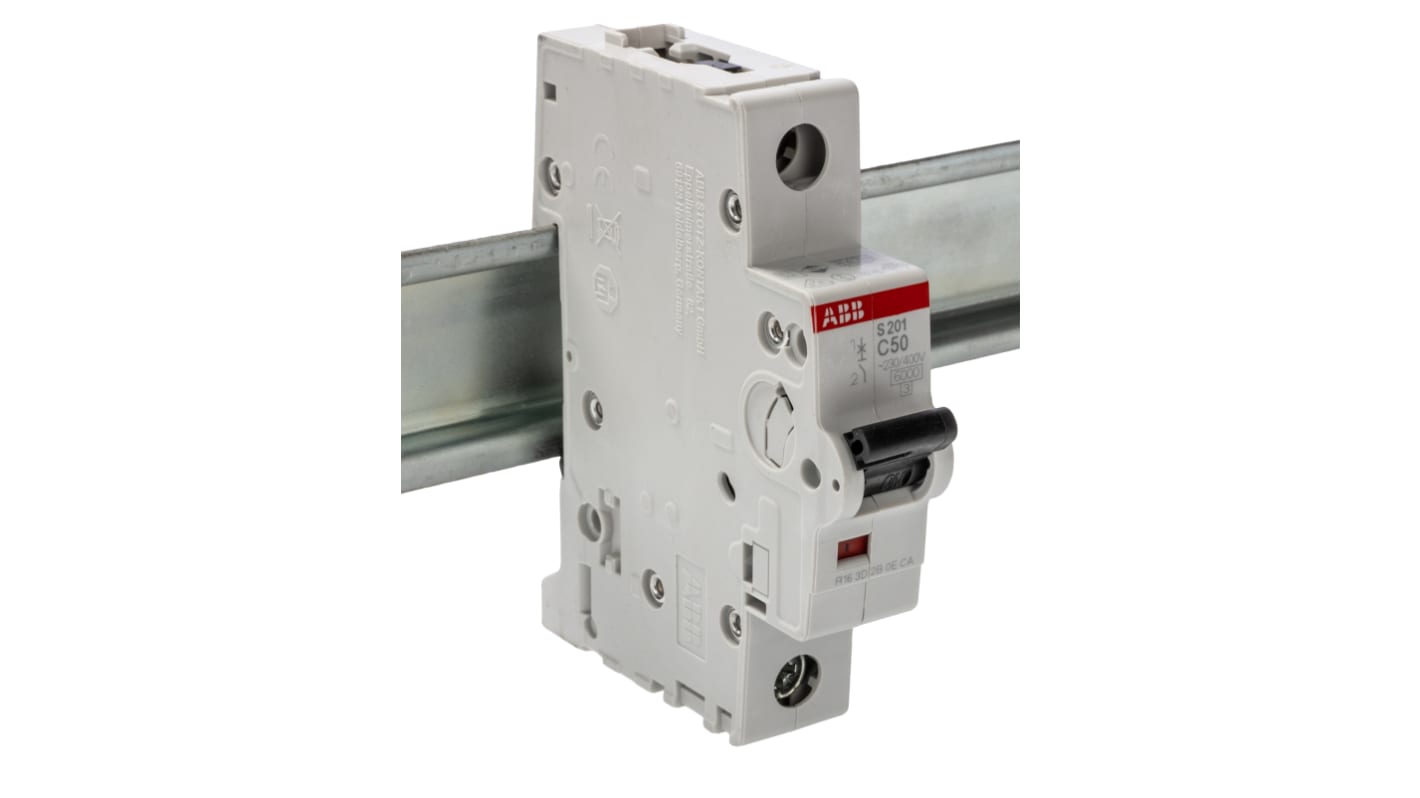

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 50A, Type C, 230V ac AC, 72 V dc DC, 6 kA Breaking

RS Stock No.:: 746-7683
Mfr. Part No.:: 2CDS251001R0504 S201-C50
Brand:: ABB

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 50A, Type C, 230V ac AC, 72 V dc DC, 6 kA Breaking

View all MCBs

Subtotal (1 unit)*

$35.21

(exc. GST)

$38.73

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$35.21

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Click here to find out more.

RS Stock No.:: 746-7683
Mfr. Part No.:: 2CDS251001R0504 S201-C50
Brand:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Miniature Circuit Breaker
	Number of Poles	1
	Current Rating	50A
	Tripping Characteristics	Type C
	Rated AC Voltage	230V ac
	Rated DC Voltage	72V dc
	Mount Type	DIN Rail
	Breaking Capacity	6kA
	Range	System Pro M Compact
	Series	S200
	Terminal Type	Cage Terminal
	IP Rating	IP20, IP40
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
	Width	17.5mm
	Height	69mm
	Depth	69mm
	Better World Product	Yes
	Better World Claim	Designed for Disassembly
	Reset Actuator Type	Lever
	Tripping Mechanism	Electromagnetic, Thermomagnetic

	Select all
	Brand ABB
	Product Type Miniature Circuit Breaker
	Number of Poles 1
	Current Rating 50A
	Tripping Characteristics Type C
	Rated AC Voltage 230V ac
	Rated DC Voltage 72V dc
	Mount Type DIN Rail
	Breaking Capacity 6kA
	Range System Pro M Compact
	Series S200
	Terminal Type Cage Terminal
	IP Rating IP20, IP40
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2
	Width 17.5mm
	Height 69mm
	Depth 69mm
	Better World Product Yes
	Better World Claim Designed for Disassembly
	Reset Actuator Type Lever
	Tripping Mechanism Electromagnetic, Thermomagnetic

RoHS Status: Exempt

COO (Country of Origin):: DE

ABB S200 Series MCB, 50A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS251001R0504 S201-C50

This miniature circuit breaker (MCB) is intended to protect electrical circuits in commercial and industrial environments. The ABB S200 series offers robust protection against overloads and short circuits, ensuring operational continuity and enhanced safety. Its effective design and key features make it essential in contemporary electrical installations, providing reassurance for users in the automation and electrical sectors.

Features & Benefits

• Type C tripping characteristics are adept at managing inductive loads

• Breaking capacity of 10kA provides fault protection

• DIN rail mounting streamlines installation in various electrical panels

• Lever reset mechanism facilitates easy operation and maintenance

• Thermal and electromechanical mechanisms ensure dual-level protection

• Short circuit protection reduces damage to connected equipment

Applications

• Applicable in commercial buildings for circuit protection

• Crucial for industrial machinery to prevent electrical issues

• Suitable for automation systems needing dependable performance

• Ideal for electrical distribution panels in large facilities

What is the maximum voltage rating for this device?

It operates at a rated AC voltage of 230V and DC voltage of 72V.

Can this be used in residential installations?

Although primarily intended for commercial and industrial applications, it can be adapted for residential use when specifications are met.

How often should it be inspected or tested?

Regular inspections are advisable to maintain performance, typically every six months or as required by local regulations.

Can it accommodate different wiring sizes?

Yes, it features screw terminal contacts that support various wire sizes for adaptable applications.

Is there a specific procedure for resetting after a trip?

Simply move the lever to the 'ON' position after resolving the issue that caused the trip.
