Nexperia 74LVC2G32DC,125, Dual 2-Input OR Logic Gate, 8-Pin VSSOP

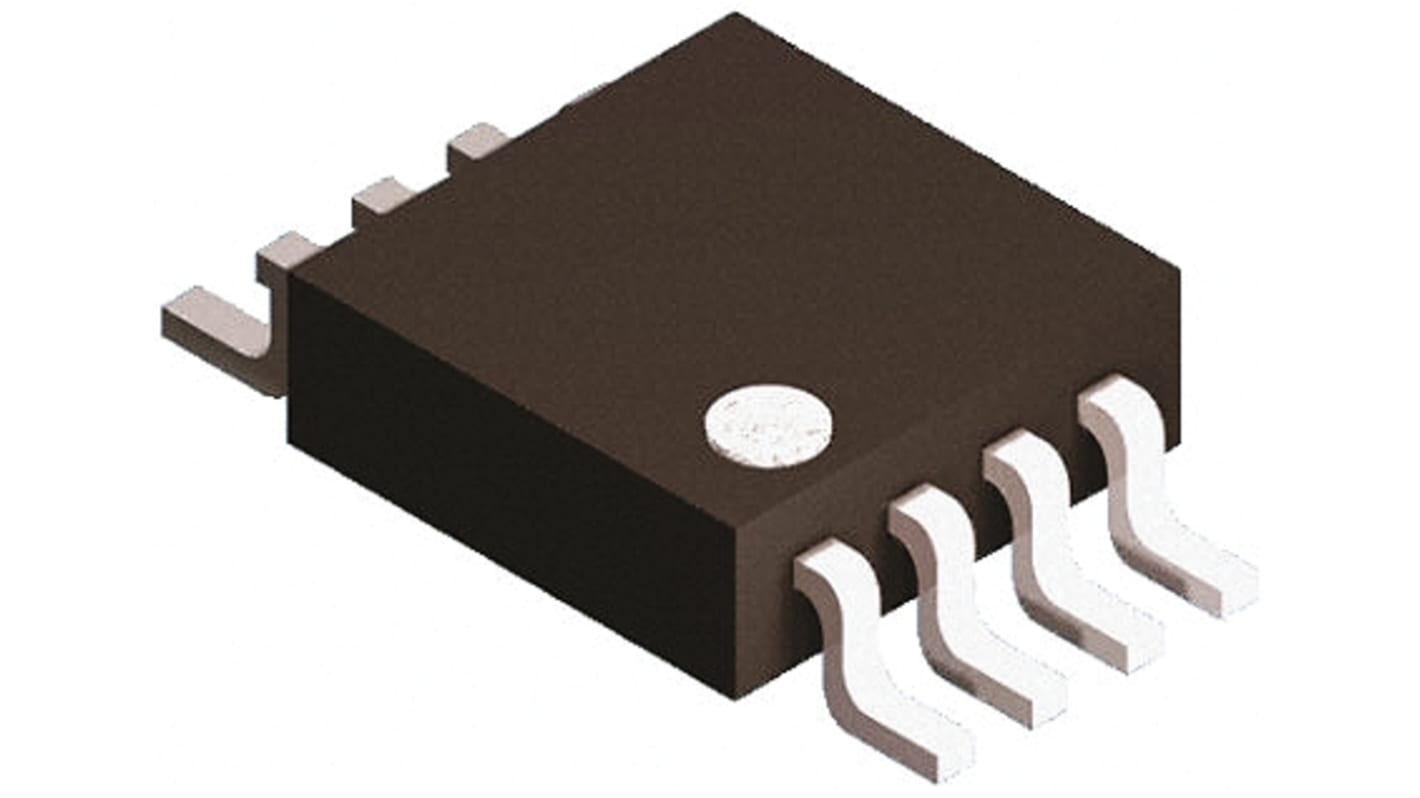

This image is representative of the product range

View all Logic Gates
Bulk discount available

Subtotal 20 units (supplied on a continuous strip)*

$11.58

(exc. GST)

$12.74

(inc. GST)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
20 - 40$0.579
50 - 90$0.573
100 - 190$0.568
200 +$0.562

*price indicative

Packaging Options:
RS Stock No.:
816-8820P
Mfr. Part No.:
74LVC2G32DC,125
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Logic Function

OR

Mounting Type

Surface Mount

Number of Elements

2

Number of Inputs per Gate

2

Schmitt Trigger Input

No

Package Type

VSSOP

Pin Count

8

Logic Family

LVC

Input Type

TTL

Maximum Operating Supply Voltage

5.5 V

Maximum High Level Output Current

-32mA

Maximum Propagation Delay Time @ Maximum CL

6 ns @ 50 pF

Minimum Operating Supply Voltage

1.65 V

Maximum Low Level Output Current

32mA

Length

2.4mm

Maximum Operating Temperature

+125 °C

Propagation Delay Test Condition

50pF

Output Type

Single Ended

Minimum Operating Temperature

-40 °C

Dimensions

2.4 x 2.1 x 0.85mm

Width

2.1mm

Height

0.85mm
