Nexperia, 4 2-Input NOR Quad 2-Input NOR Gate, 14-Pin SO-14
- RS Stock No.:
- 219-4344
- Mfr. Part No.:
- HEF4001BT,653
- Brand:
- Nexperia

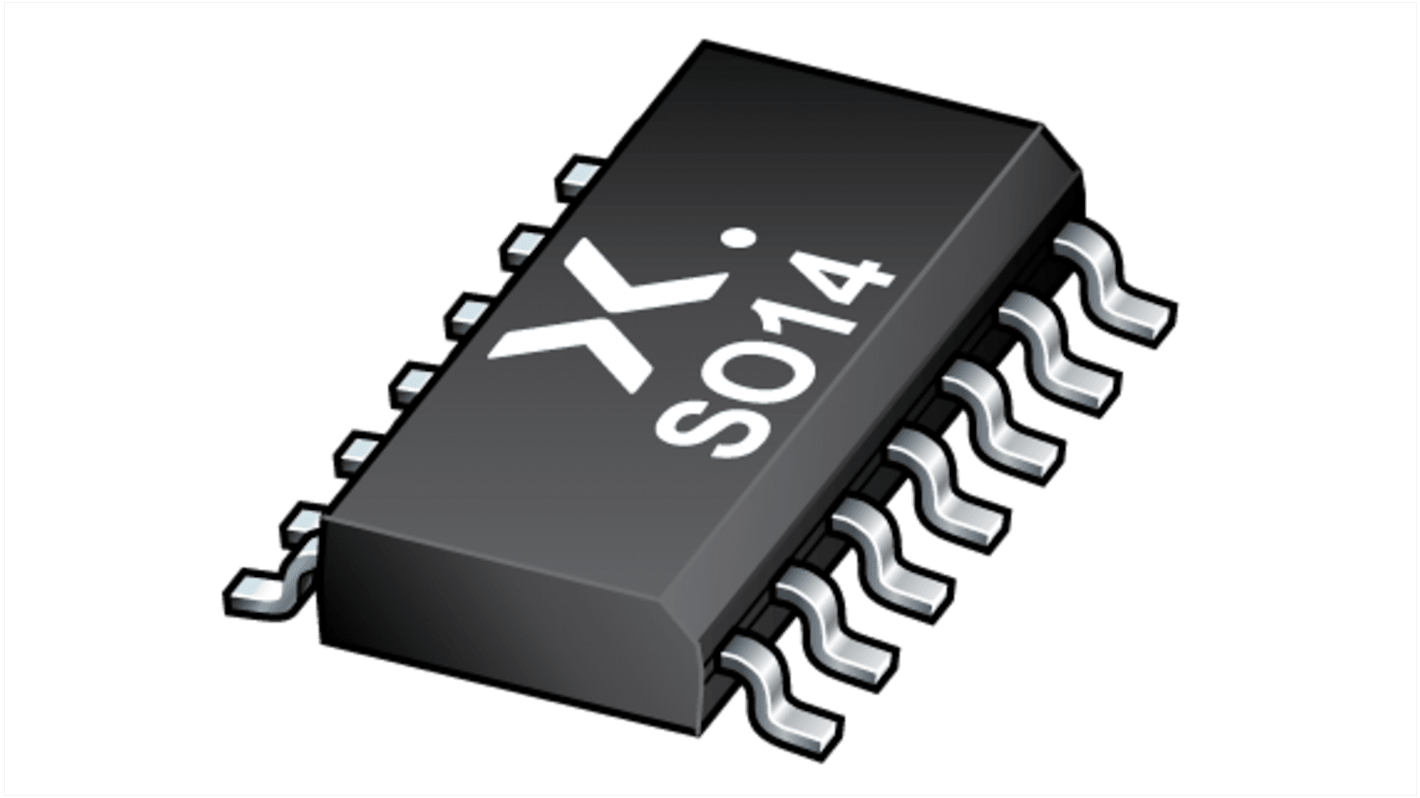

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2500 units)*
$587.50
(exc. GST)
$645.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 5,000 unit(s) shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 10000 | $0.235 | $587.50 |
| 12500 + | $0.212 | $530.00 |
*price indicative
- RS Stock No.:
- 219-4344
- Mfr. Part No.:
- HEF4001BT,653
- Brand:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Quad 2-Input NOR Gate | |
| Logic Function | NOR | |
| Mount Type | Surface | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SO-14 | |
| Pin Count | 14 | |
| Logic Family | HEF | |
| Maximum Propagation Delay Time @ CL | 120ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -2.4mA | |
| Maximum Operating Temperature | 125°C | |
| Maximum Supply Voltage | 18V | |
| Height | 1.75mm | |
| Length | 8.75mm | |
| Standards/Approvals | JEDEC standard JESD 13-B | |
| Minimum Supply Voltage | 3V | |
| Width | 3.9 mm | |
| Series | HEF4001B | |
| Maximum Low Level Output Current | 2.4mA | |
| Output Type | NOR | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Quad 2-Input NOR Gate | ||
Logic Function NOR | ||
Mount Type Surface | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SO-14 | ||
Pin Count 14 | ||
Logic Family HEF | ||
Maximum Propagation Delay Time @ CL 120ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -2.4mA | ||
Maximum Operating Temperature 125°C | ||
Maximum Supply Voltage 18V | ||
Height 1.75mm | ||
Length 8.75mm | ||
Standards/Approvals JEDEC standard JESD 13-B | ||
Minimum Supply Voltage 3V | ||
Width 3.9 mm | ||
Series HEF4001B | ||
Maximum Low Level Output Current 2.4mA | ||
Output Type NOR | ||
Automotive Standard No | ||
The Nexperia HEF4001B is a quad 2-input NOR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance.
Fully static operation
Standardized symmetrical output characteristics
