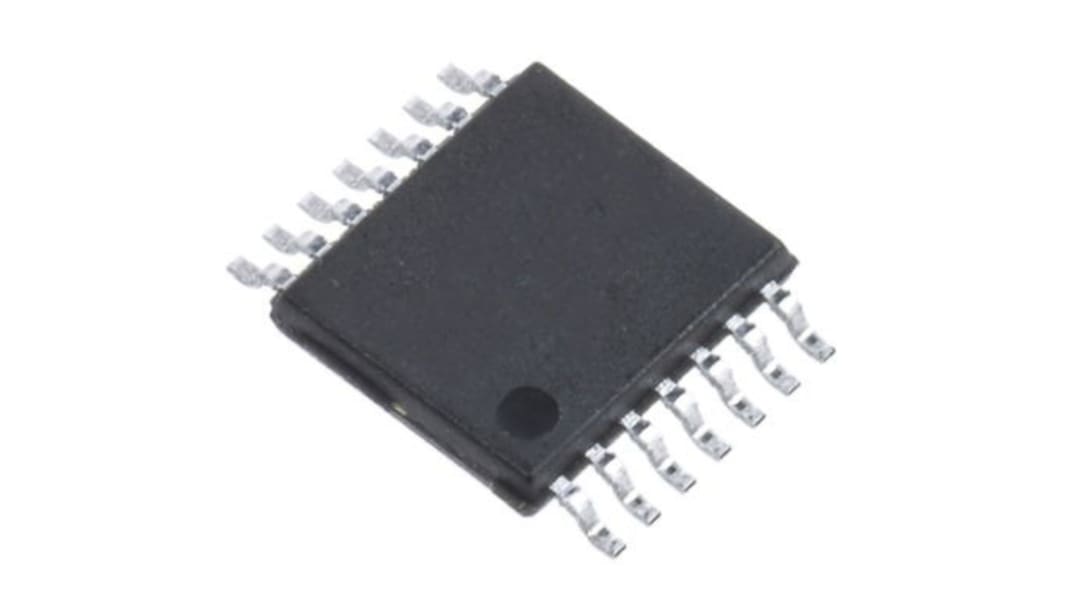

Maxim Integrated MAX13451EAUD+ Line Transceiver, 3 State, 14-Pin TSSOP

This image is representative of the product range

View all Line Interface ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
190-6906
Mfr. Part No.:
MAX13451EAUD+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Logic Family

CMOS

Product Type

Line Transceiver

Logic Function

Transceiver

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

3 State

Mount Type

Surface

Package Type

TSSOP

Minimum Supply Voltage

4.5V

Pin Count

14

Maximum High Level Output Current

-1mA

Maximum Supply Voltage

5.5V

Maximum Propagation Delay Time @ CL

800ns

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

1mA

Maximum Operating Temperature

125°C

Series

MAX13451E

Standards/Approvals

No

Automotive Standard

No

Supply Current

12mA

Software/Pin-Selectable 100Ω/120Ω Termination

Integrated, Switchable Resistors Eliminate the Need for External Resistors or DIP Switches

Driver Drives 100Ω Double Termination and Supports Cat-5/Cat-6 and 24-AWG Cables

Pin-Selectable Slew-Rate Limiting Reduces EMI for Data Rates Up to 500kbps

1/8 Unit Load Allows Up to 256 Transceivers On the Bus

Designed to Perform in Harsh Environments

Extended ESD Protection

±30kV Human Body Model

±15kV Air Gap Discharge

±7kV Contact Discharge

Inverting of A, B Line Polarity (MAX13451E) Allows Phase Reversal if Misconnected

Thermal and Overcurrent Protection

Driver Fault Indication (MAX13451E)

Fail-Safe Receivers

-40°C to +125°C Temperature Range

+4.5V to +5.5V Supply Voltage Range

Integrated Low-Voltage Logic Interface (Down to 1.8V) Interfaces with Small-Geometry ASICs and FPGA

Applications/Uses

Industrial Control Systems

Medical Networks

Motor Control

Portable Industrial Equipment

Security Networks
