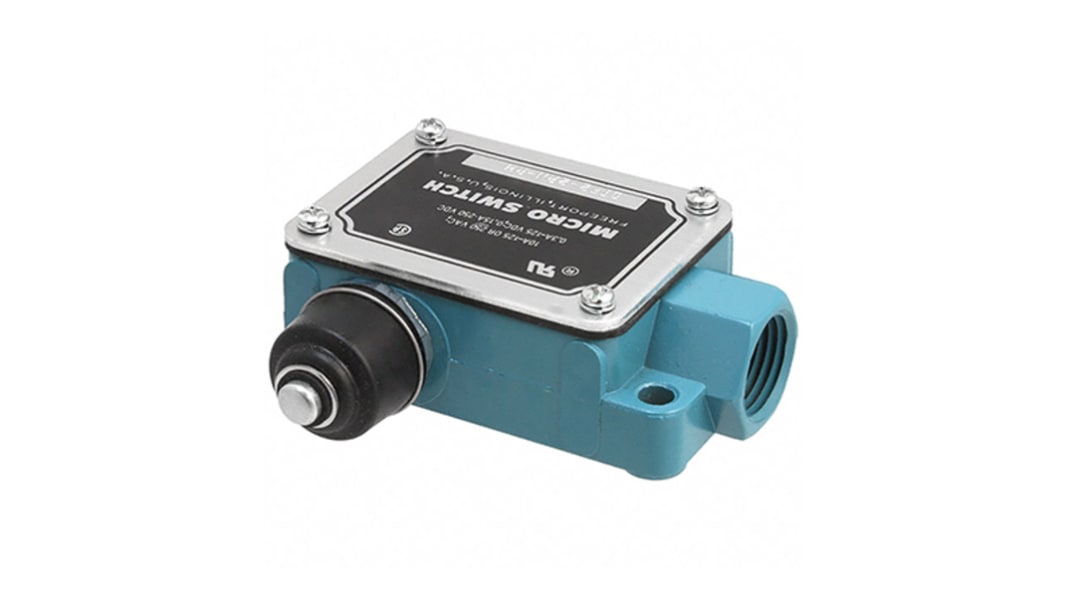

Name: Honeywell Plunger Limit Switch, 2NO/2NC, DPDT, Die Cast Aluminium Housing, 250V ac Max, 10A Max
Brand: Honeywell
SKU: 808-7597
Price: 708.17 AUD
Availability: Discontinued

DTF2 Medium Duty Limit Switches

The DTF2 limit switch series from Honeywell is designed for use within a medium duty environment. The elastomer boot on sealed actuator verions protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated "right" or "left," when looking at the nameplate.

Cast aluminium housing

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Approvals

UL, CSA.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Plunger
	Pole and Throw Configuration	DPDT
	Normal State Configuration	2NO/2NC
	Maximum Current	10A
	Housing Material	Die Cast Aluminium
	Maximum AC Voltage	250V
	Maximum DC Voltage	250V
	Connection Type	1/2 in NPT
	Action Type	Snap Action
	Length	101.6mm
	Maximum Operating Temperature	+71°C
	Minimum Operating Temperature	-32°C
	Depth	54.86mm
	Width	33.02mm
	Mounting Orientation	Vertical

	Select all
	Brand Honeywell
	Actuator Type Plunger
	Pole and Throw Configuration DPDT
	Normal State Configuration 2NO/2NC
	Maximum Current 10A
	Housing Material Die Cast Aluminium
	Maximum AC Voltage 250V
	Maximum DC Voltage 250V
	Connection Type 1/2 in NPT
	Action Type Snap Action
	Length 101.6mm
	Maximum Operating Temperature +71°C
	Minimum Operating Temperature -32°C
	Depth 54.86mm
	Width 33.02mm
	Mounting Orientation Vertical
