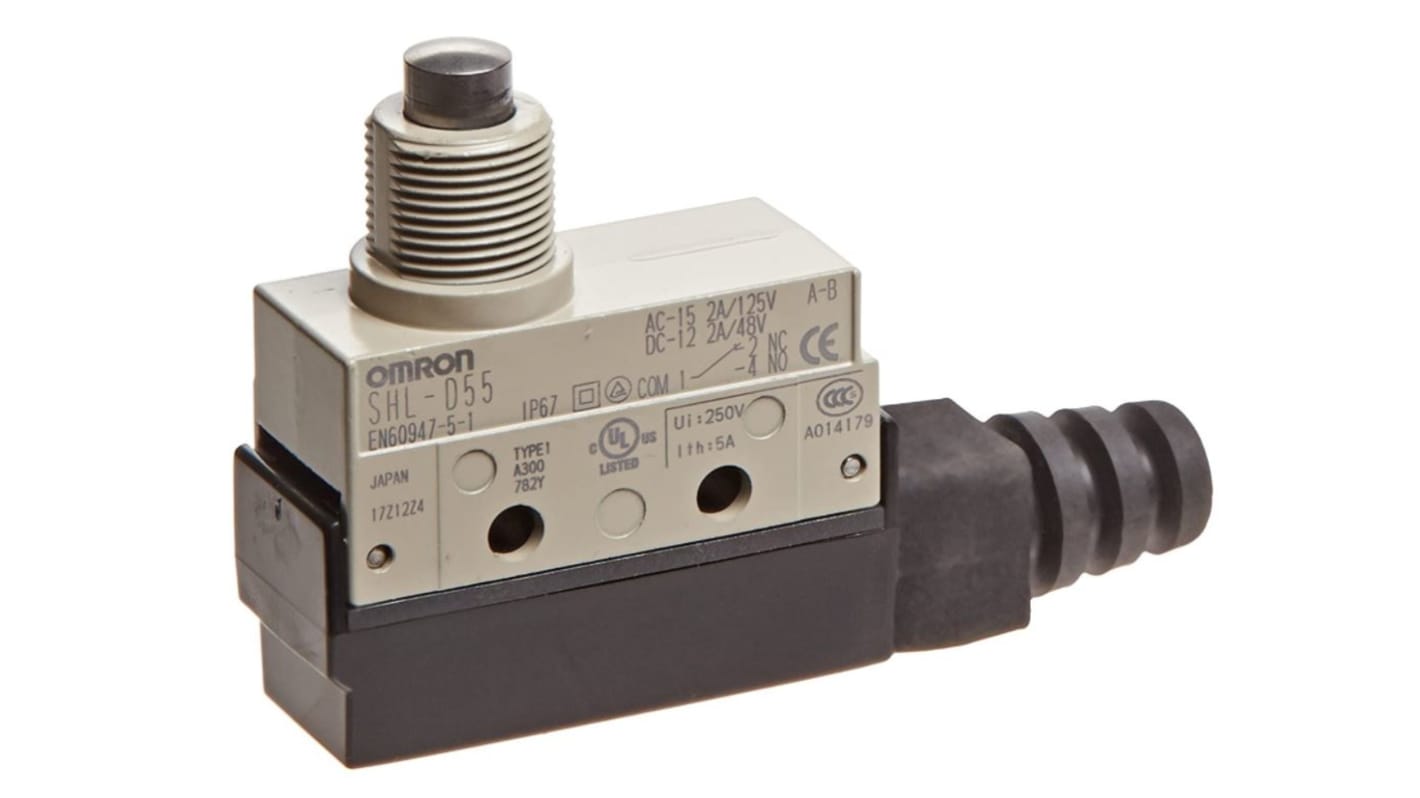

Omron SHL Series Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 2 A, dc 200mA Max
- RS Stock No.:
- 752-9909
- Mfr. Part No.:
- SHL-D55
- Brand:
- Omron
Subtotal (1 unit)**
$128.61
(exc. GST)
$141.47
(inc. GST)
24 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit |
|---|---|
| 1 + | $128.61 |
**price indicative
- RS Stock No.:
- 752-9909
- Mfr. Part No.:
- SHL-D55
- Brand:
- Omron
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Actuator Type | Plunger | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP67 | |
| Maximum Current | ac 2 A, dc 200mA | |
| Maximum AC Voltage | 480V | |
| Maximum DC Voltage | 250V | |
| Connection Type | Screw | |
| Series | SHL | |
| Action Type | Snap Action | |
| Length | 73.5mm | |
| Width | 35.9mm | |
| Standards Met | CCC, CE, CSA, UL | |
| Depth | 17.5mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +80°C | |
| Operating Force | 9.81 N | |
| Mounting Orientation | Side | |
| Mechanical Life | 10000000Cycles | |
Select all | ||
|---|---|---|
Brand Omron | ||
Actuator Type Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current ac 2 A, dc 200mA | ||
Maximum AC Voltage 480V | ||
Maximum DC Voltage 250V | ||
Connection Type Screw | ||
Series SHL | ||
Action Type Snap Action | ||
Length 73.5mm | ||
Width 35.9mm | ||
Standards Met CCC, CE, CSA, UL | ||
Depth 17.5mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +80°C | ||
Operating Force 9.81 N | ||
Mounting Orientation Side | ||
Mechanical Life 10000000Cycles | ||
