- RS Stock No.:
- 435-0365
- Mfr. Part No.:
- ZE-NA2-2G
- Brand:
- Omron
5 In AU stock for next working day delivery
66 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$159.41
(exc. GST)
$175.35
(inc. GST)
Units | Per unit |
1 + | $159.41 |
- RS Stock No.:
- 435-0365
- Mfr. Part No.:
- ZE-NA2-2G
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

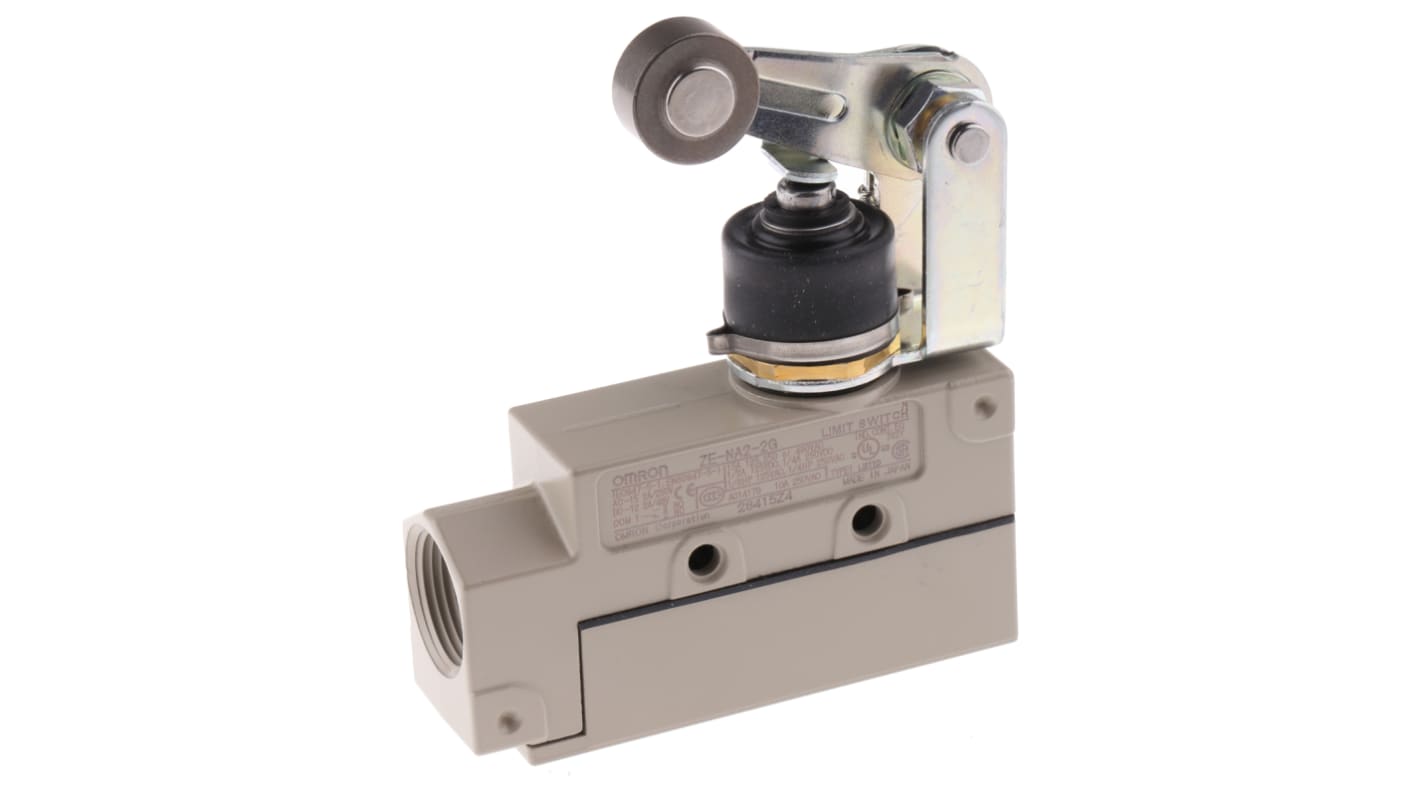

ZE High Capacity Limit Switch
Enclosed limit switch with large breaking capacity
Die cast alloy construction with high mechanical integrity
Ideal for use where dust or particle build up is an issue
Contact configuration: SPDT
Switching capacity 15A, 125Vac inductive load
Connection method: screw terminals
Mechanical life: 10000000 operations minimum
Conduit entry PG13.5
Die cast alloy construction with high mechanical integrity
Ideal for use where dust or particle build up is an issue
Contact configuration: SPDT
Switching capacity 15A, 125Vac inductive load
Connection method: screw terminals
Mechanical life: 10000000 operations minimum
Conduit entry PG13.5
Approvals
UL recognised, CSA
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP65 |
Maximum Current | 15A |
Maximum AC Voltage | 480V |
Maximum DC Voltage | 250V |
Action Type | Snap Action |
Length | 78.9mm |
Width | 86mm |
Depth | 25.4mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +80°C |
Mechanical Life | 10000000Cycles |
