Taiwan Semiconductor TS19501CB10H RBG LED Driver IC, 4.5/42 V 10-Pin SOP
- RS Stock No.:
- 216-9637
- Mfr. Part No.:
- TS19501CB10H RBG
- Brand:
- Taiwan Semiconductor

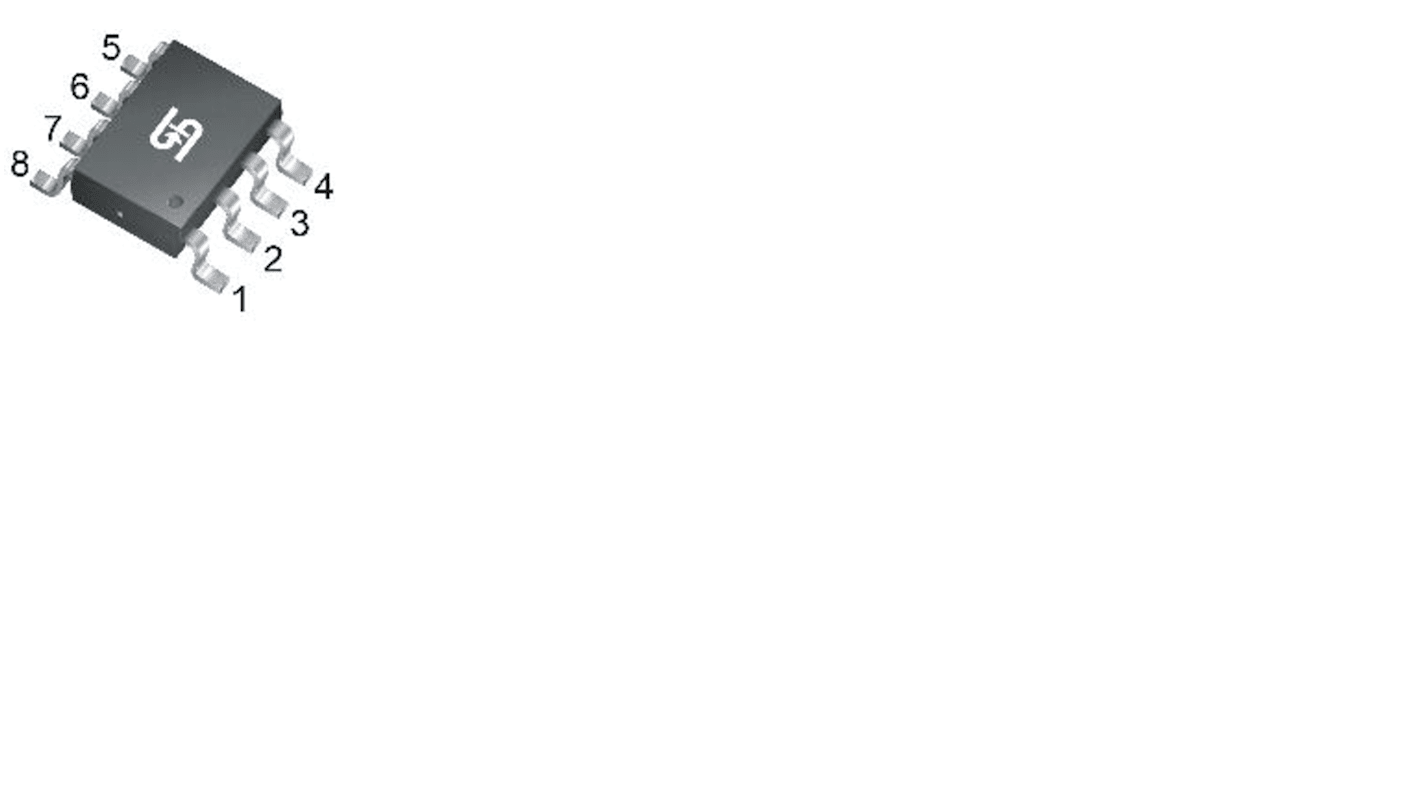

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 216-9637
- Mfr. Part No.:
- TS19501CB10H RBG
- Brand:
- Taiwan Semiconductor
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Product Type | LED Driver IC | |
| Input Voltage | 4.5/42 V | |
| Input Voltage Type | DC | |
| Dimming Operation | PWM and Analogue Dimming | |
| Mount Type | Through Hole | |
| Package Type | SOP | |
| Number of Pins | 10 | |
| Maximum Output Voltage | 42V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | TS19501 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Product Type LED Driver IC | ||
Input Voltage 4.5/42 V | ||
Input Voltage Type DC | ||
Dimming Operation PWM and Analogue Dimming | ||
Mount Type Through Hole | ||
Package Type SOP | ||
Number of Pins 10 | ||
Maximum Output Voltage 42V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series TS19501 | ||
Automotive Standard No | ||
The Taiwan semiconductor linear constant current led driver is a single channel LED driver of lowside- current sense. This device can operate in DCM, BCM and CCM mode with full protection and diagnostics.
Device temperature grade 1: -40°C to 125°C Device HBM ESD classification level H2 Device CDM ESD classification level C6
