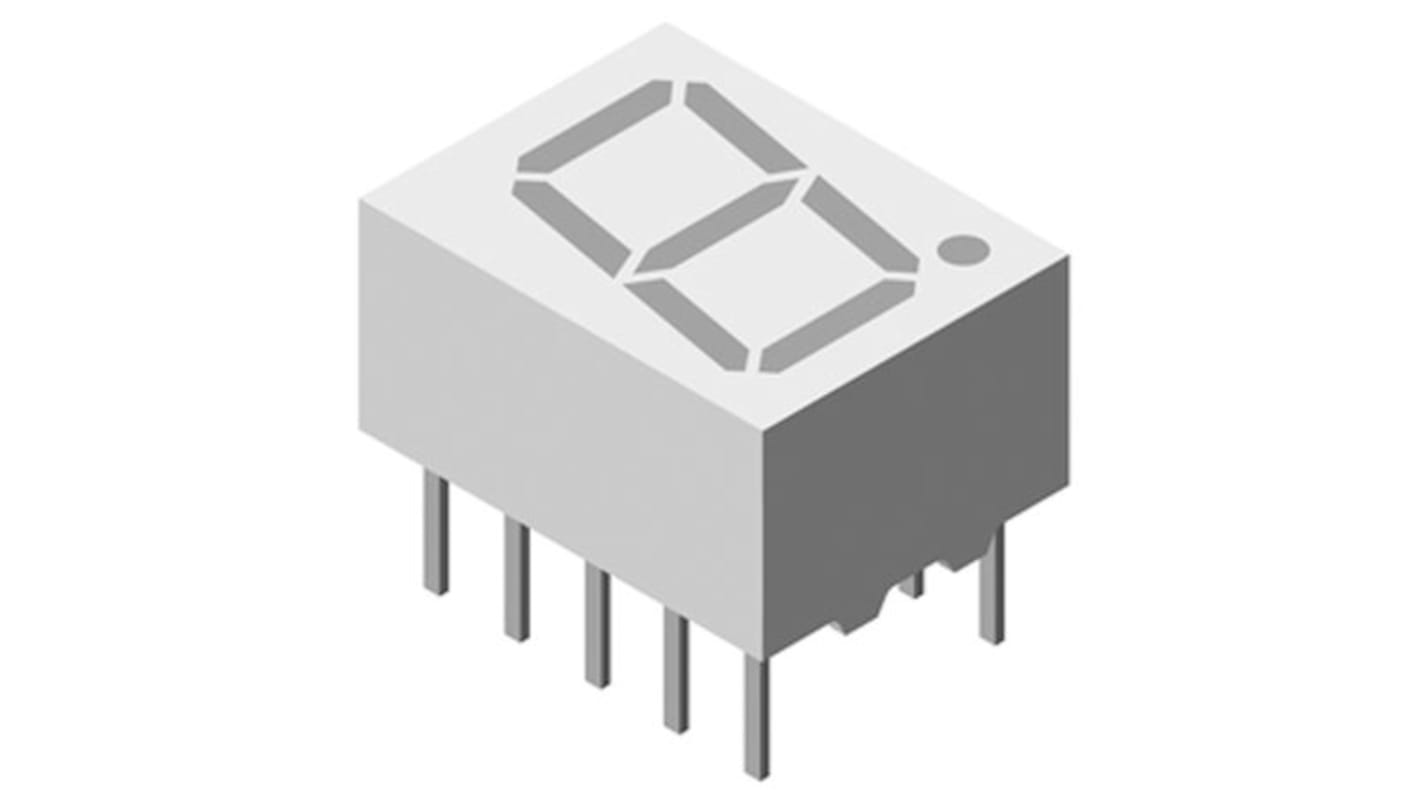

TDSG3160 Vishay 7-Segment LED Display, CC Green 6.8 mcd RH DP 10mm

RS Stock No.:: 919-0045
Mfr. Part No.:: TDSG3160
Brand:: Vishay

TDSG3160 Vishay 7-Segment LED Display, CC Green 6.8 mcd RH DP 10mm

Bulk discount available

Subtotal (1 tube of 40 units)**

$78.76

(exc. GST)

$86.64

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit	Per Tube**
40 - 40	$1.969	$78.76
80 - 120	$1.934	$77.36
160 +	$1.89	$75.60

**price indicative

RS Stock No.:: 919-0045
Mfr. Part No.:: TDSG3160
Brand:: Vishay

Datasheet
NOTICE – This product is not for general use by consumers

Attribute	Value
Display Type	7-Segment
Number of Characters	1
LED Colours	Green
Number of Segments	7
Dominant Wavelength	575 nm
Character Width	6mm
Character Height	10mm
Common Connection	Cathode
Mounting Type	Through Hole
External Width	9.7mm
External Dimensions	7 x 9.7mm
External Height	7mm
Luminous Intensity	6.8 mcd
Colour of Face	Grey
Power Dissipation	480mW
Forward Voltage	2.4 V
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
Forward Current	20mA
Decimal Orientation	Right Side
Minimum Operating Temperature	-40°C

TDSG3160 Vishay 7-Segment LED Display, CC Green 6.8 mcd RH DP 10mm

FREE delivery for orders over $80.00 ex GST

7-Segment LED Displays, Vishay

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
