157121S12700 Wurth Elektronik 1 7 Segment LED Display Cathode Super Red 38mcd Right Side 10 mm
- RS Stock No.:
- 228-0394
- Distrelec Article No.:
- 304-40-948
- Mfr. Part No.:
- 157121S12700
- Brand:
- Wurth Elektronik

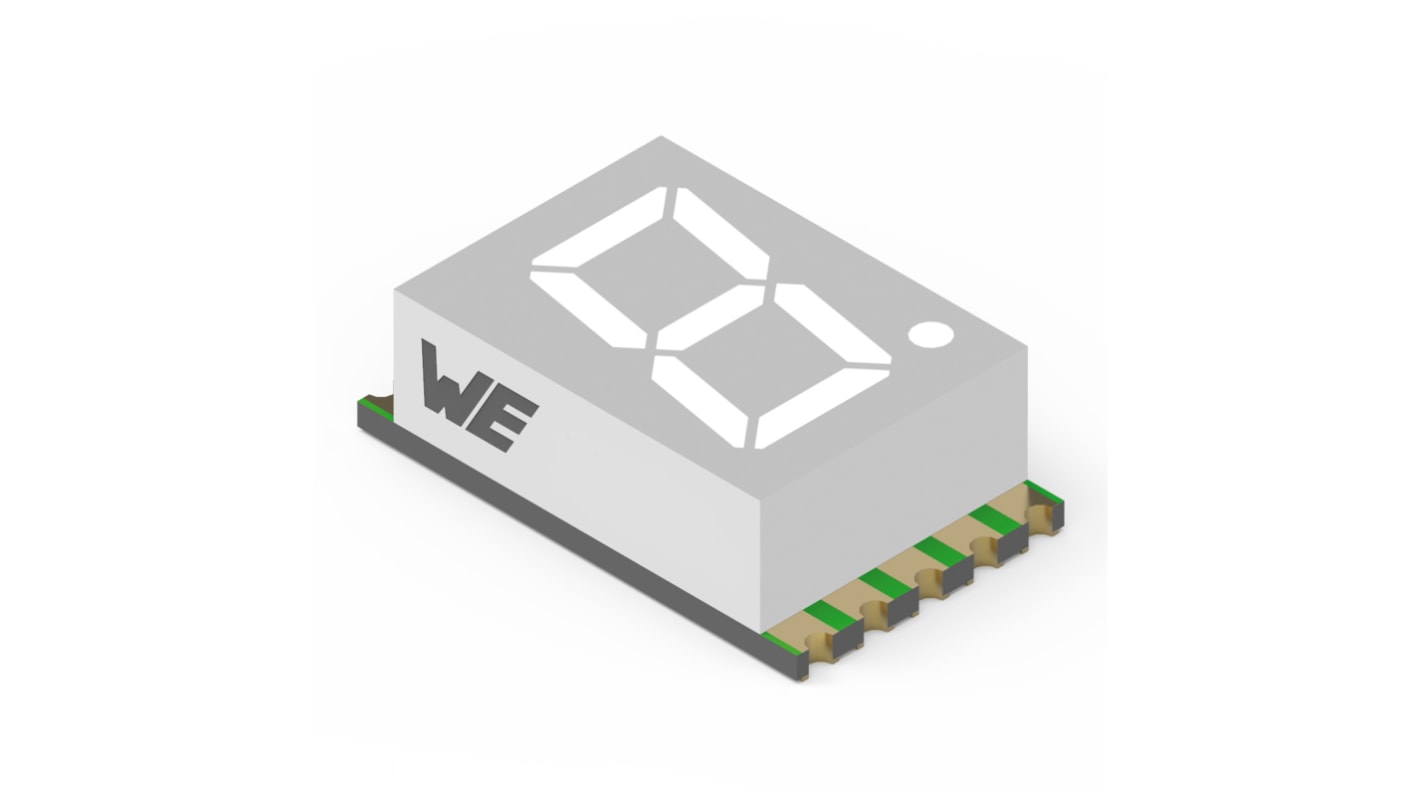

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$19.75
(exc. GST)
$21.70
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 875 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | $3.95 | $19.75 |
| 25 - 45 | $3.88 | $19.40 |
| 50 - 95 | $3.81 | $19.05 |
| 100 + | $3.742 | $18.71 |
*price indicative
- RS Stock No.:
- 228-0394
- Distrelec Article No.:
- 304-40-948
- Mfr. Part No.:
- 157121S12700
- Brand:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Display Type | 7 Segment | |
| Product Type | LED Display | |
| Number of Characters | 1 | |
| LED Colour | Super Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 635nm | |
| Character Height | 10mm | |
| Common Connection | Cathode | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Luminous Intensity | 38mcd | |
| Colour of Face | Grey | |
| Standards/Approvals | IEC, RoHS, EN, REACH | |
| Power Dissipation | 52mW | |
| Decimal Orientation | Right Side | |
| Series | WL-S7DS | |
| Forward Current | 100mA | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Display Type 7 Segment | ||
Product Type LED Display | ||
Number of Characters 1 | ||
LED Colour Super Red | ||
Number of Segments 7 | ||
Dominant Wavelength 635nm | ||
Character Height 10mm | ||
Common Connection Cathode | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Luminous Intensity 38mcd | ||
Colour of Face Grey | ||
Standards/Approvals IEC, RoHS, EN, REACH | ||
Power Dissipation 52mW | ||
Decimal Orientation Right Side | ||
Series WL-S7DS | ||
Forward Current 100mA | ||
The Wurth Elektronik WL-S7DS 7 segments display with super red emitting colour has common cathode circuitry. It has industrial standard size and schematic, low power consumption, grey surface, milky/diffused segments, driving with DC current in forward direction only and suitable for high peak current up to 100 mA. It used in audio/measure equipment, instrument panels, digital read out display and control units.
It is RoHS and REACH compliant
It is lead free
