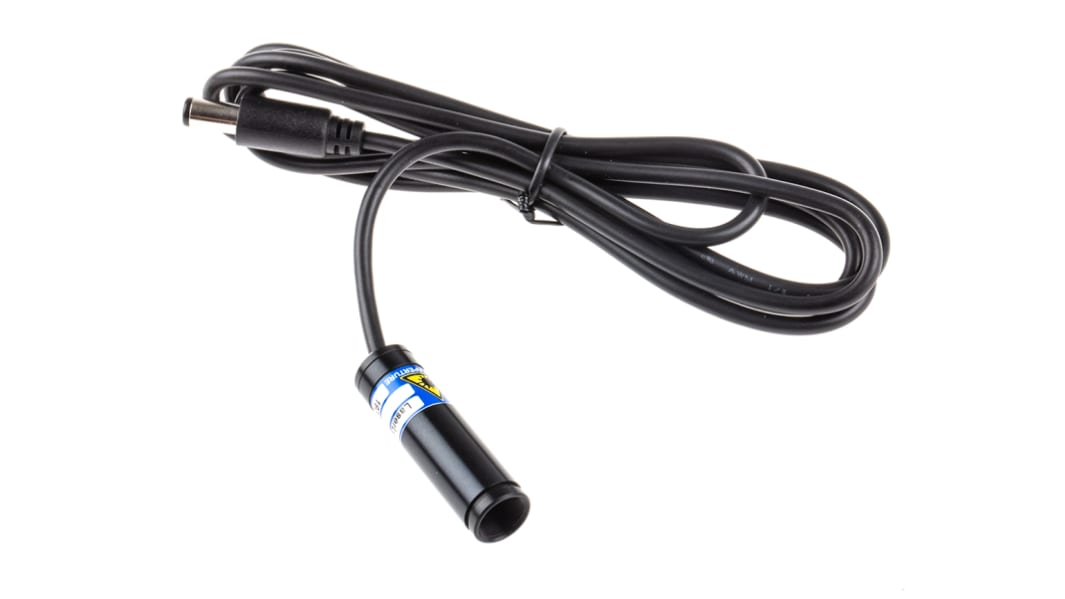

Global Laser LaserLyte-Flex-635-5 Laser Module 635 nm 5 mW Continuous Wave Dot pattern 10 V

RS Stock No.:: 697-3557
Mfr. Part No.:: LaserLyte-Flex-635-5
Brand:: Global Laser

Global Laser LaserLyte-Flex-635-5 Laser Module 635 nm 5 mW Continuous Wave Dot pattern 10 V

Bulk discount available

Subtotal (1 unit)*

$351.71

(exc. GST)

$386.88

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

12 unit(s) ready to ship from another location
Plus 50 unit(s) shipping from 12 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	$351.71
10 +	$336.91

*price indicative

RS Stock No.:: 697-3557
Mfr. Part No.:: LaserLyte-Flex-635-5
Brand:: Global Laser

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Global Laser
	Product Type	Laser Module
	Laser Type	Continuous Wave
	Laser Colour	Red
	Emission Pattern	Dot
	Laser Wavelength	635nm
	Optical Output Power	5mW
	Laser Class	3R
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	85°C
	Length	42mm
	Maximum Supply Voltage	10V
	Standards/Approvals	No
	Diameter	11 mm
	Series	LaserLyte-Flex
	Automotive Standard	No
	Supply Current	60mA

	Select all
	Brand Global Laser
	Product Type Laser Module
	Laser Type Continuous Wave
	Laser Colour Red
	Emission Pattern Dot
	Laser Wavelength 635nm
	Optical Output Power 5mW
	Laser Class 3R
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 85°C
	Length 42mm
	Maximum Supply Voltage 10V
	Standards/Approvals No
	Diameter 11 mm
	Series LaserLyte-Flex
	Automotive Standard No
	Supply Current 60mA

COO (Country of Origin):: GB

Features and Benefits:

• Powerful red laser for great viability in any task

• 15 x 37mm (Without any optics or attachments)

• User adjustable focus

• Housed in a black anodised aluminium body for prolonged life and brilliant quality.

• 6mm to infinity focus range

• 1.5m cable length to allow for neat and safe cable management

• Laser class – 3R

• 5mW (Milliwatt) Laser

• 635nm wavelength

Need another variation?

127-1571 – Red continuous wave laser, 10mW – Class 3B.

127-1572 – Red continuous wave laser, 1mW – Class 2.

Laserlyte Flex

This laser is a brilliant a unique laser. From ’Global Laser’, it boasts a brilliant interchangeable laser system. The system has a range of projections which convert the base dot laser into a line, cross or a line with a dot. It is also features a ’plug-and-play’ feature when purchased with the power supply. (697-3591). The laser’s colour is a red for easy visibility.

The unique laser can be used in a variety of applications. You can use it on your home machinery for precise accuracy, production lines for alignment, cutting guidance, straight edge guidance, positing and screen printing.

Laser Modules, Global Laser

Note

110 – 240Vdc Power Supply:697-3591

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
