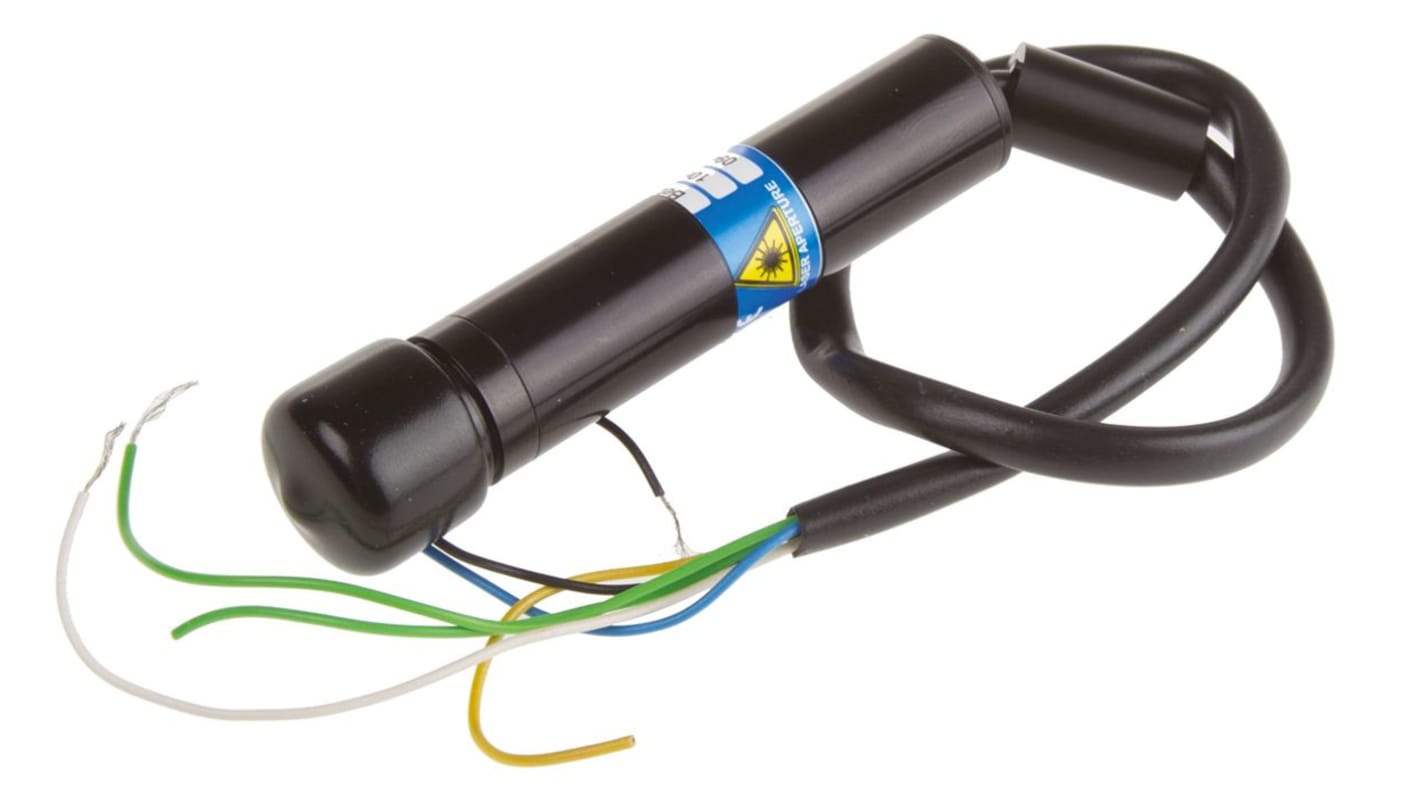

1060-42-000 Laser Module, 670nm 3mW, Modulating, TTL control Ellipse pattern -8 → -12 V
- RS Stock No.:
- 194-004
- Mfr. Part No.:
- 1060-42-000
- Brand:
- Global Laser
Bulk discount available
Subtotal (1 unit)**
$419.80
(exc. GST)
$461.78
(inc. GST)
6 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit |
|---|---|
| 1 - 19 | $419.80 |
| 20 + | $409.42 |
**price indicative
- RS Stock No.:
- 194-004
- Mfr. Part No.:
- 1060-42-000
- Brand:
- Global Laser
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Global Laser | |
| Laser Type | Modulating | |
| Laser Colour | Red | |
| Emission Pattern | Ellipse | |
| Laser Wavelength | 670nm | |
| Optical Output Power | 3mW | |
| Laser Class | 3R | |
| Control Type | TTL | |
| Parallel Beam Divergence FWHM | 0.5mrad | |
| Perpendicular Beam Divergence FWHM | 0.5mrad | |
| Dimensions | 15.25 (Dia.) x 75mm | |
| Diameter | 15.25mm | |
| Length | 75mm | |
| Maximum Supply Voltage | -12V | |
| Minimum Supply Voltage | -8V | |
| Supply Voltage Range | -8 → -12 V | |
| Series | Beta TX | |
Select all | ||
|---|---|---|
Brand Global Laser | ||
Laser Type Modulating | ||
Laser Colour Red | ||
Emission Pattern Ellipse | ||
Laser Wavelength 670nm | ||
Optical Output Power 3mW | ||
Laser Class 3R | ||
Control Type TTL | ||
Parallel Beam Divergence FWHM 0.5mrad | ||
Perpendicular Beam Divergence FWHM 0.5mrad | ||
Dimensions 15.25 (Dia.) x 75mm | ||
Diameter 15.25mm | ||
Length 75mm | ||
Maximum Supply Voltage -12V | ||
Minimum Supply Voltage -8V | ||
Supply Voltage Range -8 → -12 V | ||
Series Beta TX | ||
