IP66, IP67 Key Switch, SPDT, 5 A @ 115 V ac 2-Way Common-Key
- RS Stock No.:
- 562-561
- Mfr. Part No.:
- WRL-5-E-S-2
- Brand:
- Lorlin
View all Key Switches
114 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$42.85
(exc. GST)
$47.13
(inc. GST)
| units | Per unit |
| 1 + | $42.85 |
- RS Stock No.:
- 562-561
- Mfr. Part No.:
- WRL-5-E-S-2
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
Product Details

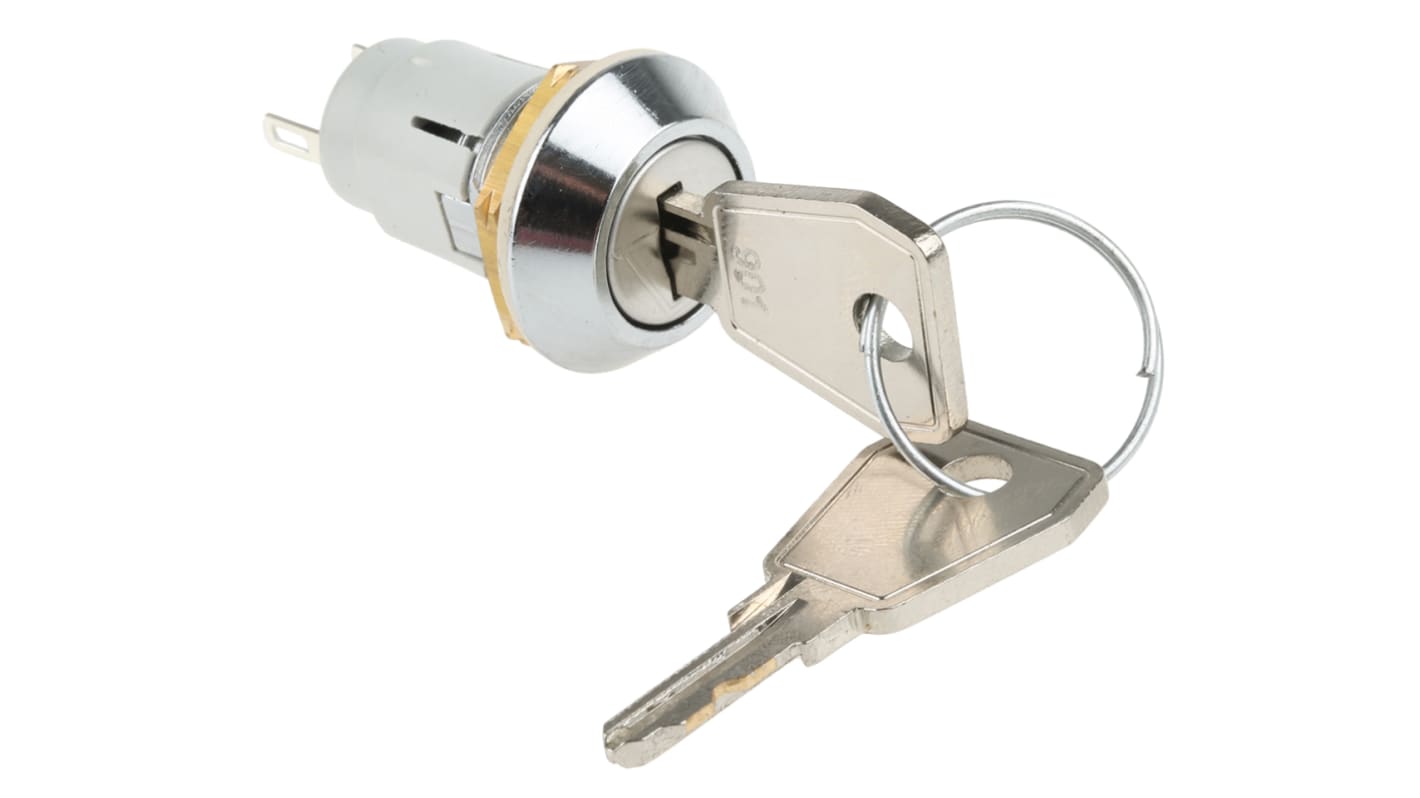

Lorlin Key Switch
The Lorlin key switch has a single pole double throw(SPDT)-NO/NC contact configuration. It is an innovative, miniature, key-operated lock switch. It has a zinc alloy die-cast housing with stainless steel capped bezel. It has a 90⁰ movement lock switch.
The switch has a contact current rating of 5A at 115VAC.
The switch has a contact current rating of 5A at 115VAC.
Features and Benefits
Up to 200 key combinations keys to differ
Common keys available keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Number of positions are 2
Common key type
Solder terminal
Case material is zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges -20°C and 65°C
Common keys available keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Number of positions are 2
Common key type
Solder terminal
Case material is zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges -20°C and 65°C
Applications
Marine
Control panels
Control panels
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
| Attribute | Value |
| Number of Positions | 2 |
| Contact Configuration | SPDT-NO/NC |
| Key Trapping | No |
| Contact Current Rating | 5 A @ 115 V ac |
| IP Rating | IP66, IP67 |
| Key Type | Common |
| Terminal Type | Solder |
| Case Material | Zinc Alloy |
| Bezel Shape | Round |
| Key Index Angle | 90° |
| Contact Material | Silver Plated Brass |
| Maximum Operating Temperature | +65°C |
| Mechanical Life | 10000 |
| Operating Temperature Range | -20 → +65°C |
| Minimum Operating Temperature | -20°C |
| Standards Met | RoHS |
