SFH 4543-BWCW ams OSRAM, 950nm IR LED, SMR SMD package

RS Stock No.:: 124-9105
Mfr. Part No.:: SFH 4543-BWCW
Brand:: ams OSRAM

SFH 4543-BWCW ams OSRAM, 950nm IR LED, SMR SMD package

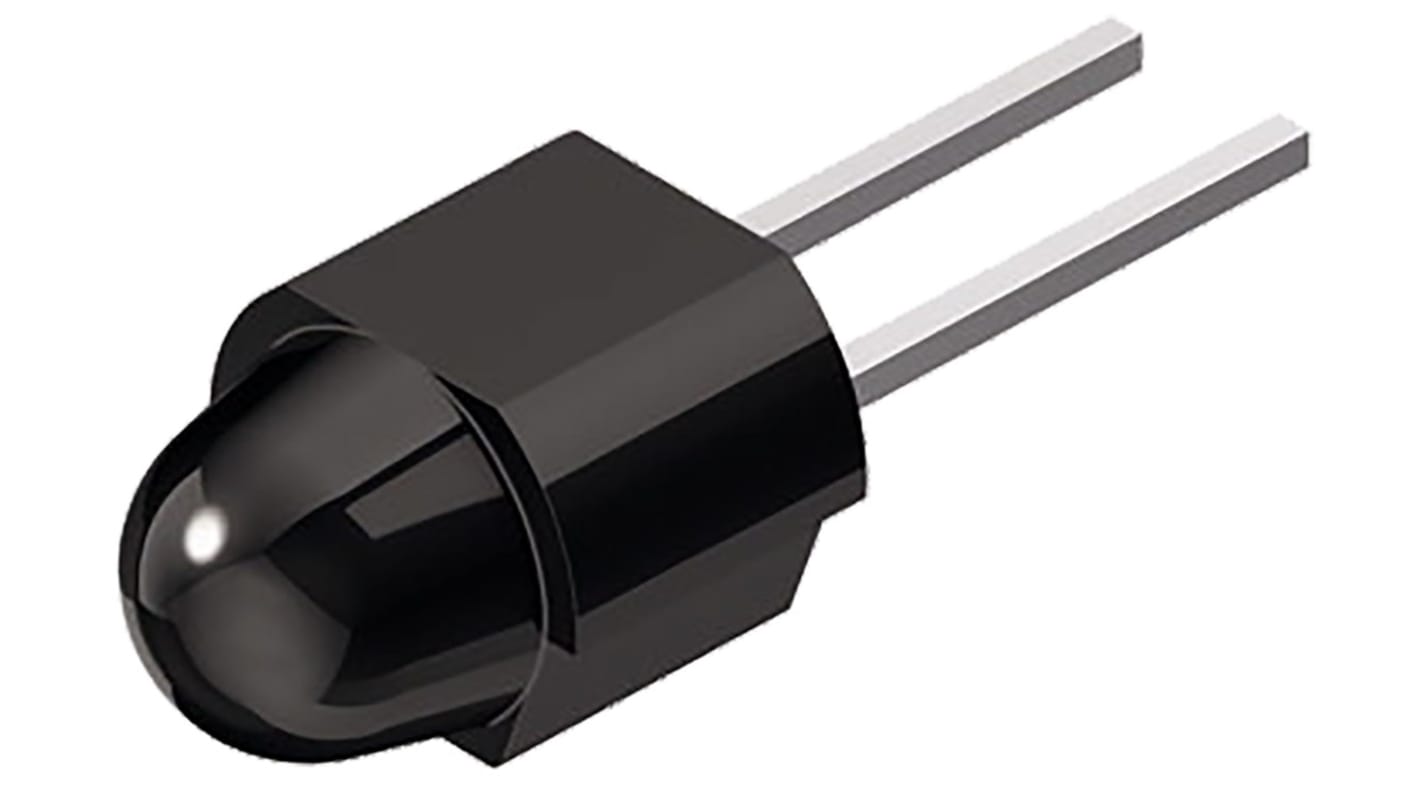

This image is representative of the product range

360 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 20)

$1.058

(exc. GST)

$1.164

(inc. GST)

Units	Per unit	Per Pack*
20 - 240	$1.058	$21.16
260 - 480	$1.031	$20.62
500 +	$1.015	$20.30
*price indicative

RS Stock No.:: 124-9105
Mfr. Part No.:: SFH 4543-BWCW
Brand:: ams OSRAM

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

OSRAM SMR Series IR LEDs

This range of Infrared (IR) LEDs, from OSRAM Opto Semiconductors, are in a SMR® (Surface Mount Radial) package. These through-hole IR LEDs come with a range of different lead options. The SMR® series are high power IR LEDs with short switching times. Suitable applications for these devices include; sensor technology, discrete interrupters and discrete optocouplers.

Features of the SMR® IR LEDs:
SMR® through-hole package
Different lead types
Suitable for surface mounting (SMT)
High reliability

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Infrared (IR) Light Emitters, OSRAM Opto Semiconductors

Specifications

Attribute	Value
Peak Wavelength	950nm
Package Type	SMR
Radiant Flux	65mW
Radiant Intensity	160 → 500mW/sr
Mounting Type	Surface Mount
Angle of Half Intensity	±10 °
Number of LEDs	1
Number of Pins	2
Dimensions	6 (Dia.) x 7.7mm
Lens Shape	Dome
