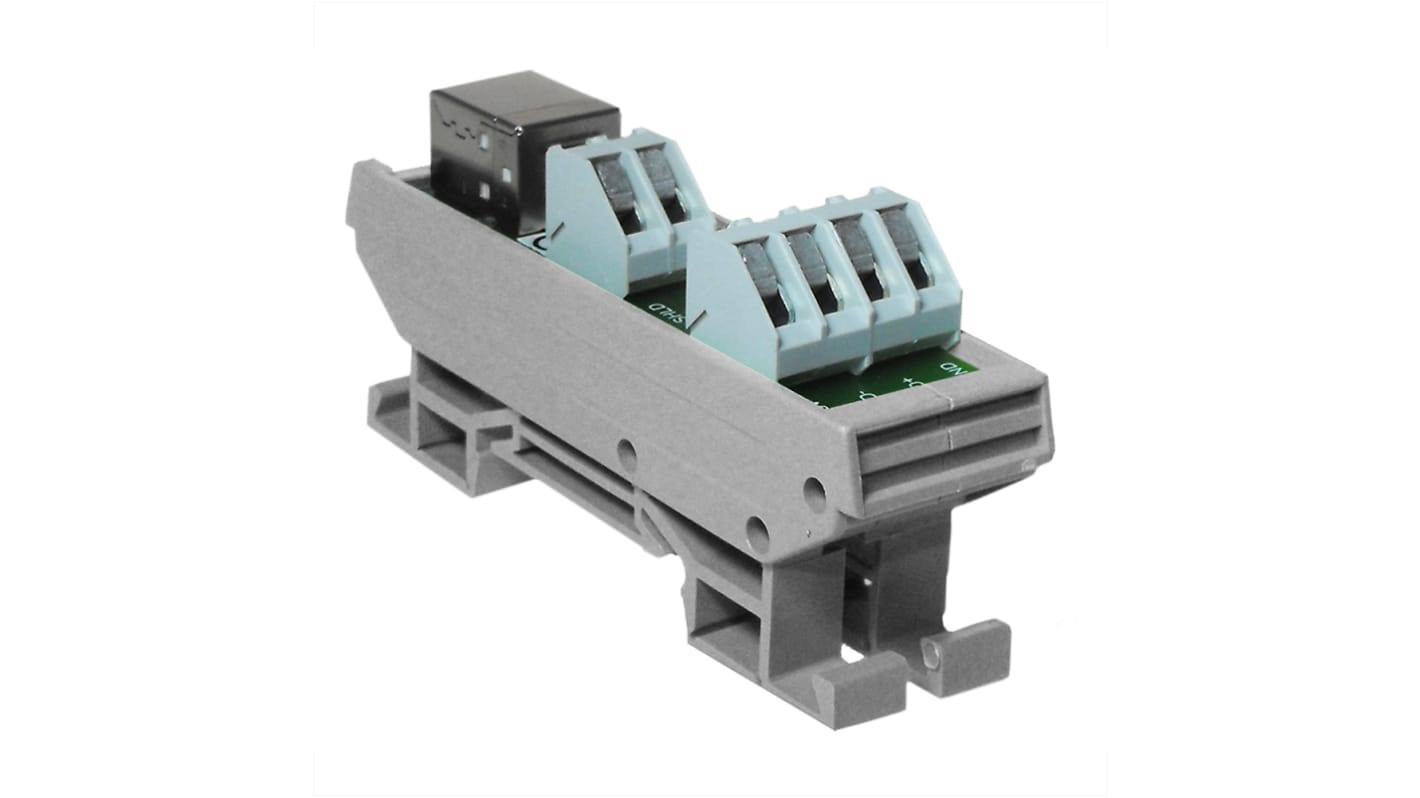

CAMDENBOSS Screw Terminal Interface Module, Female, 30 V dc, 100mA, DIN Rail Mount

  • RS Stock No. 760-8828
  • Mfr. Part No. CIM/USBB
  • Manufacturer CAMDENBOSS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

USB Interface Modules

A range of USB type socket to 45° screw terminal interface modules. The terminals are marked with +5V, D-, D+ and GND. These modules have seperate shield connection and are mountable on 35mm DIN rail.

Specifications
Attribute Value
Gender Female
Wire Size 30 → 12 AWG
Connector Type Screw Terminal
Body Orientation Straight
Mounting Type DIN Rail Mount
Voltage Rating 30 V dc
Current Rating 100mA
Cable CSA 0.2 → 4mm²
Dimensions 26 x 83 x 41mm
Depth 41mm
Length 26mm
Width 83mm
19 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 53.54
(exc. GST)
$ 58.89
(inc. GST)
units
Per unit
1 +
$53.54
