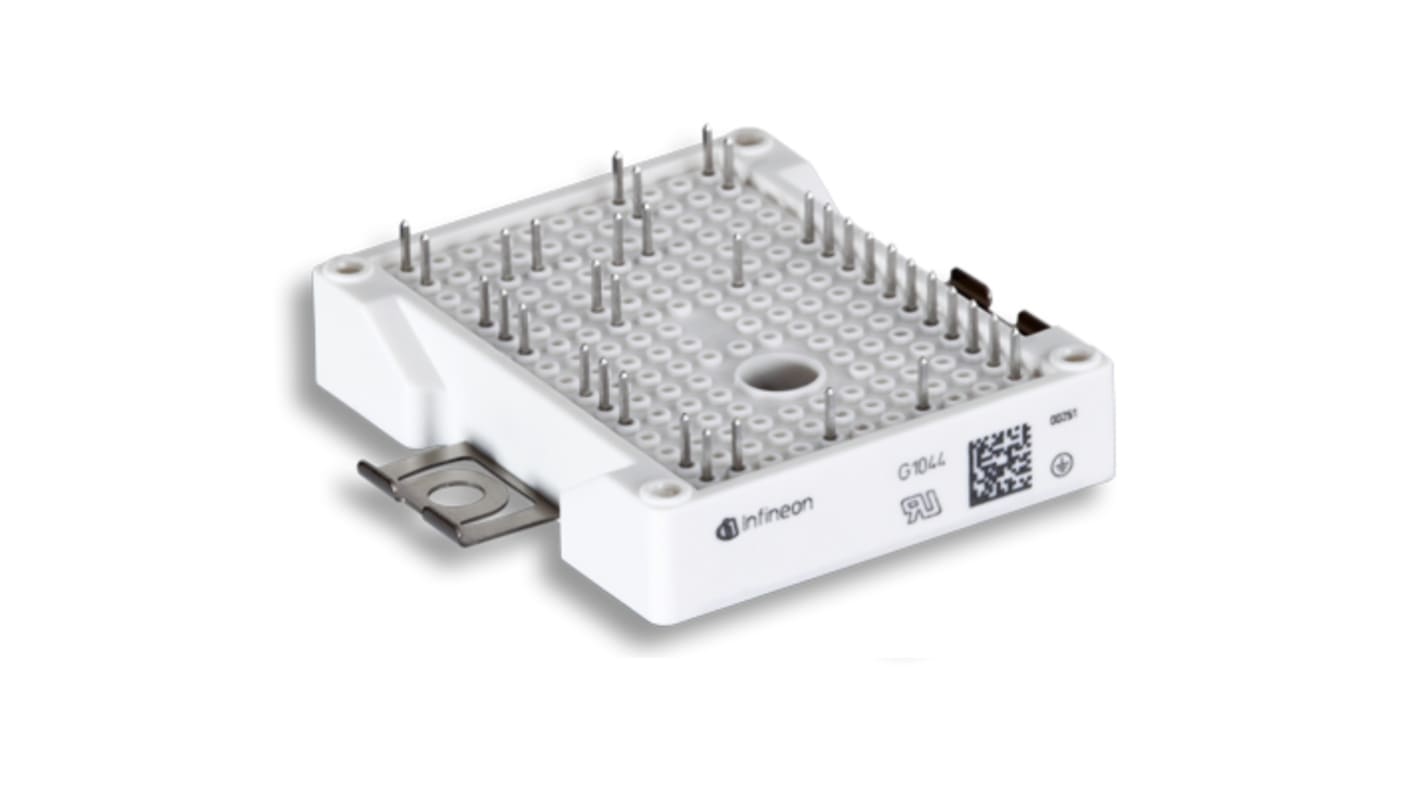

Infineon FS75R12W2T4BOMA1 IGBT Module, 107 A 1200 V Module, Panel Mount
- RS Stock No.:
- 273-7410
- Mfr. Part No.:
- FS75R12W2T4BOMA1
- Brand:
- Infineon
On back order for despatch 30/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tray of 15)
$159.532
(exc. GST)
$175.485
(inc. GST)
| Units | Per unit | Per Tray* |
| 15 - 90 | $159.532 | $2,392.98 |
| 105 + | $146.236 | $2,193.54 |
| *price indicative | ||
- RS Stock No.:
- 273-7410
- Mfr. Part No.:
- FS75R12W2T4BOMA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon IGBT module has rugged mounting due to integrated mounting clamps. This IGBT module features a VCEsat with positive temperature coefficient and Al2O3 substrate with low thermal resistance. It is suitable for servo drives, UPS system, air conditioning and motor drives applications.
Low VCEsat
Trench IGBT 4
Compact design
Low switching losses
Solder contact technology
Trench IGBT 4
Compact design
Low switching losses
Solder contact technology
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 107 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | +/-20V |
| Maximum Power Dissipation | 375 W |
| Package Type | Module |
| Mounting Type | Panel Mount |
