TE Connectivity LGA Surface Prototyping IC Socket
- RS Stock No.:
- 185-8692
- Mfr. Part No.:
- 2299804-3
- Brand:
- TE Connectivity

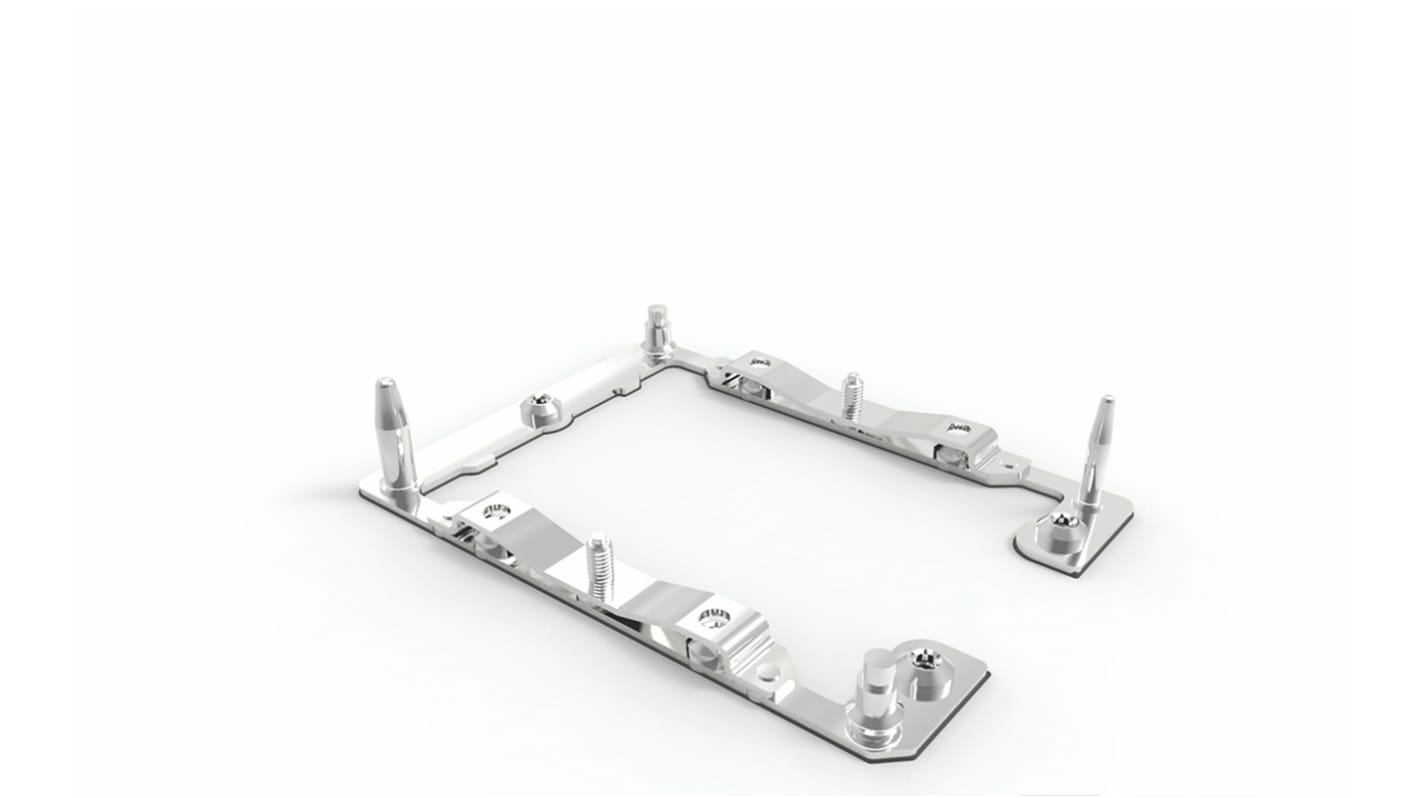

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 185-8692
- Mfr. Part No.:
- 2299804-3
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| IC Socket Type | Prototyping Socket | |
| Package Type | LGA | |
| Product Type | IC Socket | |
| Contact Material | Stainless Steel | |
| Minimum Operating Temperature | -55°C | |
| Device Mount Type | Surface | |
| Socket Mount Type | Surface | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Housing Material | Stainless Steel | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
IC Socket Type Prototyping Socket | ||
Package Type LGA | ||
Product Type IC Socket | ||
Contact Material Stainless Steel | ||
Minimum Operating Temperature -55°C | ||
Device Mount Type Surface | ||
Socket Mount Type Surface | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Housing Material Stainless Steel | ||
TE Connectivity’s (TE) new LGA 3647 socket solution meets the next-generation designs of Intel’s new CPU processors for higher performance and better system scaling. As one of a limited number of suppliers of this technology, TE is your dependable socket partner to support current and future Intel CPU processor designs.
Two-piece design for increased reliability: First LGA socket to feature a two-piece design that improves issues with warpage and offers better coplanarity and reliability
Dependable partner: As new generations of chip platforms are developed, TE will offer the latest LGA sockets for your designs
APPLICATIONS
Servers
Data Centers
High Performance Computing (HPC)
