- RS Stock No.:
- 233-7989
- Mfr. Part No.:
- GMDIOS00
- Brand:
- Red Lion
On back order for despatch 25/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$827.50
(exc. GST)
$910.25
(inc. GST)
Units | Per unit |
1 + | $827.50 |
- RS Stock No.:
- 233-7989
- Mfr. Part No.:
- GMDIOS00
- Brand:
- Red Lion
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

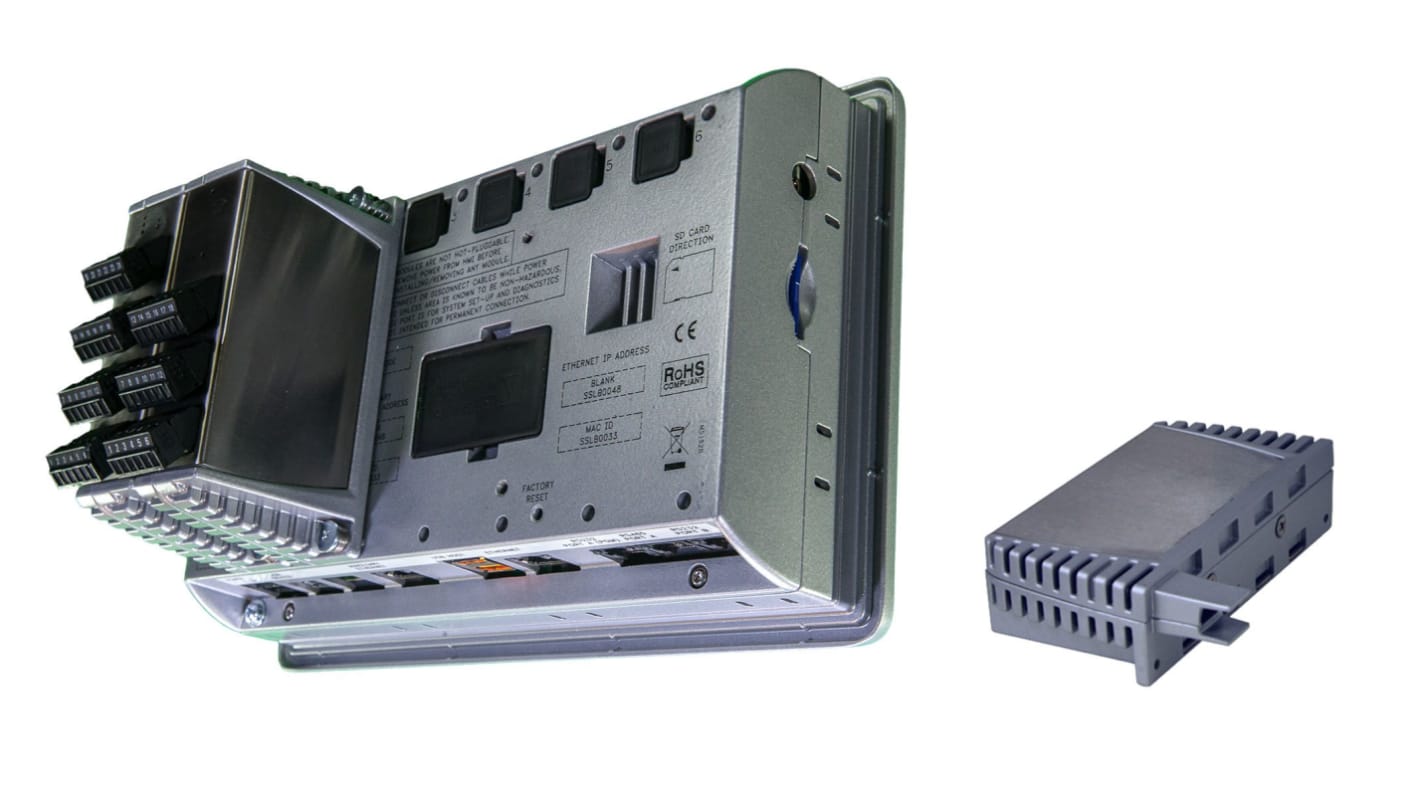

The Red Lion Graphite series digital I/O module designed for use with the Graphite products. This module offers eight inputs and six outputs that can be used to monitor contact or sensor inputs and actuate relays, solenoids, PLC inputs, etc. The inputs accept standard DC inputs or contact closures, and are configured for Sink/Source signals via external switches. Additionally, each input has a switch selectable input filter that can be used to prevent contact bounce.
Adds Digital I/O Capability to the Graphite Series
8 DC Voltage Inputs, 6 Relay Outputs
Inputs Isolated from Outputs
Inputs Independently Configurable for High or Low Active State
Inputs Independently Switch Selectable for High or Low Frequency Signals
Relay (Form-A) Output Model
8 DC Voltage Inputs, 6 Relay Outputs
Inputs Isolated from Outputs
Inputs Independently Configurable for High or Low Active State
Inputs Independently Switch Selectable for High or Low Frequency Signals
Relay (Form-A) Output Model
Specifications
Attribute | Value |
---|---|
Accessory Type | I/O Modules |
For Use With HMI | Graphite Series Products |
Software Version | Crimson, Window |
