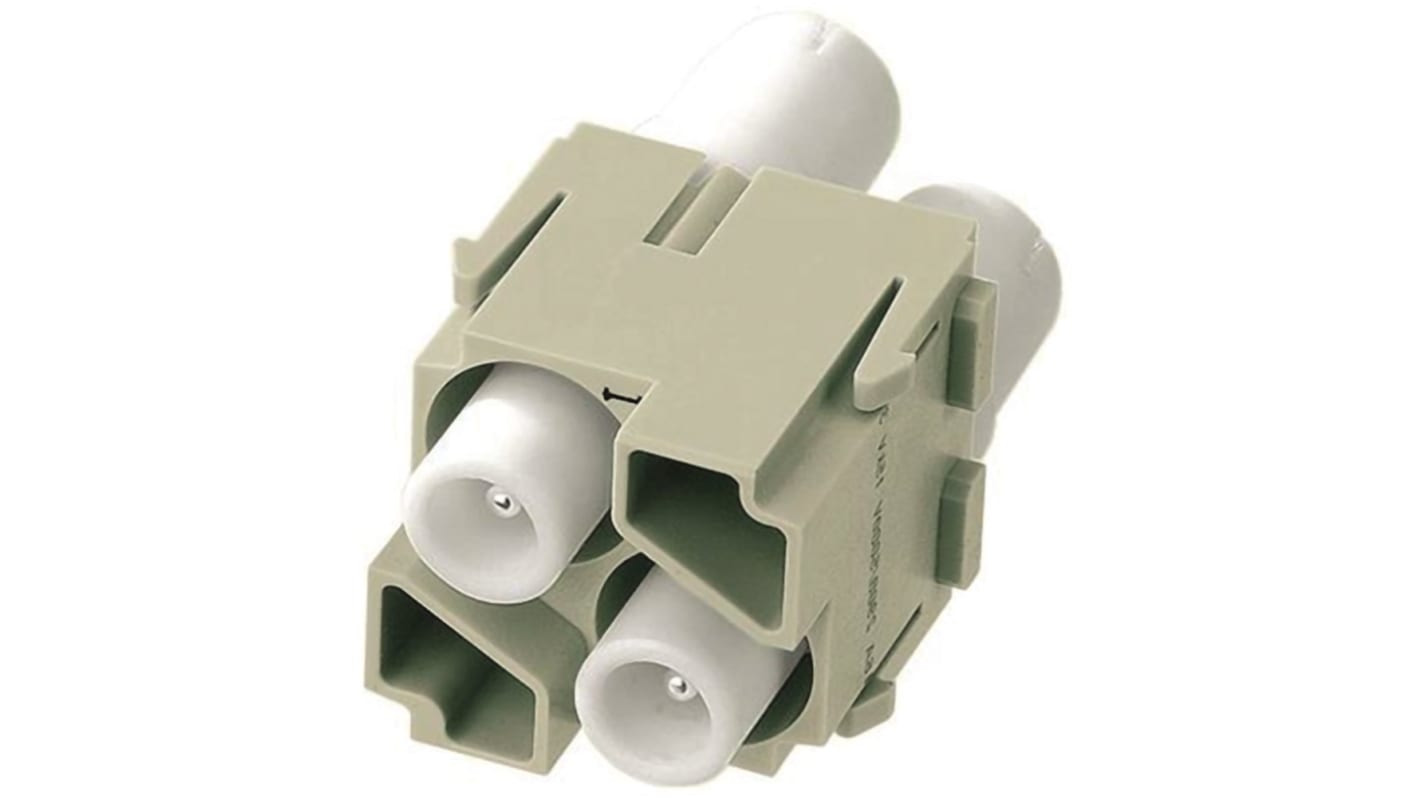

HARTING Heavy Duty Power Connector Module, 16A, Male, Han-Modular Series, 2 Contacts
- RS Stock No.:
- 843-0103
- Mfr. Part No.:
- 09140023021
- Brand:
- HARTING
17 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$240.14
(exc. GST)
$264.15
(inc. GST)
Units | Per unit |
---|---|
1 - 99 | $240.14 |
100 - 499 | $237.34 |
500 + | $232.32 |
- RS Stock No.:
- 843-0103
- Mfr. Part No.:
- 09140023021
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Han HV Module
Male and female Han HV modules for high voltage applications, rated at 16A and can utilise Han E crimp contacts. Each Han HV module accepts two contacts.
Rated at 16A, 5000V
Over 500 mating cycles
Operating temperature range -40 to +125° C
Over 500 mating cycles
Operating temperature range -40 to +125° C
Standards
DINE EN 61984, DIN VDE0115, DIN EN 60664-1
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
Specifications
Attribute | Value |
---|---|
Current Rating | 16A |
Gender | Male |
Series | Han-Modular |
Type | Connector Module |
Termination Method | Crimp |
Voltage Rating | 5 kV |
Number of Contacts | 2 |
Series Number | 0914 |
