HARTING Heavy Duty Power Connector Module, 16 A, HAN Modular Series Male, 5 Contacts
- RS Stock No.:
- 173-7572
- Mfr. Part No.:
- 09140052601
- Brand:
- HARTING

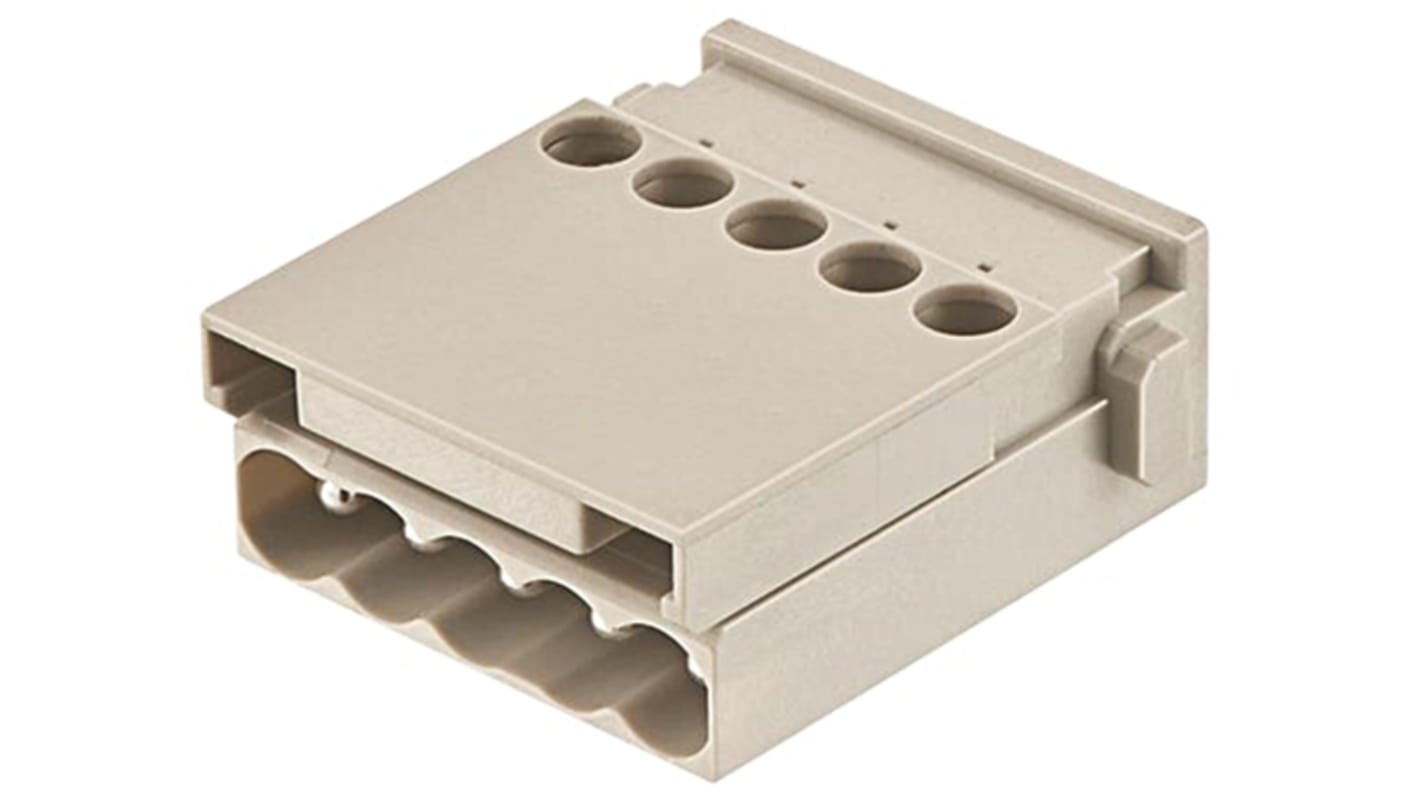

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
$50.16
(exc. GST)
$55.18
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 16 unit(s) shipping from 16 March 2026
- Plus 42 unit(s) shipping from 23 March 2026
- Plus 178 unit(s) shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | $25.08 | $50.16 |
| 10 + | $22.57 | $45.14 |
*price indicative
- RS Stock No.:
- 173-7572
- Mfr. Part No.:
- 09140052601
- Brand:
- HARTING
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Current Rating | 16 A | |
| Product Type | Heavy Duty Power Connector Module | |
| Series | HAN Modular | |
| Sub Type | Connector Module | |
| Connector Gender | Male | |
| For Use With | Industrial Connectors | |
| Pole Format | 5 | |
| Number of Rows | 1 | |
| Voltage | 400 V | |
| Mount Type | Cable | |
| Standards/Approvals | No | |
| Number of Contacts | 5 | |
| Orientation | Straight | |
| Minimum Wire Size mm² | 0.5mm² | |
| Contact Material | Polycarbonate | |
| Maximum Wire Size mm² | 2.5mm² | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Current Rating 16 A | ||
Product Type Heavy Duty Power Connector Module | ||
Series HAN Modular | ||
Sub Type Connector Module | ||
Connector Gender Male | ||
For Use With Industrial Connectors | ||
Pole Format 5 | ||
Number of Rows 1 | ||
Voltage 400 V | ||
Mount Type Cable | ||
Standards/Approvals No | ||
Number of Contacts 5 | ||
Orientation Straight | ||
Minimum Wire Size mm² 0.5mm² | ||
Contact Material Polycarbonate | ||
Maximum Wire Size mm² 2.5mm² | ||
Han E Modular Screw Terminal Modules
A range of single screw terminal clamp modules suitable for the Han E Modular series of heavy duty connectors.
Rated at 16A
Operating temperature range -40 to +125° C
Max wire gauge 2.5mm2
Over 500 mating cycles
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
