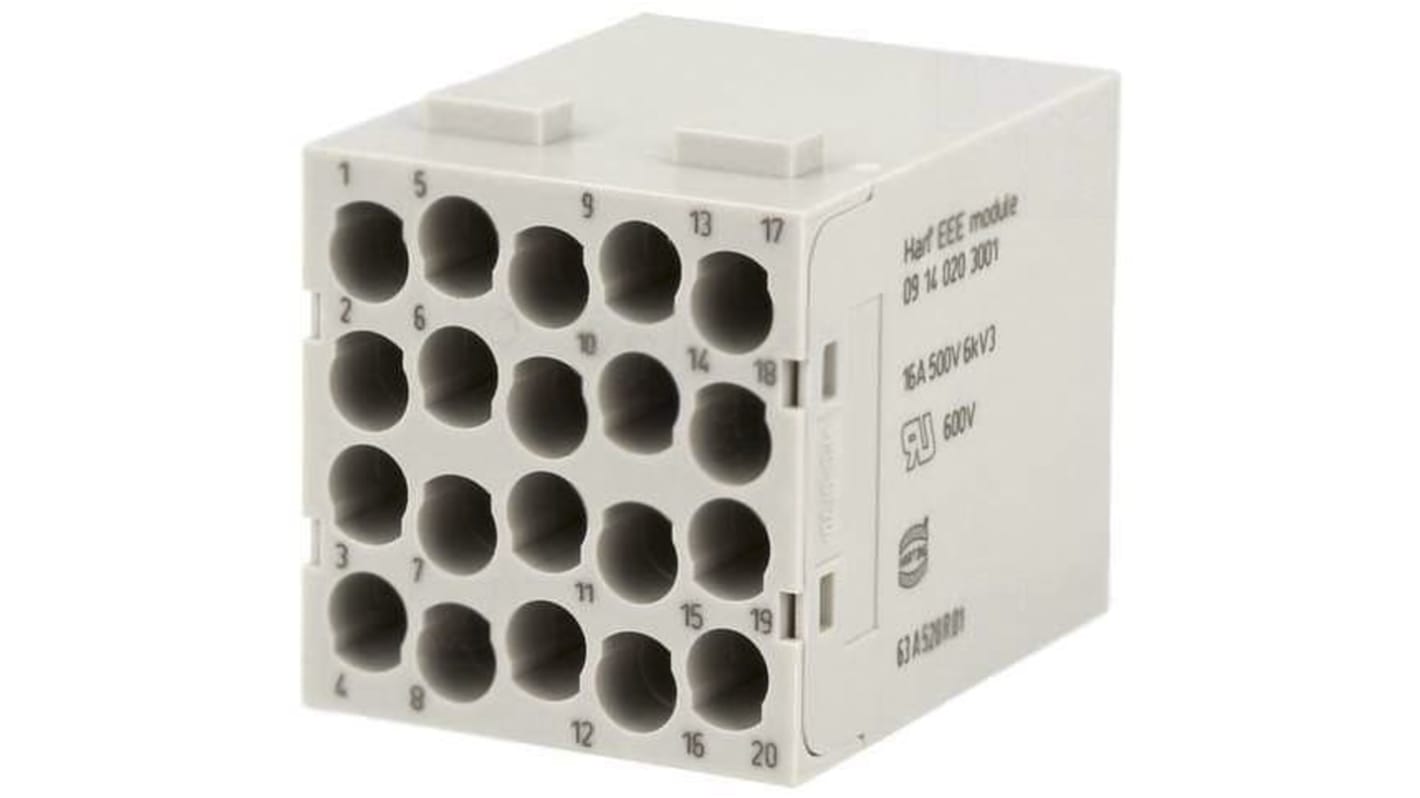

HARTING Heavy Duty Power Connector Module, 16A, HAN Modular Series Male, 20 Contacts
- RS Stock No.:
- 215-350
- Distrelec Article No.:
- 300-43-540
- Mfr. Part No.:
- 09140203001
- Brand:
- HARTING
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$38.26
(exc. GST)
$42.09
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 7 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 26 November 2026
- Plus 4 unit(s) shipping from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | $38.26 |
| 50 + | $37.69 |
*price indicative
- RS Stock No.:
- 215-350
- Distrelec Article No.:
- 300-43-540
- Mfr. Part No.:
- 09140203001
- Brand:
- HARTING
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Current Rating | 16A | |
| Product Type | Heavy Duty Power Connector Module | |
| Series | HAN Modular | |
| Sub Type | Module | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 20 | |
| Number of Rows | 4 | |
| Voltage | 500V | |
| Mount Type | Cable | |
| Standards/Approvals | No | |
| Number of Contacts | 20 | |
| Contact Material | Polycarbonate | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size mm² | 0.14mm² | |
| Orientation | Straight | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Current Rating 16A | ||
Product Type Heavy Duty Power Connector Module | ||
Series HAN Modular | ||
Sub Type Module | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 20 | ||
Number of Rows 4 | ||
Voltage 500V | ||
Mount Type Cable | ||
Standards/Approvals No | ||
Number of Contacts 20 | ||
Contact Material Polycarbonate | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size mm² 0.14mm² | ||
Orientation Straight | ||
- COO (Country of Origin):
- DE
Han EEE module
Han® EEE modules with 20 contacts.
Crimp connection.
Mating cycle: 500
Electrical data in accordance with DIN EN 61 984.
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
