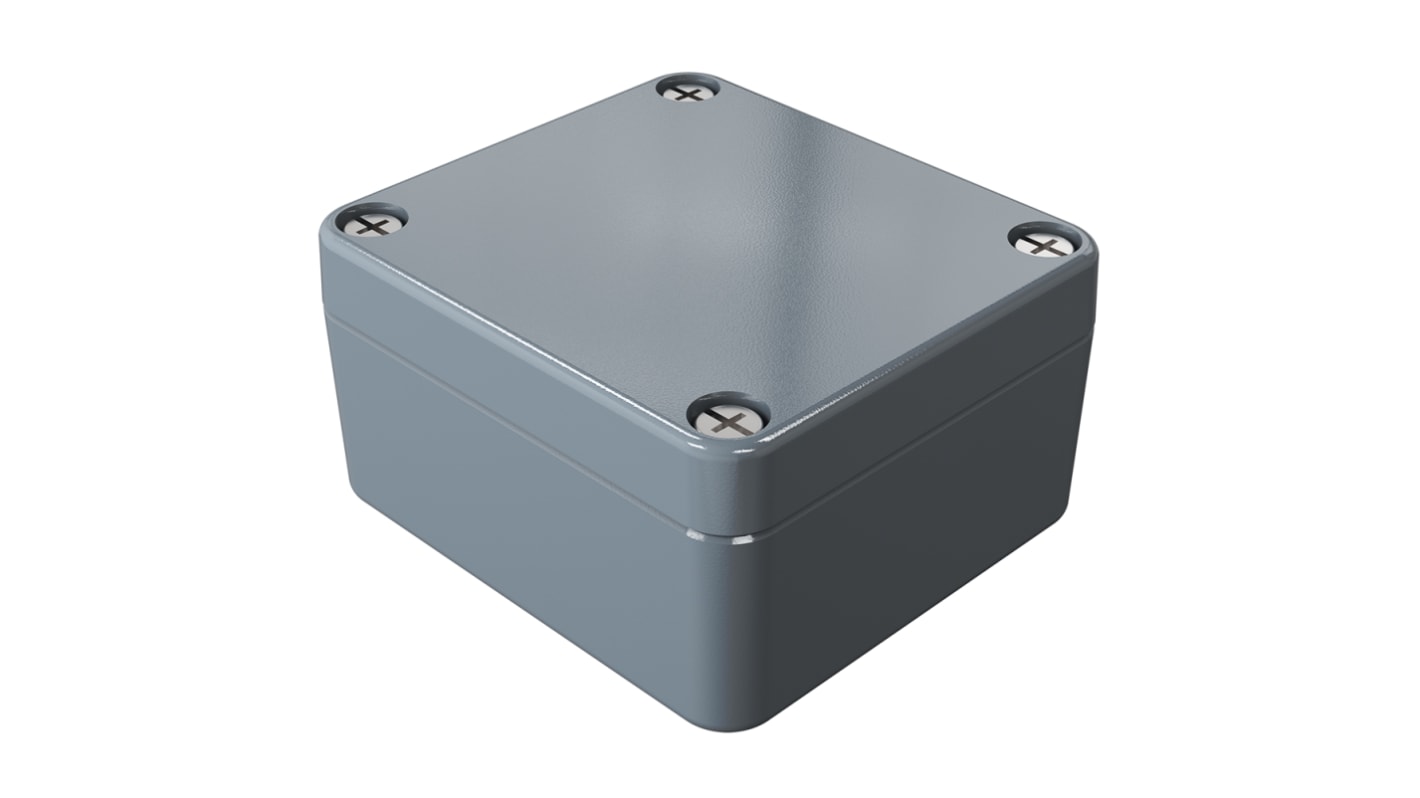

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 64 x 58 x 34mm

RS Stock No.:: 501-834
Mfr. Part No.:: 01060603
Brand:: Rose

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 64 x 58 x 34mm

Price (ex. GST) Each

$33.93

(exc. GST)

$37.32

(inc. GST)

9 In AU stock for next working day delivery

102 In Global stock for delivery within 10 working day(s)

Units	Per unit
1 - 24	$33.93
25 - 49	$33.66
50 +	$33.14

RS Stock No.:: 501-834
Mfr. Part No.:: 01060603
Brand:: Rose

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

ROSE Grey Aluminium Enclosure, 64mm Height, 58mm Width - Aluminium Standard Series - 01060603

Looking for a general-purpose storage solution for electrical components? Choose this enclosure from ROSE. It's made of die-cast aluminium, so it offers good protection against corrosion and impact. The polyurethane (PU) gasket provides a tight seal to prevent contaminants from interfering with your sensitive equipment. This unit has compact dimensions of 64 (height) x 58 (width) x 34mm (depth), making it a good choice for storing small items like switches and push buttons.

Features & Benefits

• Light weight of 177g to minimise strain on the mounting surface
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Designed for mounting on a DIN rail or fixing plate for versatile installation
• Meets UL 508A safety standards for industrial control panels
• Supplied with stainless steel fixing screws for securing the lid in place to prevent tampering

Applications

• Traffic control
• Mechanical engineering
• Industrial automation
• Telecommunications industry

Can this enclosure withstand extreme temperatures?

Yes, thanks to its broad operating temperature range of -40°C to +90°C, this enclosure is suitable for use in a variety of demanding environments.

Specifications

Attribute	Value
Body Material	Die Cast Aluminium
External Length	64 mm
External Height	34 mm
External Width	58 mm
External Dimensions	64 x 58 x 34mm
Range	Aluminium Enclosure
IP Rating	IP66
Colour	Grey
Lid Colour	Grey
Flanged	No
Shielded	No
Hazardous Area Certification	Lloyds Register, Maritime Register, UL 508
Series	Aluminium Standard
Number Of Knockouts	0
Weight	140g
IK Rating	IK09
Transparent Door	No
Gasket Material	Polyurethane
RAL Code	RAL 7001
