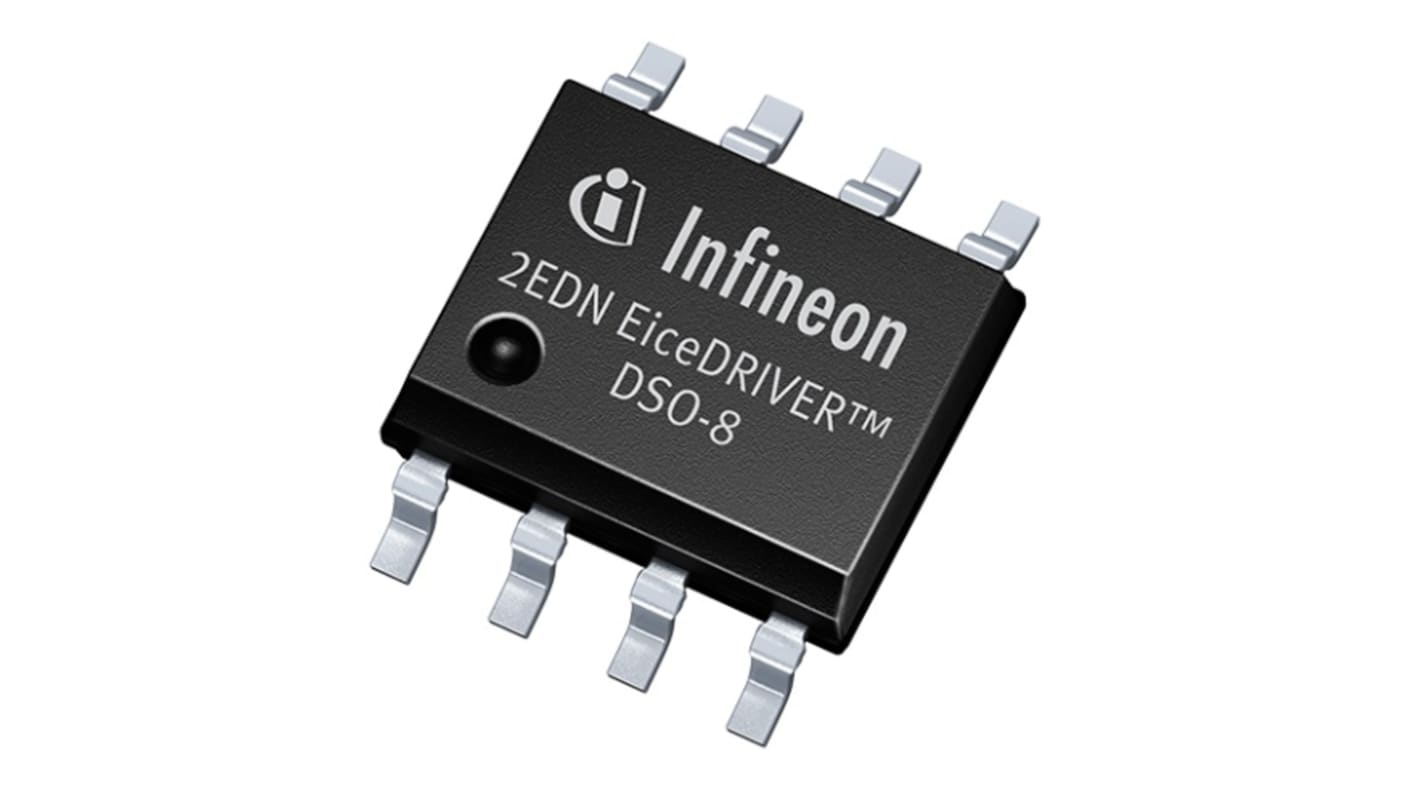

Infineon 2EDN8523FXTMA1, 5 A, 4.5 → 20V 8-Pin, PG-DSO-8-60
- RS Stock No.:
- 222-4773
- Mfr. Part No.:
- 2EDN8523FXTMA1
- Brand:
- Infineon
Available for back order.
Price (ex. GST) Each (In a Pack of 10)
$1.698
(exc. GST)
$1.868
(inc. GST)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | $1.698 | $16.98 |
| 20 - 90 | $1.668 | $16.68 |
| 100 - 240 | $1.639 | $16.39 |
| 250 - 490 | $1.61 | $16.10 |
| 500 + | $1.581 | $15.81 |
*price indicative
- RS Stock No.:
- 222-4773
- Mfr. Part No.:
- 2EDN8523FXTMA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon input signals are low voltage TTL and 3.3V CMOS-compatible with a very broad voltage handling capability of up to +20V and down to -10VDC. The unique ability to handle -10VDC at the input pins protects the device against ground bouncing. Each of the two outputs is able to sink and source a 5A current utilizing a true rail-to-rail output stage, which ensures very low impedances of 0.7Ω up to the positive and 0.55Ω down to the negative rail respectively.
Fast Miller plateau transition
Precise timing
Fast and reliable MOSFET turn-off, independent of control IC
Increased GND-bounce robustness
Saves switching diodes
Precise timing
Fast and reliable MOSFET turn-off, independent of control IC
Increased GND-bounce robustness
Saves switching diodes
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Logic Type | CMOS |
| Output Current | 5 A |
| Supply Voltage | 4.5 → 20V |
| Pin Count | 8 |
| Fall Time | 4.5ns |
| Package Type | PG-DSO-8-60 |
