RS PRO HBC, LBC Fuse Kit
- RS Stock No.:
- 420-274
- Brand:
- RS PRO
Stocked by manufacturer – available for delivery 07/04/2025
Added
Price (ex. GST) 1 Kit
$401.56
(exc. GST)
$441.72
(inc. GST)
| Kit(s) | Per Kit |
| 1 - 24 | $401.56 |
| 25 - 124 | $396.62 |
| 125 + | $326.45 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 420-274
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

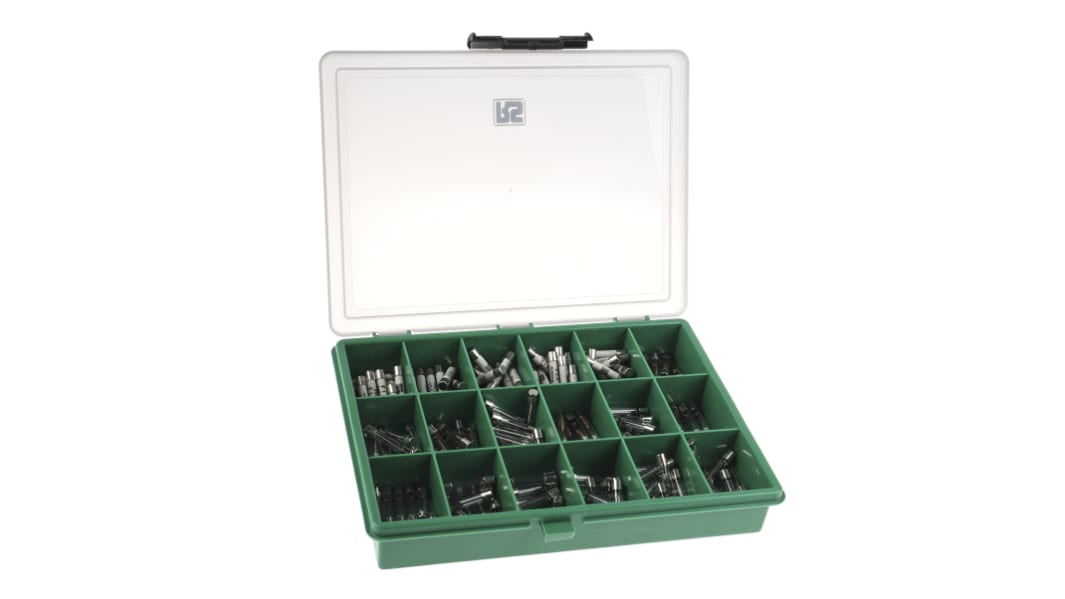

RS PRO 180 Piece General Purpose Fuse Kit (LBC/HBC)
An extensive 180 piece fuse kit covering 1A to 10A and featuring a mix of Low Breaking Capacity (LBC) and High Breaking Capacity (HBC) fuses in fast, mid delay and spiral variants.
The highly reliable range of 20mm, 1in and 1.25in fuses contains both slow blow and fast acting fuses supplied in a compartment case for easy storage and transport.
Each fuse in the kit is marked with the individual stock number to making re-ordering easy. The ideal fuse kit for maintenance, development labs and general engineering applications.
Features and Benefits
180 piece general purpose fuse kit
LBC and HBC fuse selection
Slow Blow and Fast Acting fuses
20mm, 1in and 1.25in variants
Individually marked with stock number for easy reordering
Supplied in a plastic organiser and carry case
LBC and HBC fuse selection
Slow Blow and Fast Acting fuses
20mm, 1in and 1.25in variants
Individually marked with stock number for easy reordering
Supplied in a plastic organiser and carry case
Kit Contents
180 fuses with 10 each of:
Slow Acting Fuses
HBC 20mm: 3.15A, 5A, 10A
LBC Spiral 20mm: 1A, 3.15A, 5A
LBC Spiral 20mm: 1A, 3.15A, 5A
Fast Acting Fuses
HBC 1in: 2A, 3A, 5A, 10A, 13A
LBC 20mm: 1A, 2A, 3A, 5A
LBC 1.25in: 5A, 10A, 15A
LBC 20mm: 1A, 2A, 3A, 5A
LBC 1.25in: 5A, 10A, 15A
What are LBC/HBC fuses?
LBC stands for Low Breaking Capacity and HBC stands for High Breaking Capacity. Breaking capacity, sometimes referred to as interrupting rating, is the maximum current which the fuse can interrupt safely.
HBC is suitable for direct connection to mains power supplies while LBC is only suitable to main connections where additional circuit protection is used.
HBC is suitable for direct connection to mains power supplies while LBC is only suitable to main connections where additional circuit protection is used.
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Fuse Type | HBC, LBC |
| Kit Includes | HBC (F) fuses, LBC (F) fuses, LBC (T) spring fuses |
