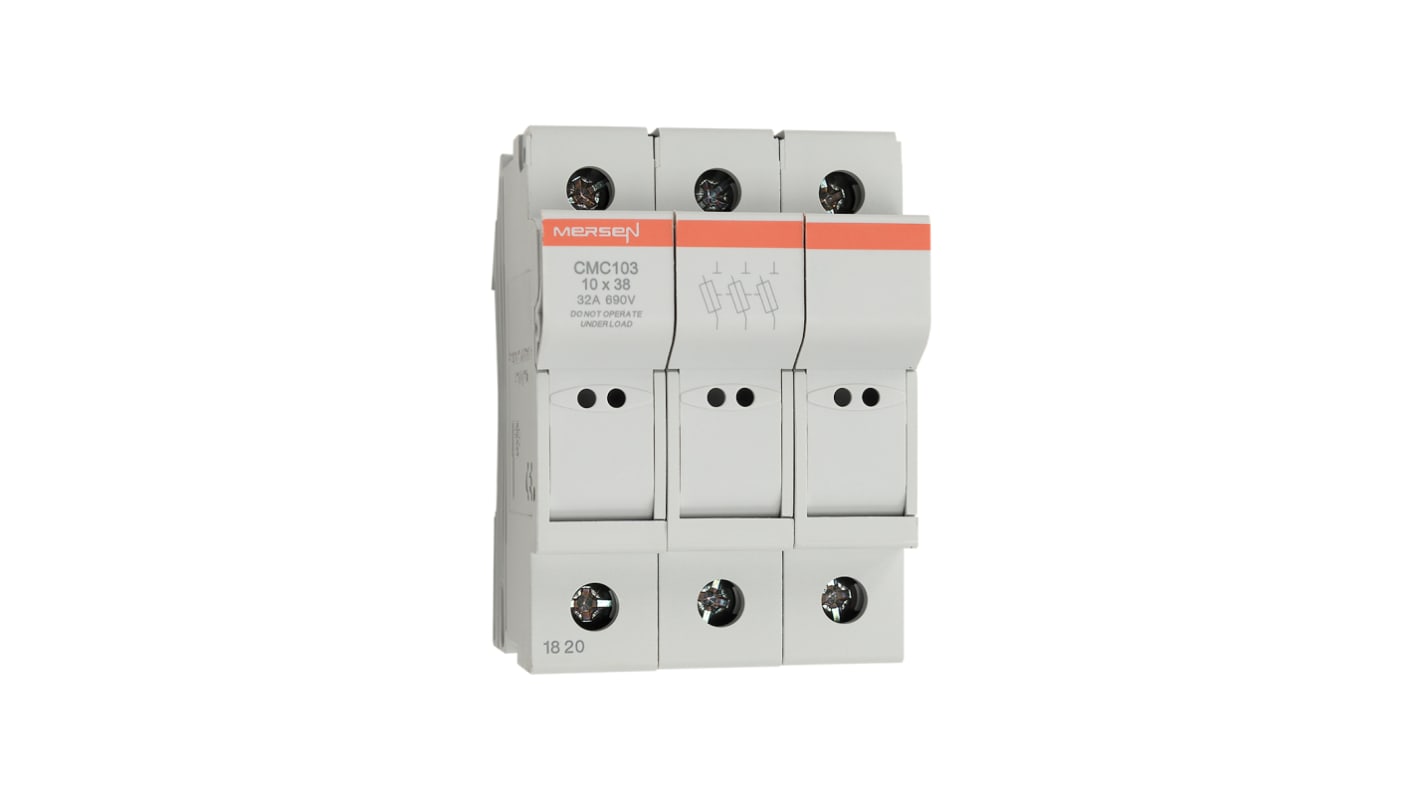

Mersen 32A Rail Mount Fuse Holder for 10 x 38 mm, 3P-Pole, 690V ac
- RS Stock No.:
- 189-5336
- Mfr. Part No.:
- E1062696 / CMC103
- Brand:
- Mersen
Get a bulk buy discount
Add 5 more to save 4%
View bulk pricing optionsSubtotal (1 unit)*
$59.95
(exc. GST)
$65.94
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 143 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | $59.95 | - |
| 5 - 9 | $57.54 | 4% |
| 10 + | $55.13 | 8% |
*price indicative
- RS Stock No.:
- 189-5336
- Mfr. Part No.:
- E1062696 / CMC103
- Brand:
- Mersen
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mersen | |
| Anti Vibration | Yes | |
| Product Type | Rail Mount Fuse Holder | |
| Range | Modulostar | |
| Current Rating | 32A | |
| Voltage | 690V ac | |
| Number of Poles | 3 | |
| Rail Type | DIN 35 mm | |
| Case Material | Thermoplastic | |
| Indicator | No | |
| Compatible Fuse Size | 10 x 38 mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60269-2, RoHS, IEC 60947-3, Marine certificates pending, REACH | |
| Series | CMC10 | |
| Select all | ||
|---|---|---|
Brand Mersen | ||
Anti Vibration Yes | ||
Product Type Rail Mount Fuse Holder | ||
Range Modulostar | ||
Current Rating 32A | ||
Voltage 690V ac | ||
Number of Poles 3 | ||
Rail Type DIN 35 mm | ||
Case Material Thermoplastic | ||
Indicator No | ||
Compatible Fuse Size 10 x 38 mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60269-2, RoHS, IEC 60947-3, Marine certificates pending, REACH | ||
Series CMC10 | ||
Mersen CMC10 Series Rail Mount Fuse Holder, 32A Current, 10x38mm Fuse size - E1062696 / CMC103
This rail-mount fuse holder provides secure accommodation for 10x38mm fuses on a 35mm DIN rail in electrical distribution assemblies. It is intended for three-pole installations where Compact rail mounting and resistance to vibration are required. The unit is designed for alternating-current systems up to 690 V and for operation across a wide ambient temperature range.
Features and Benefits:
• 32 A current rating for handling moderate-load circuits
• Thermoplastic case material reducing overall assembly weight
• Anti-vibration construction to maintain contact integrity
• Rated to operate from −40 °C to 70 °C for variable environments
• Conforms to IEC 60269‑2 and IEC 60947‑3 for compatibility
• Thermoplastic case material reducing overall assembly weight
• Anti-vibration construction to maintain contact integrity
• Rated to operate from −40 °C to 70 °C for variable environments
• Conforms to IEC 60269‑2 and IEC 60947‑3 for compatibility
Applications
• Used for protection in industrial switchgear panels
• Suitable for rail in rolling stock equipment
• Ideal for distribution blocks in renewable-energy systems
• Used with three-phase control circuits on DIN rails
• Suitable for installations requiring RoHS and REACH compliance
• Suitable for rail in rolling stock equipment
• Ideal for distribution blocks in renewable-energy systems
• Used with three-phase control circuits on DIN rails
• Suitable for installations requiring RoHS and REACH compliance
What voltage systems can it be used on?
It is suitable for alternating-current systems up to 690 V.
How many poles does the unit support?
The holder is configured for three poles to protect multi-phase circuits.
What material is the enclosure MADE from?
The housing is manufactured from a thermoplastic material.
Which standards and environmental registrations apply?
It meets IEC 60269‑2 and IEC 60947‑3 and is listed as RoHS and REACH compliant.
Is it appropriate for marine environments?
The design includes anti-vibration features and marine certificates are pending.
