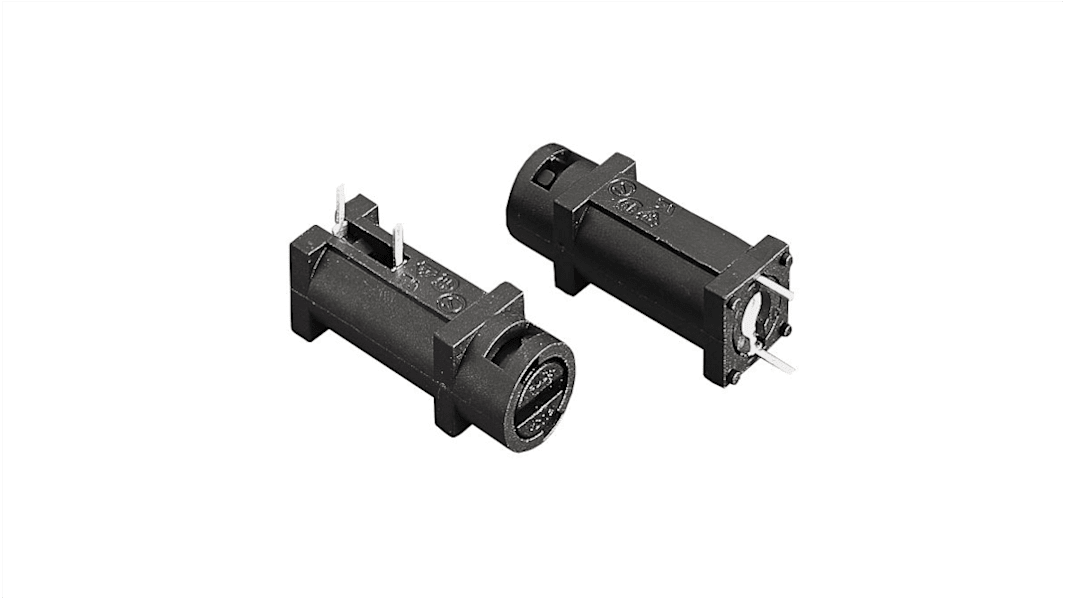

Bulgin 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac
- RS Stock No.:
- 415-058
- Mfr. Part No.:
- FX0457
- Brand:
- Bulgin
Stock check temporarily unavailable - call for stock availability
Price (ex. GST) Each (In a Pack of 5)
Was $14.004
You pay
$12.798
(exc. GST)
$14.078
(inc. GST)
Units | Per unit | Per Pack* |
---|---|---|
5 - 70 | $12.798 | $63.99 |
75 - 245 | $12.638 | $63.19 |
250 - 495 | $12.404 | $62.02 |
500 - 1245 | $12.166 | $60.83 |
1250 + | $11.94 | $59.70 |
*price indicative
- RS Stock No.:
- 415-058
- Mfr. Part No.:
- FX0457
- Brand:
- Bulgin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
'Touchproof'
For 5 x 20 mm fuses
Fully touchproof contacts BS3042 standard test
Moulded bayonet fit for positive locking action
The PCB pins (1x 0.5x4.3 long) are on 10mm pitch
Body and nylon caps UL94-VO rated
Fully touchproof contacts BS3042 standard test
Moulded bayonet fit for positive locking action
The PCB pins (1x 0.5x4.3 long) are on 10mm pitch
Body and nylon caps UL94-VO rated
Approvals
UL recognised component; CSA certified; SEMKO
![](https://media.rs-online.com/t_line/L415042-02.gif)
Horizontal PCB Mount Protection Fuse Holder
From Bulgin these panel mount fuse holders, have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.
These horizontal panel mount fuse holders are protection category PC2, they have been specifically designed to accommodate 5 x 20mm size fuse and are bayonet cap/ screwdriver release.
These horizontal panel mount fuse holders are protection category PC2, they have been specifically designed to accommodate 5 x 20mm size fuse and are bayonet cap/ screwdriver release.
Features and Benefits
• Horizontal mount
• Protection category PC2
• Fuse size 5 x 20mm
• PC spills termination
• Bayonet cap/ screwdriver release
• Contacts brass, silver plated
• Polyester body, nylon cap, polyester end bung
• Protection category PC2
• Fuse size 5 x 20mm
• PC spills termination
• Bayonet cap/ screwdriver release
• Contacts brass, silver plated
• Polyester body, nylon cap, polyester end bung
PCB Mounting
Voltage Rating 250V.
Specifications
Attribute | Value |
---|---|
Fuse Holder Type | PCB Mount |
Fuse Size | 5 x 20mm |
Current Rating | 10A |
Voltage Rating | 250V ac |
Number of Poles | 1P |
Includes Indicator | No |
Contact Material | Tin Plated Brass |
Compatible Fuse Length | 20mm |
Terminal Type | Pin |
Protection Category | PC2 |
Series | FX |
Cap Style | Slotted |
Compatible Fuse Diameter | 5mm |
