Sensata / Cynergy3 RSF20 Series Direct Viton, Silicone Float Switch, 1 m Cable, NC, 240 V ac Max, 120 V dc Max

View all Float Switches
Bulk discount available

Subtotal (1 unit)*

$64.38

(exc. GST)

$70.82

(inc. GST)

Add to Basket
Select or type quantity
Limited stock
  • 78 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 5$64.38
6 - 11$62.80
12 +$61.63

*price indicative

RS Stock No.:
361-1798
Mfr. Part No.:
RSF26Y100RF
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Product Type

Float Switch

Mount Type

Direct

Switch Output

NC

Housing Material

Polyphenylene Sulphide

Cable Length

1m

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

100°C

Maximum AC Voltage

240V

Maximum DC Voltage

120V

Maximum Current

600mA

Gasket Material

Viton, Silicone

Standards/Approvals

NSF Approved, WRAS

Hazardous Area Certification

No

Series

RSF20

COO (Country of Origin):
CN

Sensata Cynergy3 Direct Mounting Float Switch, 1m Cable Length, NC - RSF20 Series - RSF26Y100RF

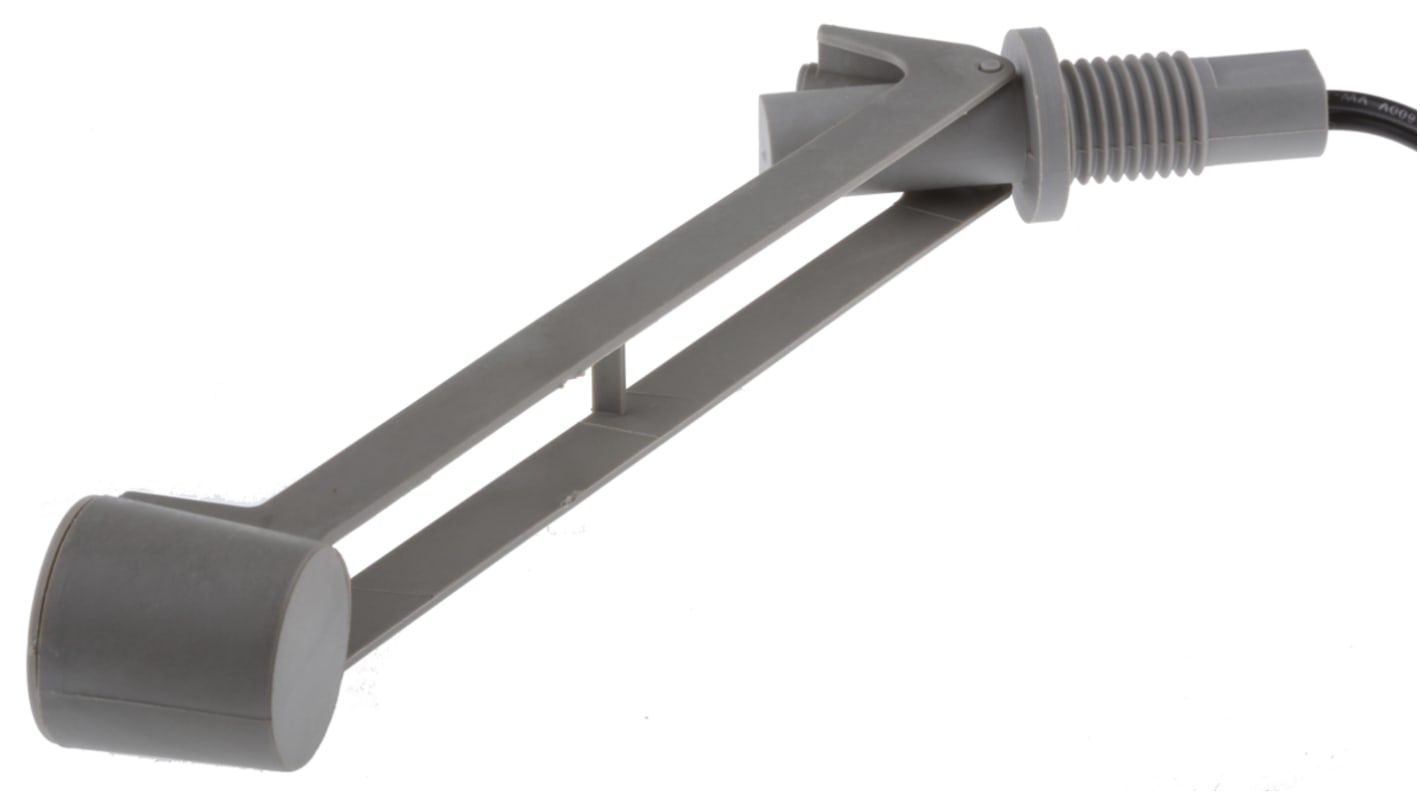

This float switch from Sensata Cynergy3 notifies you of changes in the liquid levels inside a container. The device has an extended drop float actuator that keeps the switch housing and float pivots out of the liquid. This helps to eliminate limescale, making it suitable for use in wall kettles and hot vending machine applications. When the liquid level is low, the switch remains in the closed position. The switch opens up when the liquid level rises, helping to prevent overflow when filling the container.

Features & Benefits


• M12 circular threaded terminal creates a secure connection

• Broad operating temperature range of -10°C to +100°C for use in extreme environments

• Viton silicone gasket material ensures the liquid doesn't leak through the switch fitting

• Snap-action mechanism for rapid switching action

Can this float switch be used in food industry applications?


Yes, the float switch's polyphenylene sulfide (PPS) material is a strong organic polymer that won't contaminate food items, making it safe to use in the food industry.

How long is the cable on this float switch?


The cable measures 1m long for an extended reach.

Drop Float Switch


A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank.

Float positioned below the switch in N/C position

Switch opens well before liquid level reaches the float pivot

Polypropylene and PPS are WRAS approved, products for use in hot and cold water

UL recognised (excludes 228-1964)

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Supplied with

0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).
