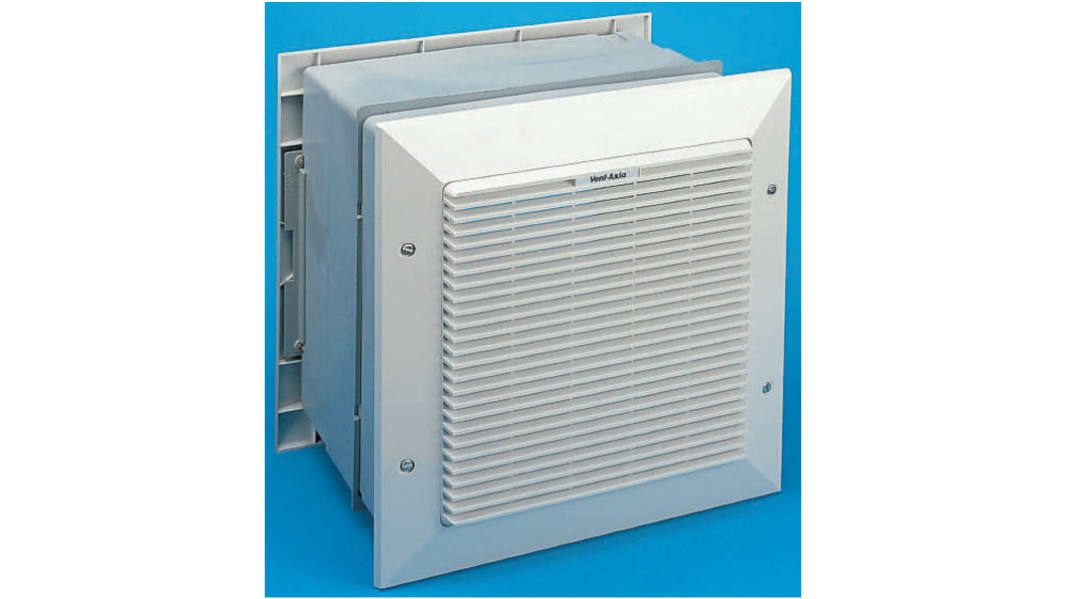

Vent-Axia TX6WL T-Series Square Wall Mounted Extractor Fan, Intake, 395m³/h, 43dB(A), Duct Size 150mm
- RS Stock No.:
- 272-160
- Mfr. Part No.:
- TX6WL
- Brand:
- Vent-Axia
9 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$1,206.95
(exc. GST)
$1,327.65
(inc. GST)
Units | Per unit |
1 + | $1,206.95 |
- RS Stock No.:
- 272-160
- Mfr. Part No.:
- TX6WL
- Brand:
- Vent-Axia
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Square Design Wall Fans
High performance intake/extract fans incorporating a speed control pack which enables high, medium or low speeds to be preset to suit room size or specific requirements.
Can be mounted at any angle
Low density 5 blade impeller
Operating temperature range -40 to +50°C
Quiet running motor with overload protection
No special tools required to dismantle
Automatic electronic shutter which can be remotely controlled with optional fan speed controller (available separately)
Made in weather resistant polymeric materials
6in. fan BEAB approved for residential use
Automatic time controller available separately
230 Vac mains powered.
Low density 5 blade impeller
Operating temperature range -40 to +50°C
Quiet running motor with overload protection
No special tools required to dismantle
Automatic electronic shutter which can be remotely controlled with optional fan speed controller (available separately)
Made in weather resistant polymeric materials
6in. fan BEAB approved for residential use
Automatic time controller available separately
230 Vac mains powered.
Wall / Ceiling Extractor Fans
Specifications
Attribute | Value |
---|---|
Fan Type | Extractor |
Function | Extraction, Intake |
Air Flow | 395m³/h |
Noise Level | 43dB(A) |
Mounting | Wall Mounted |
Face Dimensions | 303 x 310mm |
Depth | 315mm |
Face Height | 303mm |
Face Width | 310mm |
Duct Size | 150mm |
Supply Voltage | 230 V ac |
Series | T-Series |
Configuration | Square |
