Amphenol Industrial, PowerLok Plug EV Connector Female, 50 mm Cable, 250A
- RS Stock No.:
- 239-0314
- Distrelec Article No.:
- 304-22-395
- Mfr. Part No.:
- PL18X-301-50-5
- Brand:
- Amphenol Industrial
This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$126.75
(exc. GST)
$139.42
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 2 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $126.75 |
| 5 - 9 | $123.10 |
| 10 - 29 | $118.86 |
| 30 + | $114.01 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 239-0314
- Distrelec Article No.:
- 304-22-395
- Mfr. Part No.:
- PL18X-301-50-5
- Brand:
- Amphenol Industrial
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | PowerLok | |
| Current | 250A | |
| Connector Type | Plug | |
| Operating Voltage | 1000 V | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender | Female | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Cable Length | 50mm | |
| Better World Product | Yes | |
| IP Rating | IP67 | |
| Better World Claim | Renewable Energy Solution | |
| Colour | Orange | |
| For Use With | Plug | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type EV Connector | ||
Series PowerLok | ||
Current 250A | ||
Connector Type Plug | ||
Operating Voltage 1000 V | ||
Minimum Operating Temperature -40°C | ||
Connector Gender Female | ||
Termination Type Crimp | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Cable Length 50mm | ||
Better World Product Yes | ||
IP Rating IP67 | ||
Better World Claim Renewable Energy Solution | ||
Colour Orange | ||
For Use With Plug | ||
- COO (Country of Origin):
- CN

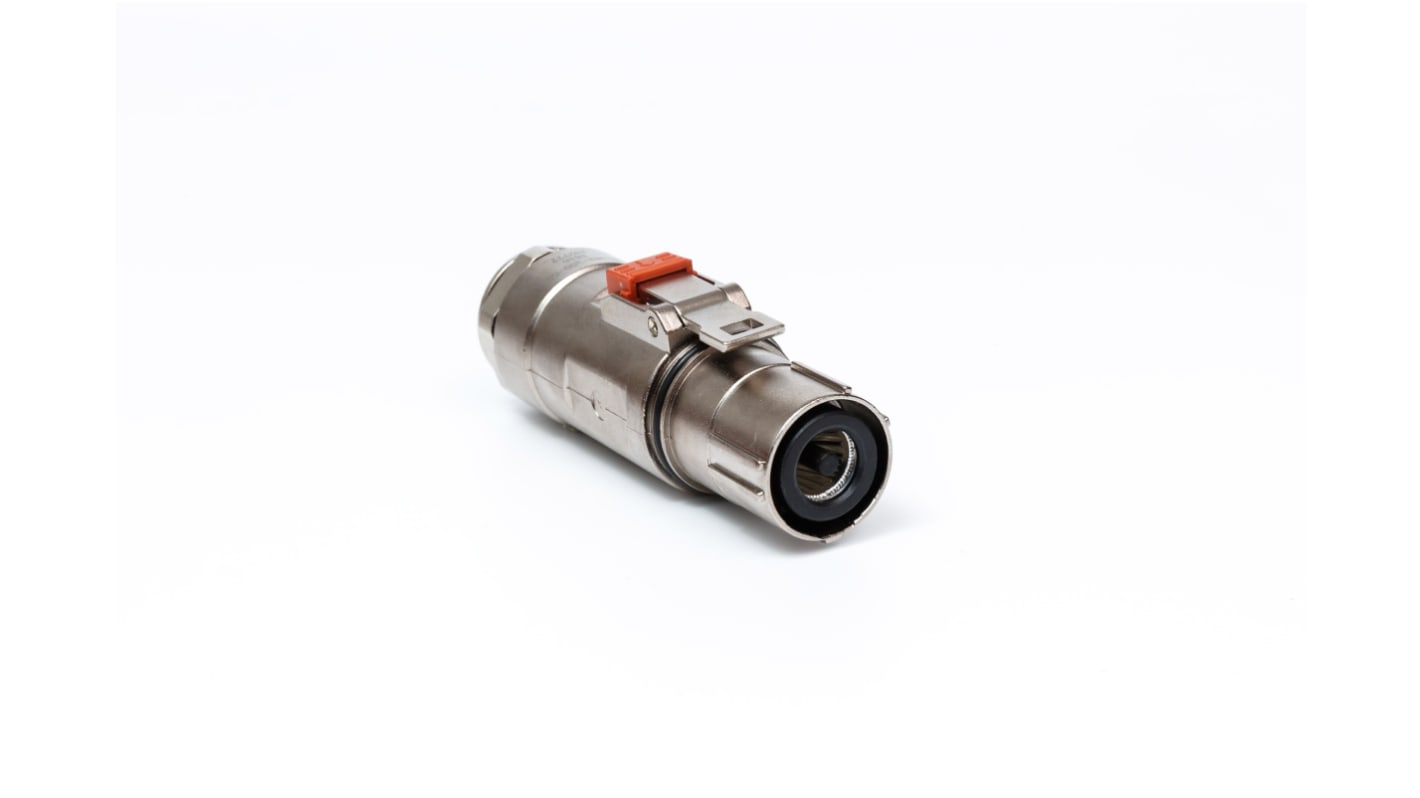

The Amphenol Industrial powerlok series 1 pole female cable plug connector with current rating of 250 A and rated voltage of 1000 V. It is a compact, metal-shell interconnect solution made for electric and hybrid transportation technologies. Equipped with automatic secondary lock, HVIL contacts, shielding and several mechanical coding options which offers maximum safety.
1 pole female cable plug connector, X-coded
For 50 mm² cable & comes in orange colour
Crimp termination
High voltage interlock loop
Operating temperature of -40°C to +125°C
