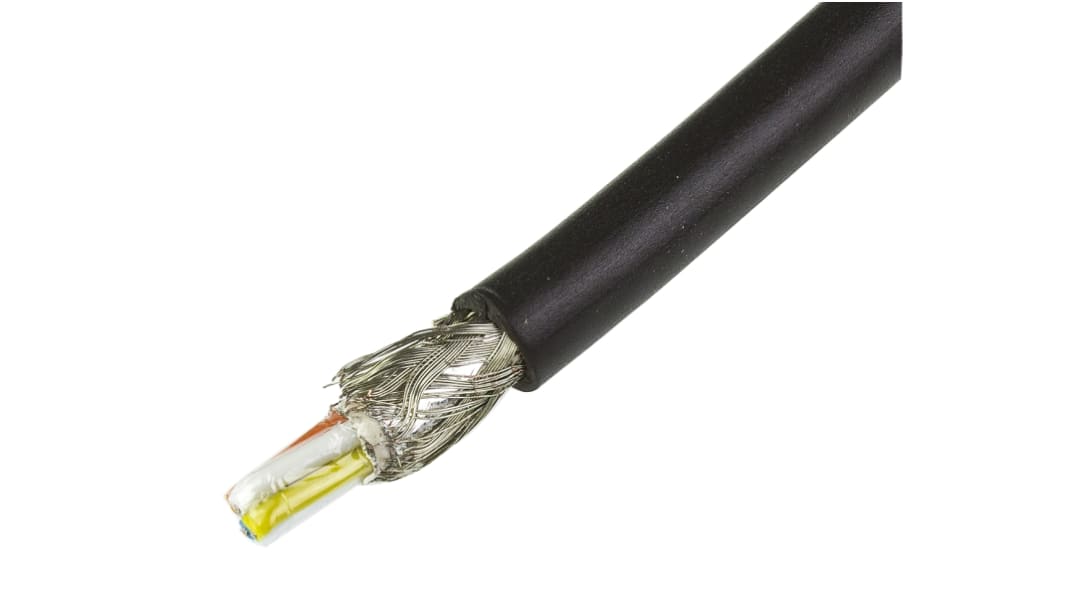

HARTING, 100 m Cat5 Ethernet Cable, Black, SF/UTP 4 Screened Polyvinyl Chloride Sheath

RS Stock No.:: 623-5921
Mfr. Part No.:: 09456000105
Brand:: HARTING

HARTING, 100 m Cat5 Ethernet Cable, Black, SF/UTP 4 Screened Polyvinyl Chloride Sheath

Subtotal (1 reel of 100 metres)*

$701.33

(exc. GST)

$771.46

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Temporarily out of stock

3 unit(s) shipping from 02 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	$701.33	$7.013

*price indicative

RS Stock No.:: 623-5921
Mfr. Part No.:: 09456000105
Brand:: HARTING

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARTING
	Product Type	Ethernet Cable
	Cable Length	100m
	LAN Category	Cat5
	Shield Type	SF/UTP
	Screened/Unscreened	Screened
	Conductor Type	Stranded
	Jacket Colour	Black
	Jacket Material	Polyvinyl Chloride
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Fire Behaviour	Flame Retardant acc. to UL 1685 (CSA FT 4)
	Standards/Approvals	No
	Core Strands	7
	Number of Cores	4
	Cross Sectional Area	0.344 mm²
	Outside Diameter	6.5 mm
	Voltage	2000 V
	Conductor Material	Copper

	Select all
	Brand HARTING
	Product Type Ethernet Cable
	Cable Length 100m
	LAN Category Cat5
	Shield Type SF/UTP
	Screened/Unscreened Screened
	Conductor Type Stranded
	Jacket Colour Black
	Jacket Material Polyvinyl Chloride
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Fire Behaviour Flame Retardant acc. to UL 1685 (CSA FT 4)
	Standards/Approvals No
	Core Strands 7
	Number of Cores 4
	Cross Sectional Area 0.344 mm²
	Outside Diameter 6.5 mm
	Voltage 2000 V
	Conductor Material Copper

PROFINet® Cat5 Outdoor Cable

Cat5 Ethernet cables are one of the most popular types of network cable for connecting computers, modems, routers and other wired internet capable devices.

Features and Benefits

• Category 5 cable in accordance with ISO/IEC 11 801

• Designed for fast installation.

• Reliable in harsh environments.

• Consistent and reliable performance which offers maximum uptime.

• Durable and hard wearing due to the moulded kink protection.

• An installation cable for connection to an FC outlet RJ-45, making it a universal application.

• Flexible and suitable for narrow bending.

• Structure 22awg, 7/0.25 flexible.

• 4 core.

• Double Shielding and UV protected.

Typical Applications

• Cat5 cables feature stringent specifications for cross talk and system noise. These Cat5 cables are ideal for networking connections between devices.

• These types of cables are also a perfect solution for structured building cabling.

• Cat5 cables can be used to carry telephone and video signals, in some cases more than one signal at a time.

• Category 5 Ethernet Cable ideal for external industrial installations and PNO approved for Profinet.

Care Instructions

When storing your patch leads, we advise that you lightly roll your cables into a loose coil, going with the natural curve of the wire. When not in use, we suggest that the cables be stored in a protective case where dust and impurities will not get lodged into the connector ends.
