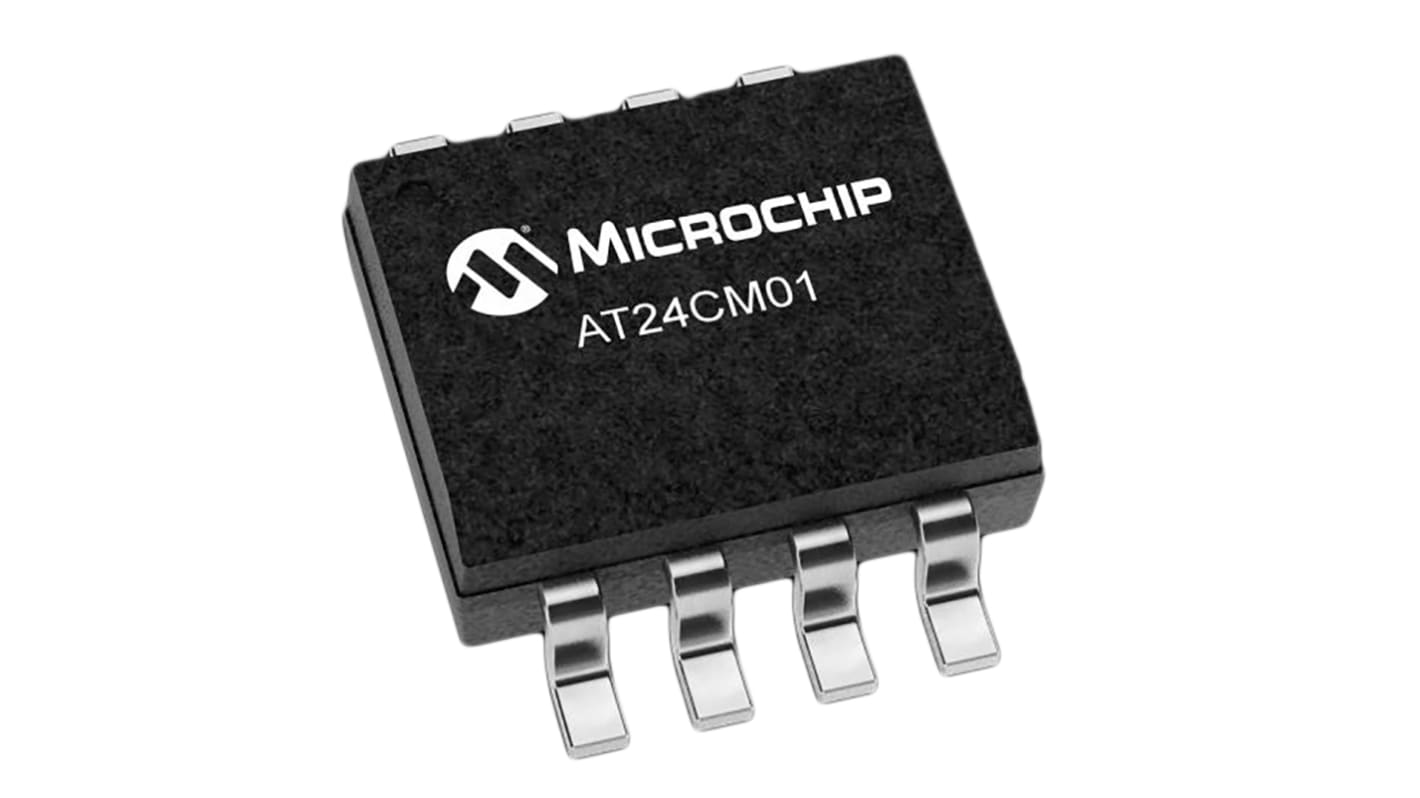

Microchip AT24CM01-SSHD-B, 1Mbit EEPROM Memory Chip, 550ns 8-Pin SOIC-8 Serial-2 Wire, Serial-I2C
- RS Stock No.:
- 197-5339
- Mfr. Part No.:
- AT24CM01-SSHD-B
- Brand:
- Microchip
300 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 100)
$2.729
(exc. GST)
$3.002
(inc. GST)
| Units | Per unit | Per Tube* |
| 100 - 400 | $2.729 | $272.90 |
| 500 + | $2.639 | $263.90 |
| *price indicative | ||
- RS Stock No.:
- 197-5339
- Mfr. Part No.:
- AT24CM01-SSHD-B
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
The Microchip AT24CM01 series EEPROM is I²C compatible (2wire) 1Mbit serial read only EEPROM. The device’s cascading feature allows up to four devices to share a common 2‑wire bus. The device is optimized for use in many industrial and commercial applications where low‑power and low‑voltage operation are essential.
Industrial temperature range is -40°C to +85°C
Schmitt triggers, filtered inputs for noise suppression
Write‑protect pin for full array hardware data protection
256-Byte Page Write Mode
Random and sequential read modes
Bidirectional data transfer protocol.
Schmitt triggers, filtered inputs for noise suppression
Write‑protect pin for full array hardware data protection
256-Byte Page Write Mode
Random and sequential read modes
Bidirectional data transfer protocol.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 1Mbit |
| Interface Type | Serial-2 Wire, Serial-I2C |
| Package Type | SOIC-8 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 128K x 8 bit |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 1.7 → 5.5V |
| Number of Bits per Word | 8bit |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Data Retention | 100yr |
| Number of Words | 128k |
| Maximum Operating Temperature | +85 °C |
| Maximum Random Access Time | 550ns |
| Minimum Operating Temperature | -40 °C |
