RS PRO Door Switch Surface 500mA, 100 V dc, 125V ac
- RS Stock No.:
- 122-0718
- Distrelec Article No.:
- 304-03-841
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$39.99
(exc. GST)
$43.99
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 88 unit(s) shipping from 14 September 2026
- Plus 526 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $39.99 |
| 5 + | $32.91 |
*price indicative
Sponsored
- RS Stock No.:
- 122-0718
- Distrelec Article No.:
- 304-03-841
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sub Type | Proximity Switch | |
| Product Type | Door Switch | |
| Mount Type | Surface | |
| Activation Type | Proximity Switch | |
| Wireless | No | |
| Switching Current | 500mA | |
| Switching Voltage | 100, 125V dc | |
| Operating Gap | 50mm | |
| Colour | Silver | |
| Depth | 150mm | |
| Height | 32mm | |
| Width | 60mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Sub Type Proximity Switch | ||
Product Type Door Switch | ||
Mount Type Surface | ||
Activation Type Proximity Switch | ||
Wireless No | ||
Switching Current 500mA | ||
Switching Voltage 100, 125V dc | ||
Operating Gap 50mm | ||
Colour Silver | ||
Depth 150mm | ||
Height 32mm | ||
Width 60mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- GB

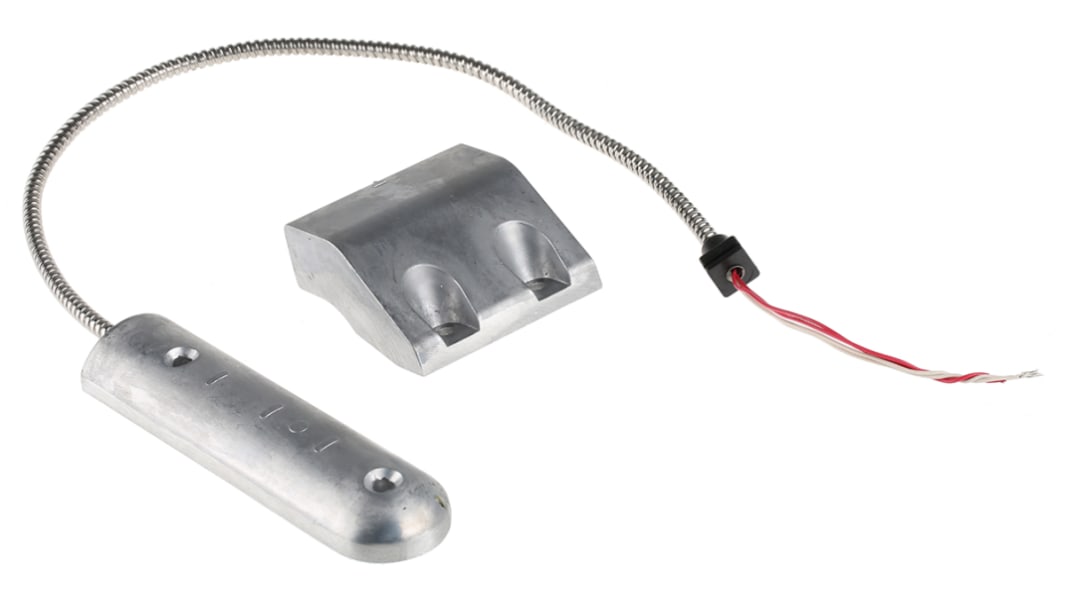

RS PRO Door Switch Surface Mount 500 mA, 100 V DC, 125 V AC
This heavy-duty door switch is part of our trusted RS PRO series – that means you can be confident of quality and consistency. It's an industrial-quality switch designed with high-voltage assemblies in mind.
Housed in a durable cast-aluminium body, this product is strong and long-lasting. It's fully potted for resistance to shock and vibration, and to keep out liquids and corrosive agents. With a 500 mm long armoured cable, this door switch can be installed even in demanding conditions. An IP67 rating means the cable is flexible and protected against moisture and dust. Any interference with the switch will trigger an alert thanks to an inbuilt tamper loop.
RoHS (Restriction of Hazardous Substances) compliant, the unit also conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards. The switch is particularly well-suited for environments contaminated by dust, dirt or liquids, such as heavy engineering plants.
Features and Benefits
• Normally open switch configuration
• Proximity switch activation
• Switching current of 500 mA
• Surface mounting
• Switch and magnet depth of 150 mm and 75 mm
• Switch and magnet height of 15 mm and 32 mm
• 500 mm long armoured cable with IP67 strain reliefs
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
