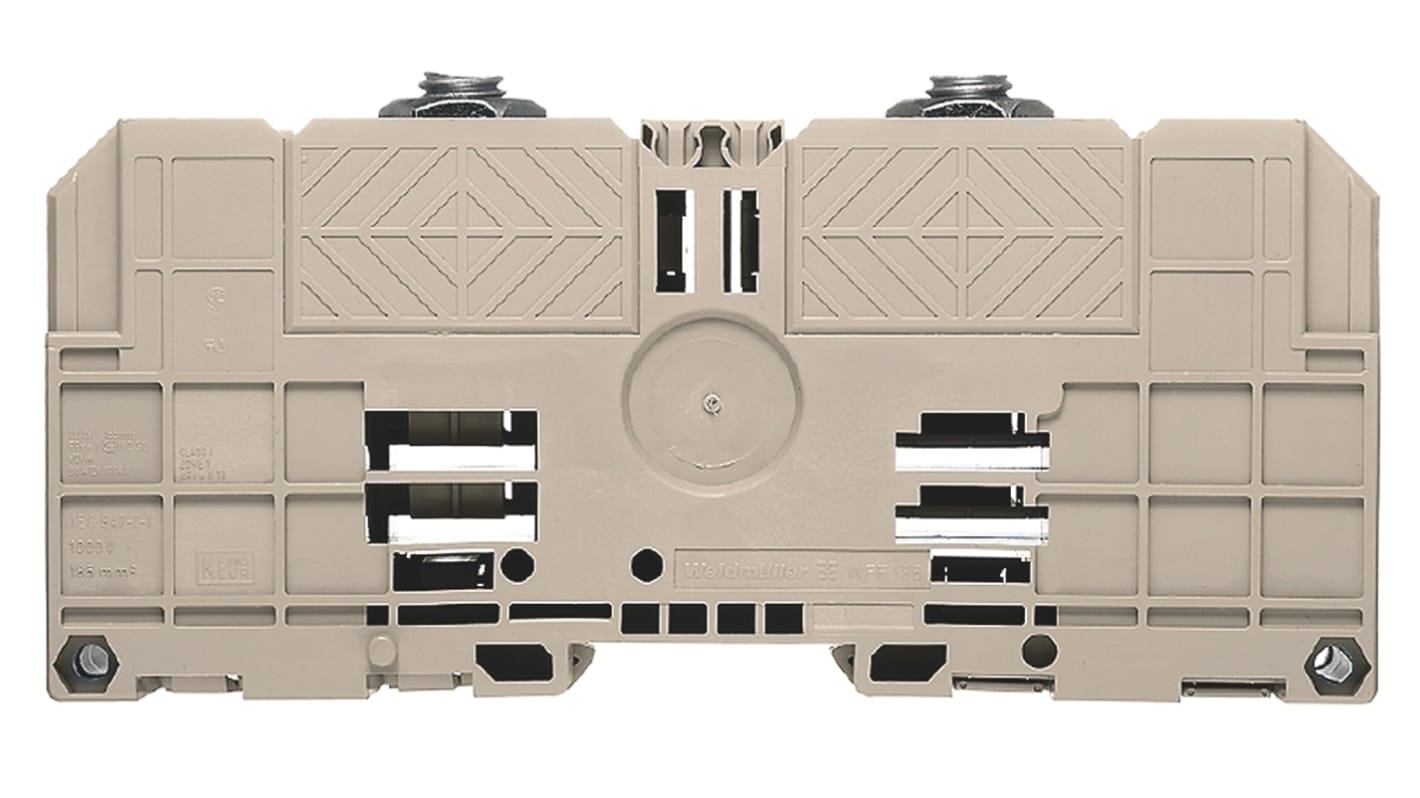

Weidmüller WFF Series Dark Beige DIN Rail Terminal Block, 25 → 240mm², Single-Level, Bolt Termination
- RS Stock No.:
- 824-0149
- Mfr. Part No.:
- 1029600000
- Brand:
- Weidmüller
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$165.07
(exc. GST)
$181.58
(inc. GST)
Units | Per unit |
1 + | $165.07 |
- RS Stock No.:
- 824-0149
- Mfr. Part No.:
- 1029600000
- Brand:
- Weidmüller
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Weidmuller DIN Rail Terminal Block, Bolt Termination Method, 466g Weight - WFF Series - WFF 185/AH -1029600000
Looking for a reliable wiring component? Put an end to disorganised wiring with this Weidmuller DIN rail terminal block. After threading your conductors into each of the terminals, simply tighten the fasteners for a safe and secure electrical connection. This nifty device snaps onto a DIN rail for speedy set-up. Thanks to its wide operating temperature range between -50°C and +120°C, it's just the thing for harsh work areas.
• Current rating of 353A for use in powerful electrical systems
• Robust Wemid body is resistant to impact and wear
• Rated impulse withstand voltage of 8kV for protection against powerful spikes
• Maximum tightening torque of 31Nm makes it a cinch to wire up
• Robust Wemid body is resistant to impact and wear
• Rated impulse withstand voltage of 8kV for protection against powerful spikes
• Maximum tightening torque of 31Nm makes it a cinch to wire up
Applications
• Lighting control systems
• Telecommunications equipment
• Building wiring
• Telecommunications equipment
• Building wiring
What wire sizes does this unit accept?
This versatile product accepts finely stranded wires in a broad cross-section range between 25 and 240mm².
How big is this terminal block?
Its compact dimensions of 287 (H) x 55 (W) x 89.5mm (D) make it a great choice for a busy DIN rail.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Dark Beige |
Number of Levels | Single |
American Wire Gauge | 10AWG |
Series | WFF |
Termination Method | Bolt |
Cable CSA | 25 → 240mm² |
Voltage Rating | 1 kV |
Current Rating | 415A |
Pitch | 55.55mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
Standards Met | CE |
Model Number | WFF 120/M12/AH |
