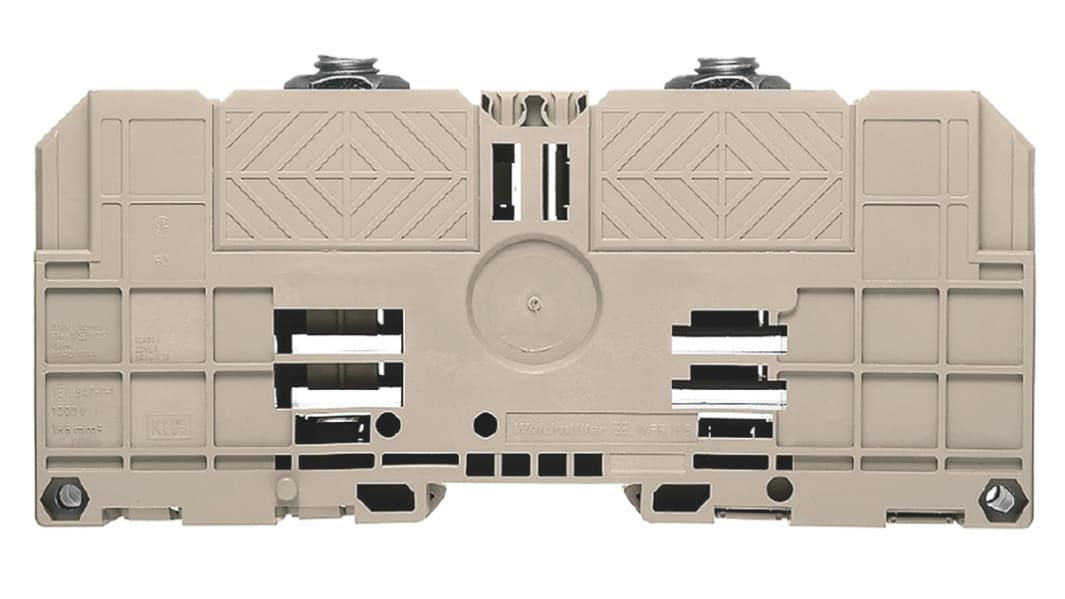

Weidmuller 1029500000 WFF Series Dark Beige, 6 → 150mm², Single-Level, Bolt Termination

Get connected to a safe and efficient wiring solution with this DIN rail terminal block from Weidmuller. It's designed for clamping two or more wires together to make an electrical connection. As the block clips into place on a standard top hat DIN rail, you can install it in a snap. The bolt-type screw terminals help to keep your wires securely in place, even when things get shaky. Its Wemid construction is resistant to heat and impact, so it can stand up to use in harsh environments.

• Self-extinguishing for safety in the event of a fire
• Wide operating temperature range between -50°C and +120°C for use in extreme conditions
• Voltage rating of 1kV for use in heavy-duty applications

• Industrial automation
• Production lines
• Electrical engineering

Yes, thanks to its rated impulse withstand voltage of 6kV, this unit can hold its own in the event of a voltage spike to help protect your equipment against electrical damage.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
