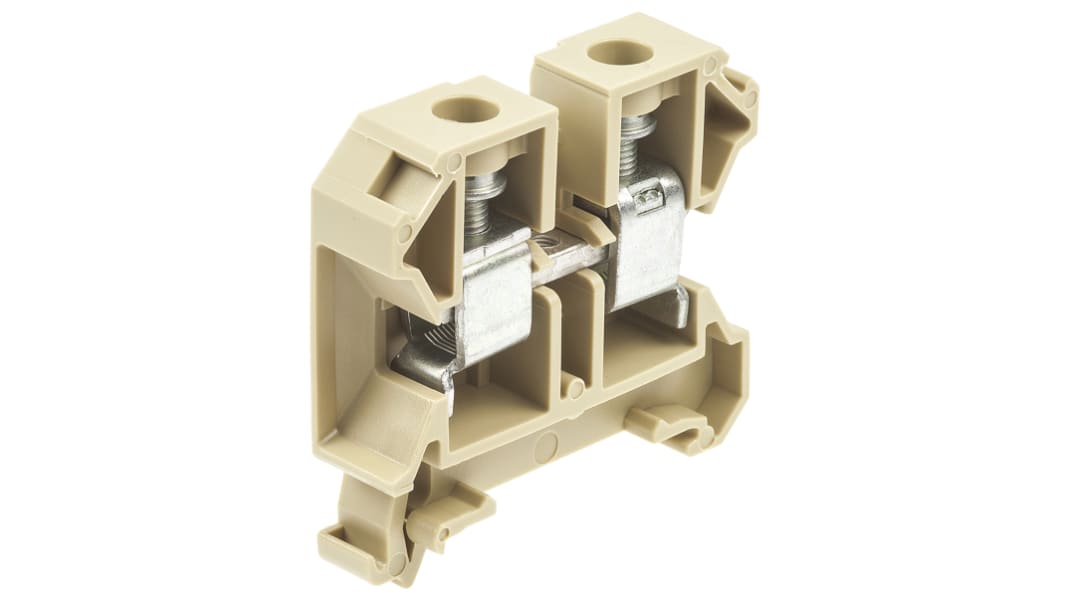

Weidmuller SAK Series Beige Feed Through Terminal Block, 16mm², Single-Level, Screw Termination, ATEX, IECEx

RS Stock No.:: 718-0998
Mfr. Part No.:: 0380660000
Brand:: Weidmüller

Technical data sheets (3)

Weidmuller SAK Series Beige Feed Through Terminal Block, 16mm², Single-Level, Screw Termination, ATEX, IECEx

View this category

20 In AU stock for next working day delivery

380 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 10)

$27.166

(exc. GST)

$29.883

(inc. GST)

Units	Per unit	Per Pack*
10 +	$27.166	$271.66

*price indicative

RS Stock No.:: 718-0998
Mfr. Part No.:: 0380660000
Brand:: Weidmüller

COO (Country of Origin):: DE

SAK TS35 Range

High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.

Features and Benefits

• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals

• Partitions available in both beige (RS 755-3725) and blue (RS 718-0914, RS 718-0923, RS 718-0926)

• Flammability class UL 94V-2

• Clamping yoke technology

Approvals

CSA certified, UL listed, NEMKO, ATEX, and IECEx

Weidmüller SAK Series Feed Through Terminal Block, 12 to 6 AWG, 76A Current Rating - 0380660000

This feed through terminal block from Weidmüller is designed with a current rating of 76A, making it suitable for a variety of applications. With a sleek beige colour, this terminal block is a reliable solution for electrical connections. The termination method using screws ensures a secure and stable connection for wires.

Features & Benefits

• Supports American Wire Gauge from 12 to 6 AWG for versatile applications
• Maximum operating temperature of +100 °C and minimum operating temperature of -60 °C for reliable performance in various environments
• Voltage rating of 1 kV for efficient electrical connections
• Single level setup for ease of use and installation

Applications

• Ideal for industrial automation systems
• Suitable for use in control panels
• Can be used for power distribution applications

Can it accommodate wire sizes ranging from 12 to 6 AWG?

Yes, this terminal block supports wires from 12 to 6 AWG, providing flexibility for different applications.

Will it operate in extreme temperatures?

With a minimum operating temperature of -60 °C and a maximum operating temperature of +100 °C, this terminal block is designed to perform reliably in varying conditions.

Is it suitable for high voltage applications?

Yes, this terminal block has a voltage rating of 1 kV, making it well-suited for high voltage connections.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Attribute	Value
Colour	Beige
Number of Levels	Single
Series	SAK
American Wire Gauge	12 → 6AWG
Termination Method	Screw
Cable CSA	16mm²
Current Rating	76A
Voltage Rating	1 kV
Minimum Operating Temperature	-50°C
Maximum Operating Temperature	+100°C
Hazardous Area Certification	ATEX, IECEx
Standards Met	IEC 60947-7-1
