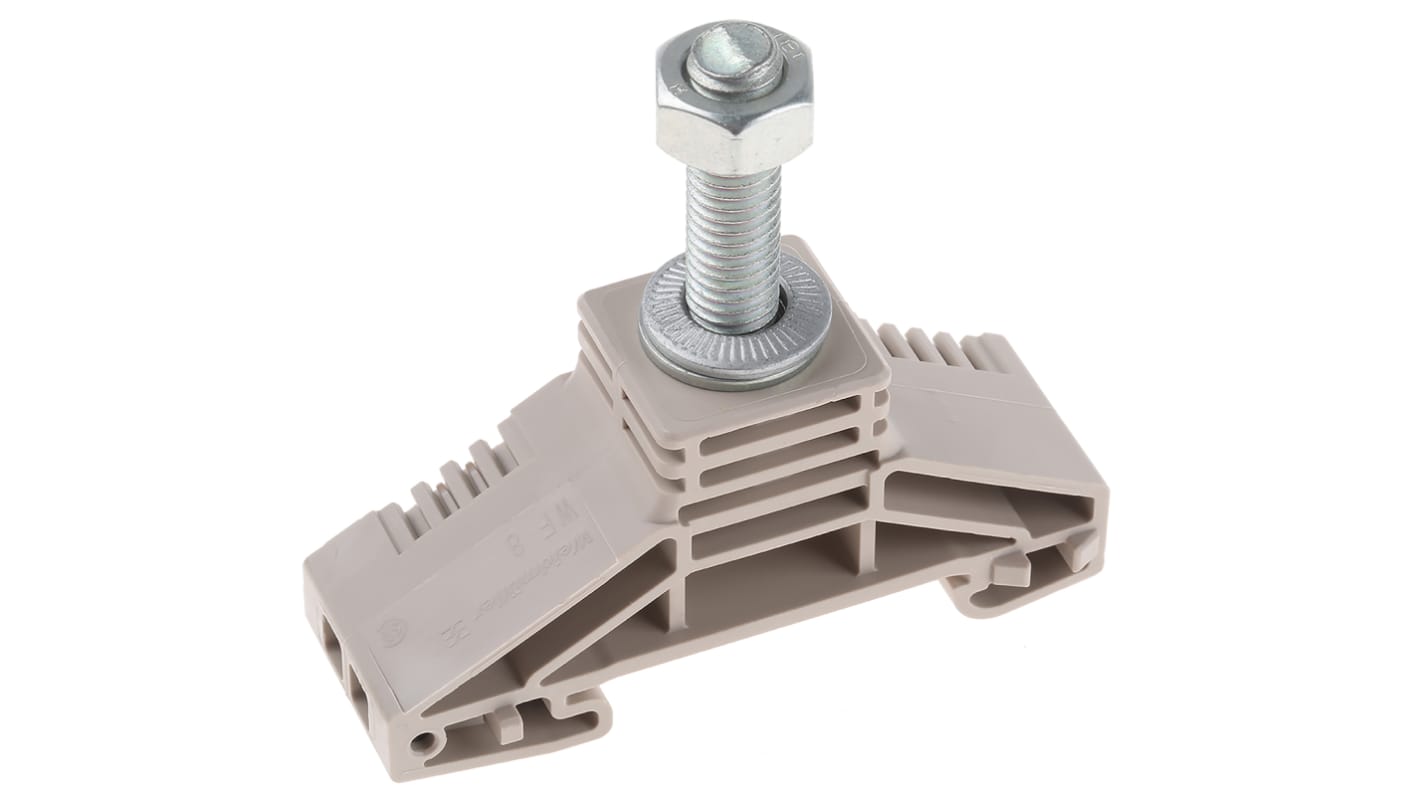

Weidmüller WF8 Series Brown Stud Terminal, 50mm², Single-Level, Bolt Termination
- RS Stock No.:
- 458-7703
- Mfr. Part No.:
- 1780860000
- Brand:
- Weidmüller
13 In AU stock for next working day delivery
39 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$70.74
(exc. GST)
$77.81
(inc. GST)
| Units | Per unit |
| 1 + | $70.74 |
- RS Stock No.:
- 458-7703
- Mfr. Part No.:
- 1780860000
- Brand:
- Weidmüller
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
Stud Terminals
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
Features and Benefits
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
Approvals
CSA; UL
Approvals
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
|---|---|
| Colour | Brown |
| Number of Levels | Single |
| Series | WF8 |
| American Wire Gauge | 14 → 0AWG |
| Termination Method | Bolt |
| Cable CSA | 50mm² |
| Voltage Rating | 1 kV |
| Current Rating | 150A |
