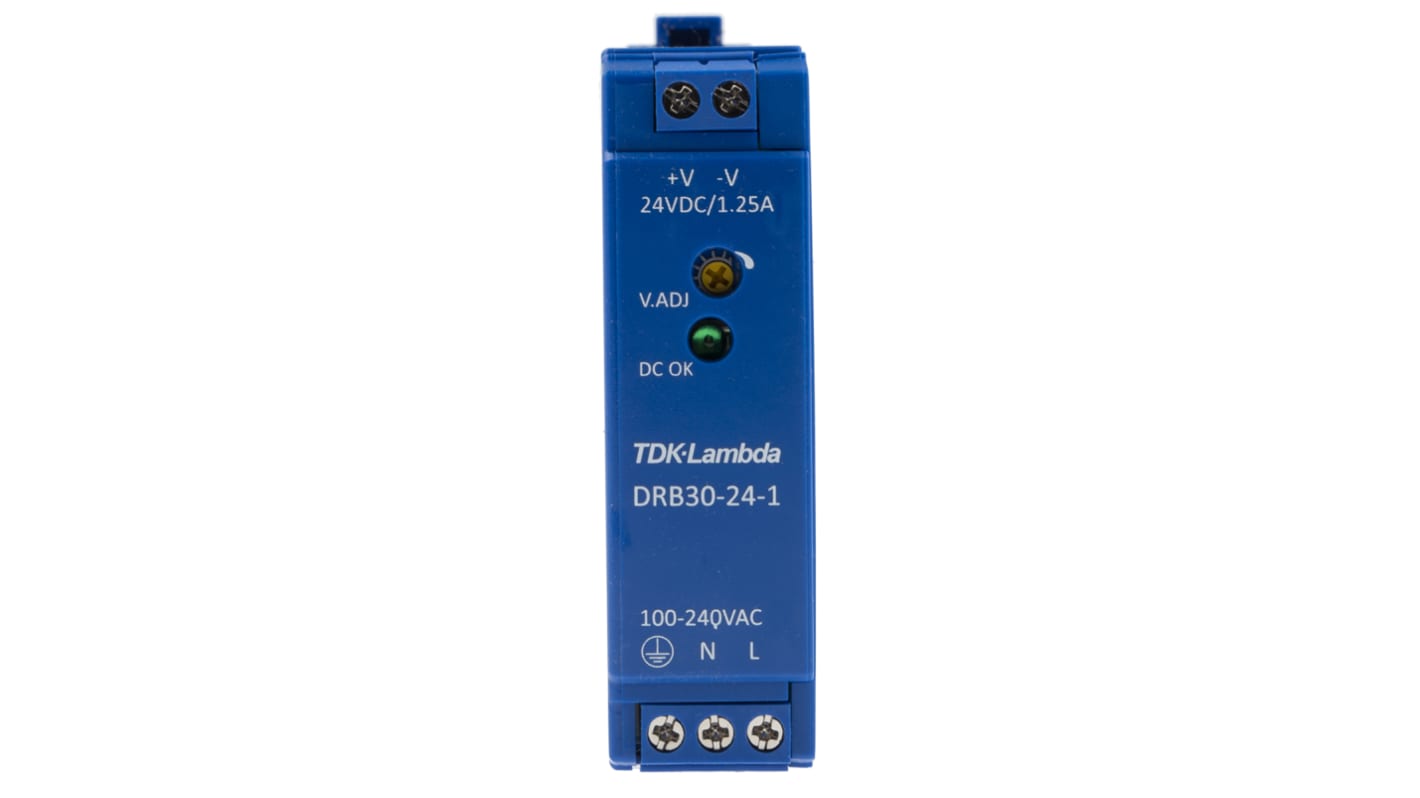

TDK-Lambda DRB Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 1.25A Output, 30W
- RS Stock No.:
- 815-3127
- Mfr. Part No.:
- DRB-30-24-1
- Brand:
- TDK-Lambda
On back order for despatch 24/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$74.98
(exc. GST)
$82.48
(inc. GST)
| Units | Per unit |
| 1 - 4 | $74.98 |
| 5 + | $73.41 |
- RS Stock No.:
- 815-3127
- Mfr. Part No.:
- DRB-30-24-1
- Brand:
- TDK-Lambda
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
TDK-Lambda DIN Rail Power Supply
The TDK-Lambda DRB series switch-mode DIN-rail power supply have 1.25A output current at 24VDC output voltage. Its most outstanding features are compact size and energy efficiency. This power supply has a universal single-phase input voltage rating ranging between 85VAC and 264VAC with adjustable output voltage. Its high immunity makes it suitable for almost every situation. The adjustable output voltage ranges between 24VDC and 28VDC
Features and Benefits
Easy system integration
High efficiency up to 90%
LED indicator
Operation temperature ranges between -20°C and 70°C
Power rating is 30W
Ripple factor and noise is 40mV
High efficiency up to 90%
LED indicator
Operation temperature ranges between -20°C and 70°C
Power rating is 30W
Ripple factor and noise is 40mV
Applications
Broadcasting
Factory automation
general-purpose industrial applications
Process control
Renewable energy
Test and measurement
Factory automation
general-purpose industrial applications
Process control
Renewable energy
Test and measurement
Certifications
CISPR22 class B
CSA
EN60950
UL approved
CSA
EN60950
UL approved
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 1.25A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 30W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 75mm |
| Width | 75mm |
| Depth | 90mm |
| Series | DRB |
| Ripple And Noise | 40mV |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
| Mounting Type | DIN Rail Mount |
| Load Regulation | 240mV |
