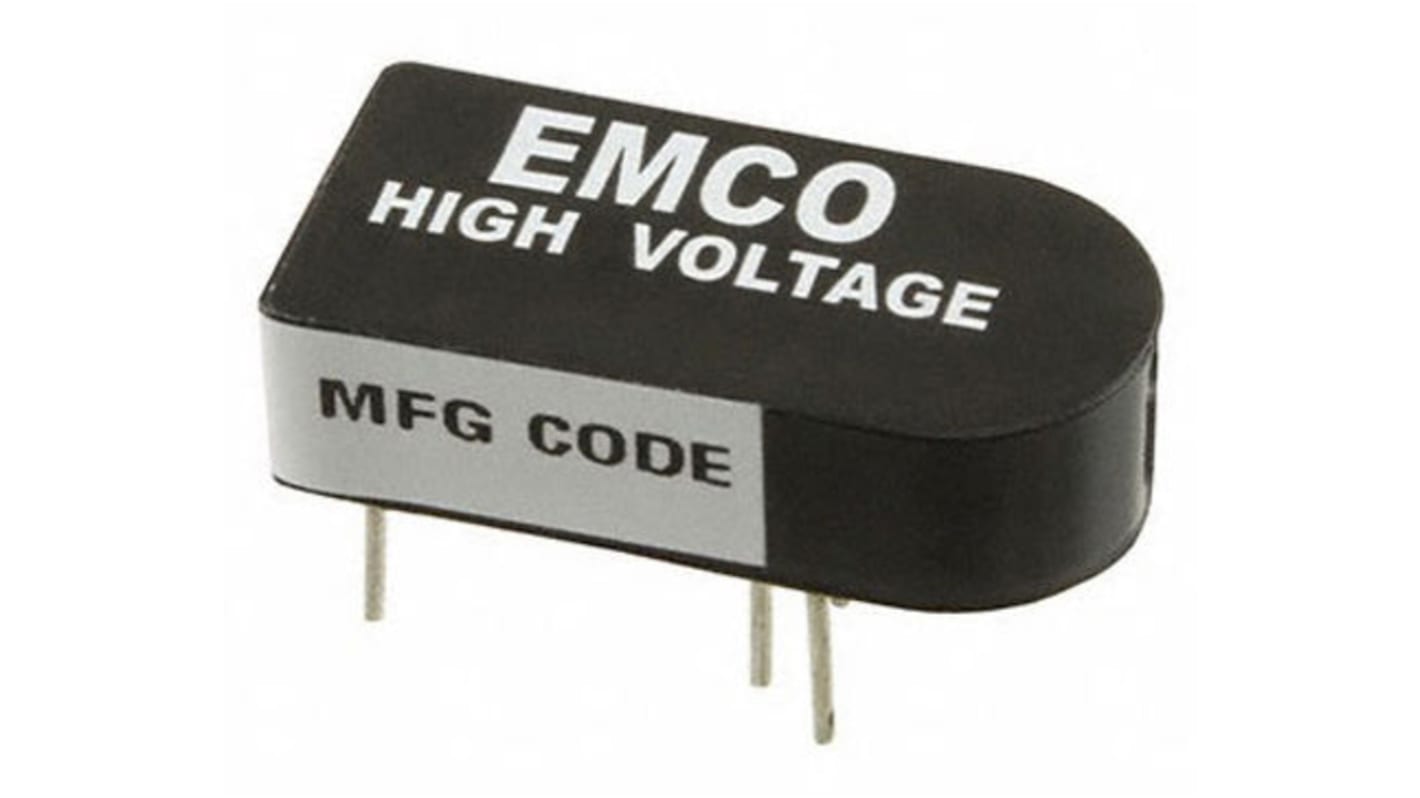

XP Power AH DC-DC Converter, 500V dc/ 3mA Output, 0 → 12 V dc Input, 1.5W, Through Hole, +75°C Max Temp -25°C

RS Stock No.:: 123-8342
Mfr. Part No.:: AH05N-12
Brand:: XP Power

XP Power AH DC-DC Converter, 500V dc/ 3mA Output, 0 → 12 V dc Input, 1.5W, Through Hole, +75°C Max Temp -25°C

On back order for despatch 30/07/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$213.17

(exc. GST)

$234.49

(inc. GST)

Units	Per unit
1 - 4	$213.17
5 - 9	$206.76
10 - 24	$200.38
25 - 49	$196.13
50 +	$191.88

RS Stock No.:: 123-8342
Mfr. Part No.:: AH05N-12
Brand:: XP Power

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: US

Product Details

XP Power Isolated DC to High Voltage DC Converters A Series

The A Series power isolated DC to high voltage DC converters are ultra miniature. These converters are ideal for applications where minimal size and weight are required.

Features and Benefits

Input/Output proportional
Quasi-sinewave Oscillator
Control Pin
Current - Low leakage
Low Output/Input Capacitance
Galvanic Input to Output isolation
1 minute minimum short circuit protection
No minimum load required ²
External componenents not required

Applications

Avalanche photodiodes
Capacitor charging
Electrophoresis
Photomultiplier tubes
Piezo Devices
Mass spectrometry
Sustaining Ion pumps

Standards

UL, RoHS

Isolated DC to High Voltage DC Converters

Specifications

Attribute	Value
Output Voltage	500V dc
Input Voltage Range	0 → 12 V dc
Power Rating	1.5W
Input Voltage Nominal	12 V dc
Output Current	3mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±10%
Isolation Voltage	500V
Length	23.37mm
Width	11.43mm
Series	AH
Minimum Temperature	-25°C
Maximum Temperature	+75°C
